28 Service Manual
4 Parts Disassembly
The ultrasound system consists of the LCD display, monitor arm, touch screen assembly, key panel,
pneumatic spring, main board, hard disk, ultrasound unit, power supply and DVD drive.
Tools includes,
one cross screwdriver (M3-M5)
one short-handled screwdriver (shorter than 100mm )
one set of hex key wrench (including 3mm, 4mm, 5mm, 6mm, 10mm)
one snap ring pliers
4.1 LCD Monitor Disassembly
One cross screwdriver is needed during the monitor disassembly.
Perform the following steps,

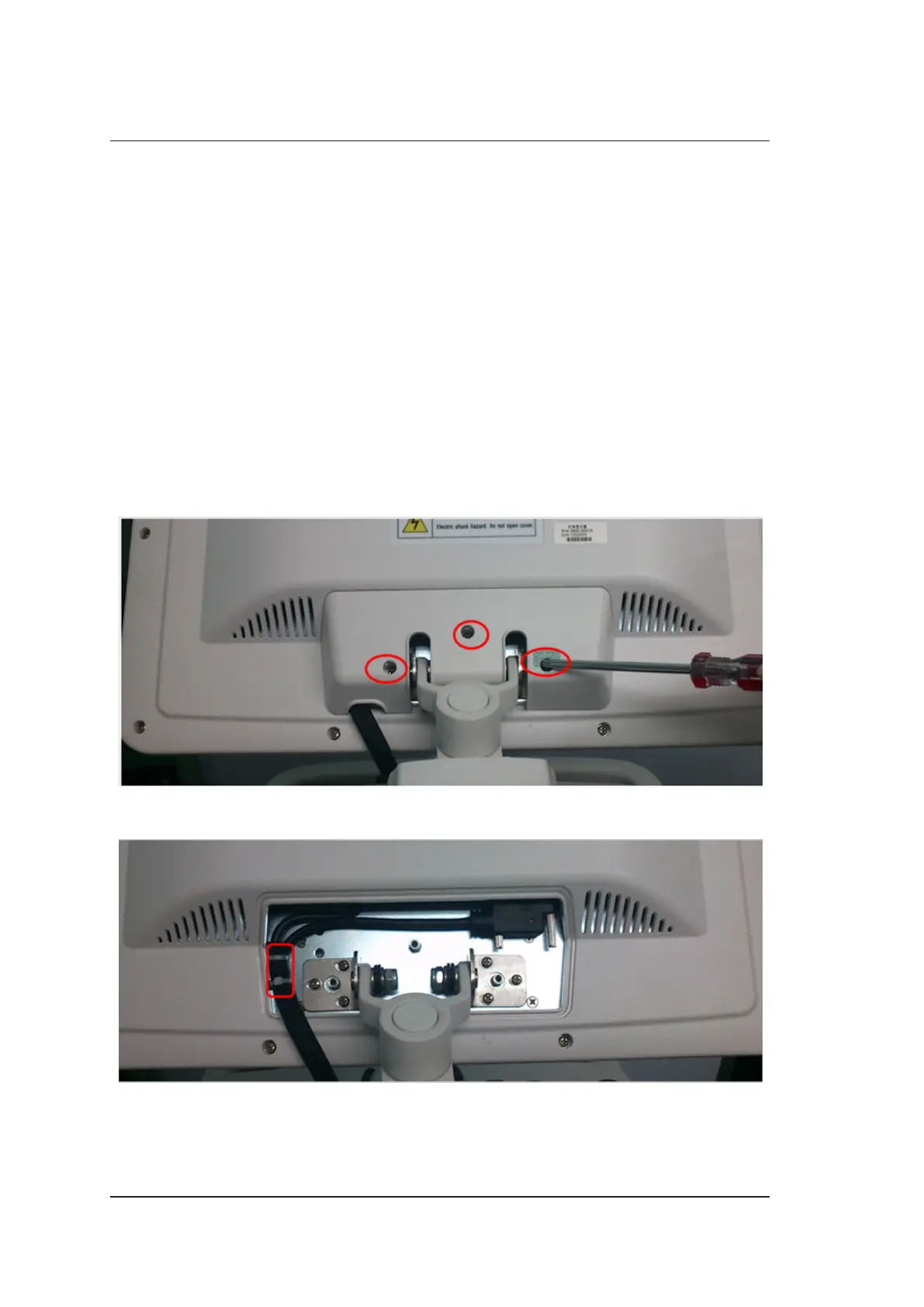

1. Use the cross screwdriver to remove three screws and take out the hinge cover.
2. Cut off the binding strap and pull out the display connection cables.
