Sonoscape S30 - Pin Connection; Display Power Cable; Display DVI Signal Cable

60 Service Manual
5 Pin Descriptions
5.2 Pin Connection

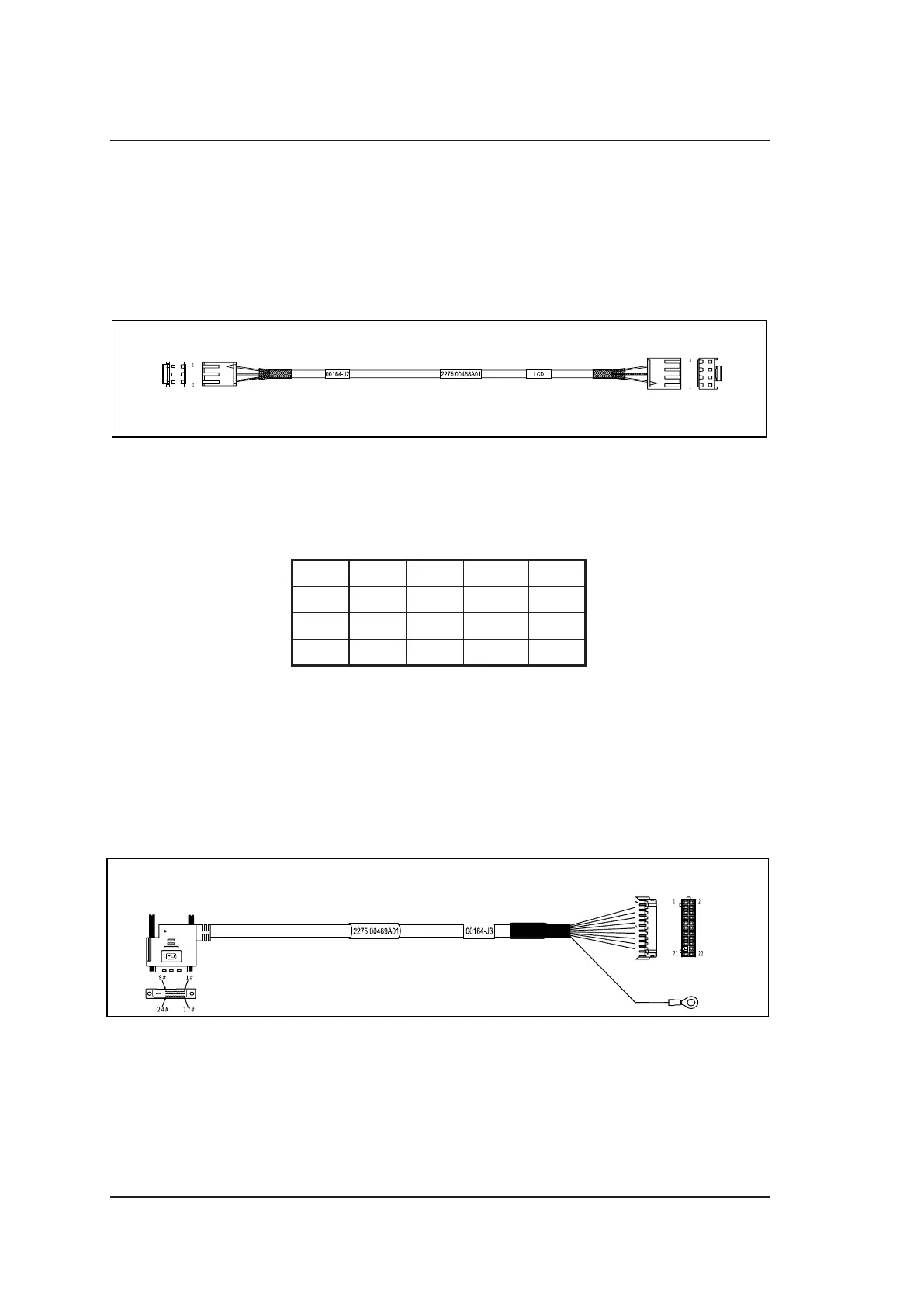

5.2.1 Display Power Cable
P/N: 2275.00468
Cable Material:
To Display
CN1
CN2
To Monitor Arm Conversion Board
7500.00164 (J2)
Figure 5-2 Display Power Cable
Pins:
Table 5-2 Display Power Cable Pins
Signal 12V GND GND 5V
Color Brown Blue Shielded NA
CN1 1 4 3
CN2 1 2 3
Instructions:
Connect CN1 to display, and connect CN2 to DVI conversion board 7500.00164 (J2).
5.2.2 Display DVI Signal Cable
P/N: 2275.00469
Cable Material:
To Display DVI Interface
To Monitor Arm Conversion Board
7500.00164 (J3)
CN1
CN2
CN3
Figure 5-3 Display DVI Signal Cable
