49
Service Manual
4 Parts Disassembly
4.9 Power Supply Disassembly
One screwdriver and one hex key wrench (3mm) are needed during the power supply disassembly.
Perform the following steps,
1. Disassemble the hard disk. For details, refer to Section 4.8 Hard Disk Disassembly.

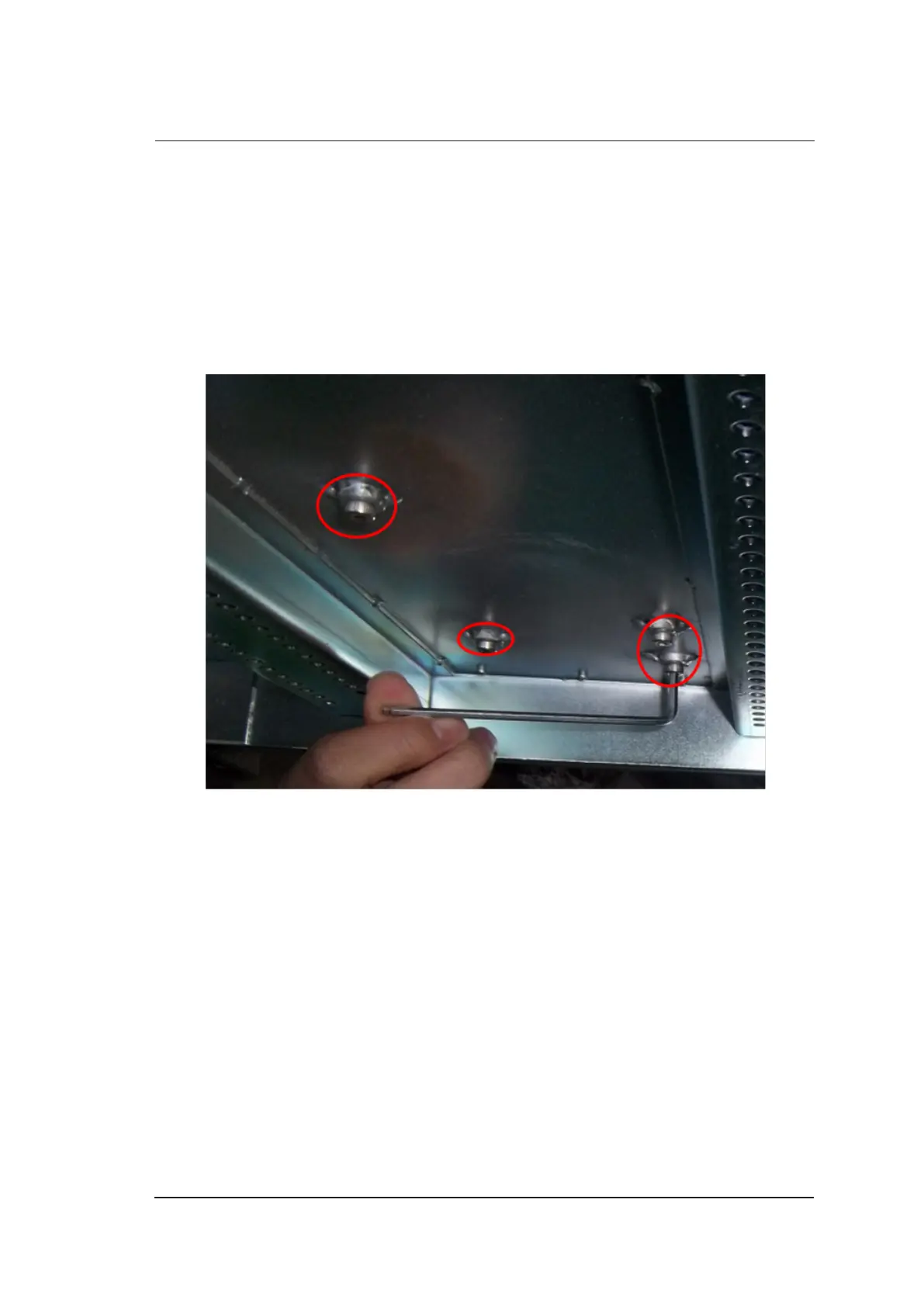

2. Use the hex key wrench (3mm) to remove four hex screws from the ultrasound system.
The four hex screws are on the back and hard to be seen in a front view. You have to locate the
four screws with your hand when removing them.
To Next Page
