50 Service Manual
4 Parts Disassembly

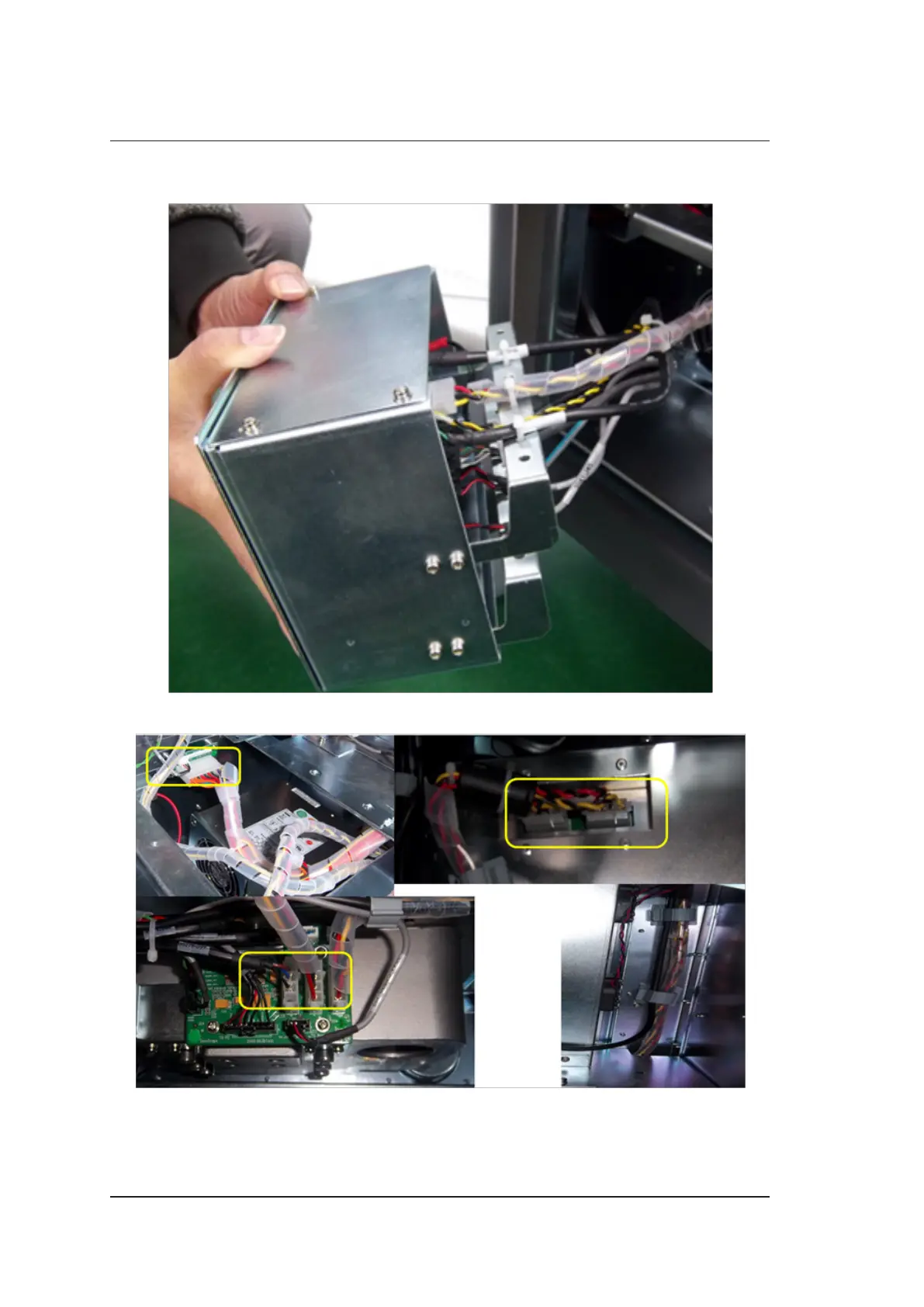

3. Take out the I/O assembly without removing cables or wires.
4. Pull out all connection cables of power supply modules.
