51
Service Manual
4 Parts Disassembly

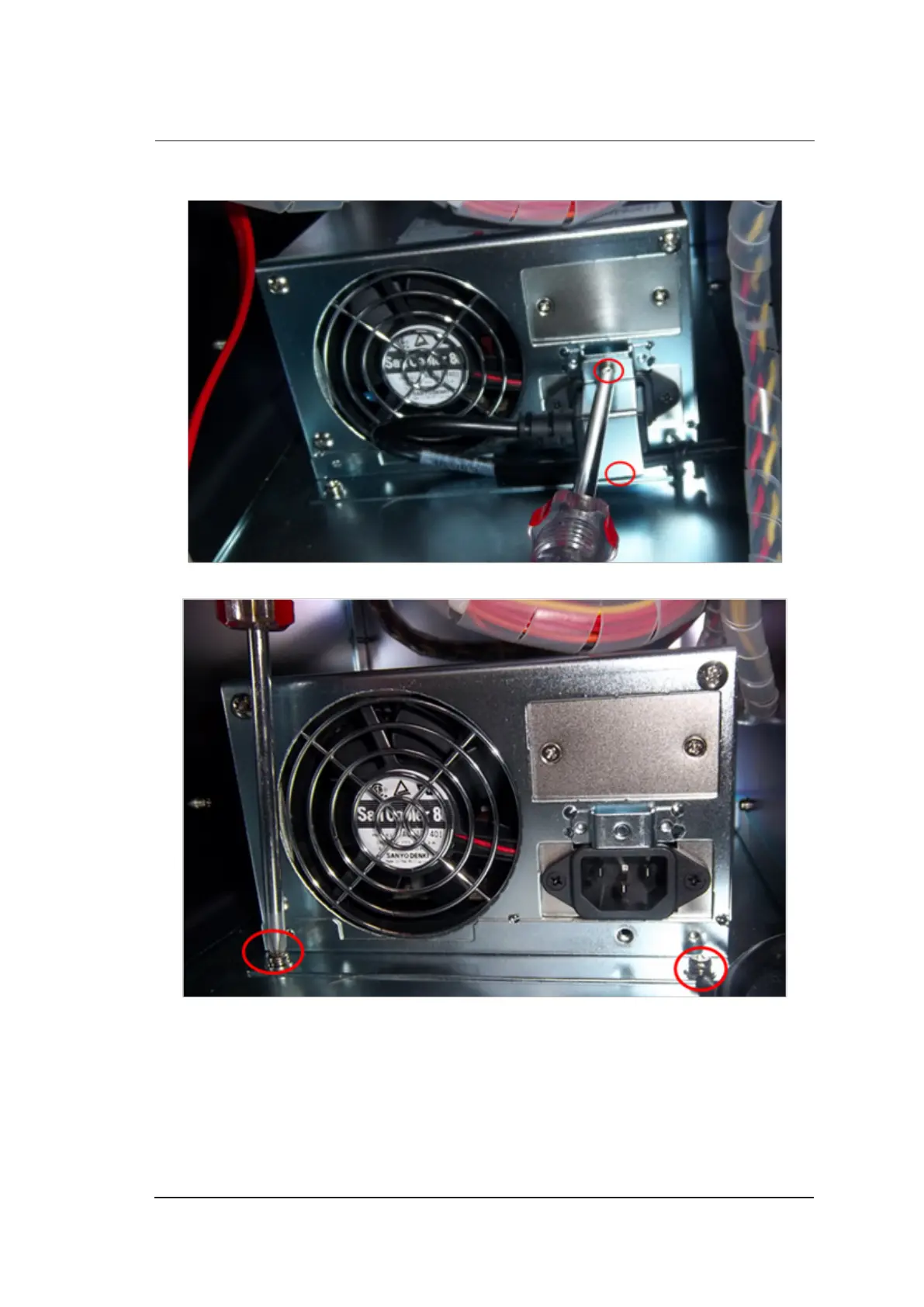

5. Use the screwdriver to remove two screws.
6. Pull out the power supply conversion cable, remove two screws to take out the power supply.
