5 Pin Descriptions
5.2.24 Dual USB Transmission Cable
P/N: 2275.00465
Cable Material:
To PC Main Board 2100.00302 (USB5/6) To I/O board 7500.3041 (J41)
CN1
CN2
CN3
CN4
1 Red
2 White
3 Green
4 Black
5 Red
6 White
7 Green
8 Black

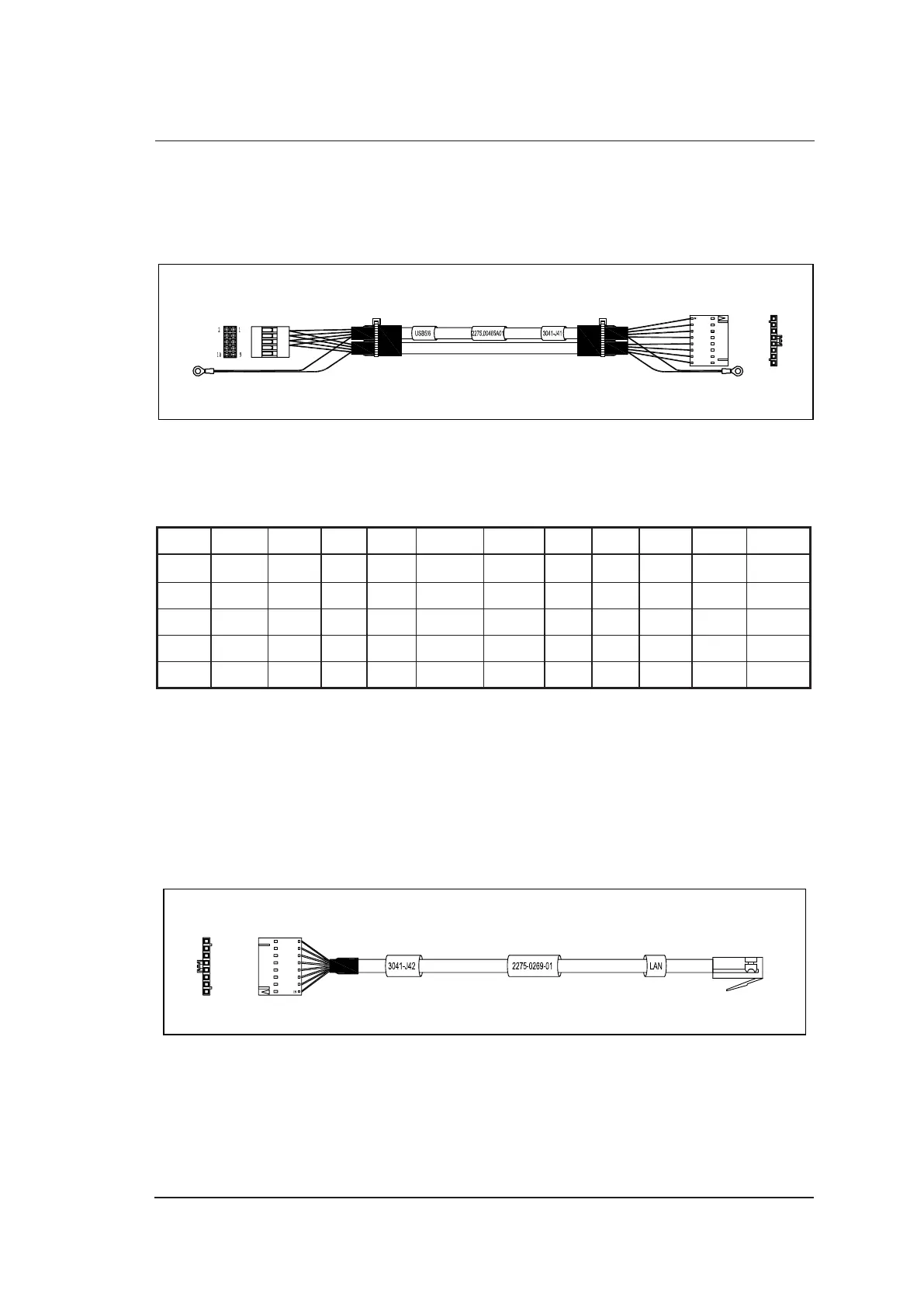

Figure 5-25 Drive Signal Cable
Pins:
Table 5-24 Peripheral Dual USB Cable
Pins
Signal VBUS1 D1- D1+ GND N/C VBUS2 D2- D2+ GND N/C GND
Color Red White Green Black Red White Green Black Shielded
CN1 1 3 5 7 9 2 4 6 8 10
CN2 Shielded
CN3 1 2 3 4 5 6 7 8
CN4 Shielded
Instructions:
Connect CN1 to PC main board 2100.00302 (USB5/6), CN2 to PC main board grounding, CN3 to I/
O board 7500.3041 (J41), and CN4 to I/O board grounding.
5.2.25 Network Signal Cable
P/N: 2275.026901
Cable Material:
To IO Board 7500-3041-03 (J42)
To PC Main Board Net Port
CN1
CN2
8 Brown/White
7 Green/White
6 Blue/White
5 Orange/White
4 Brown
3 Green
2 Blue
1 Orange
Figure 5-26 Network Signal Cable
