Sonoscape S30 - SATA Drive Power Cable; Footswitch Signal Cable

79
Service Manual
5 Pin Descriptions
Instructions:
Connect CN1 to KEAA board 7500.00279 (J25).
5.2.31 SATA Drive Power Cable
P/N: 2275.00539
Cable Material:
To Hard Disk Power Cable To KEAA Board 7500.00279 (J28)
CN2
CN1

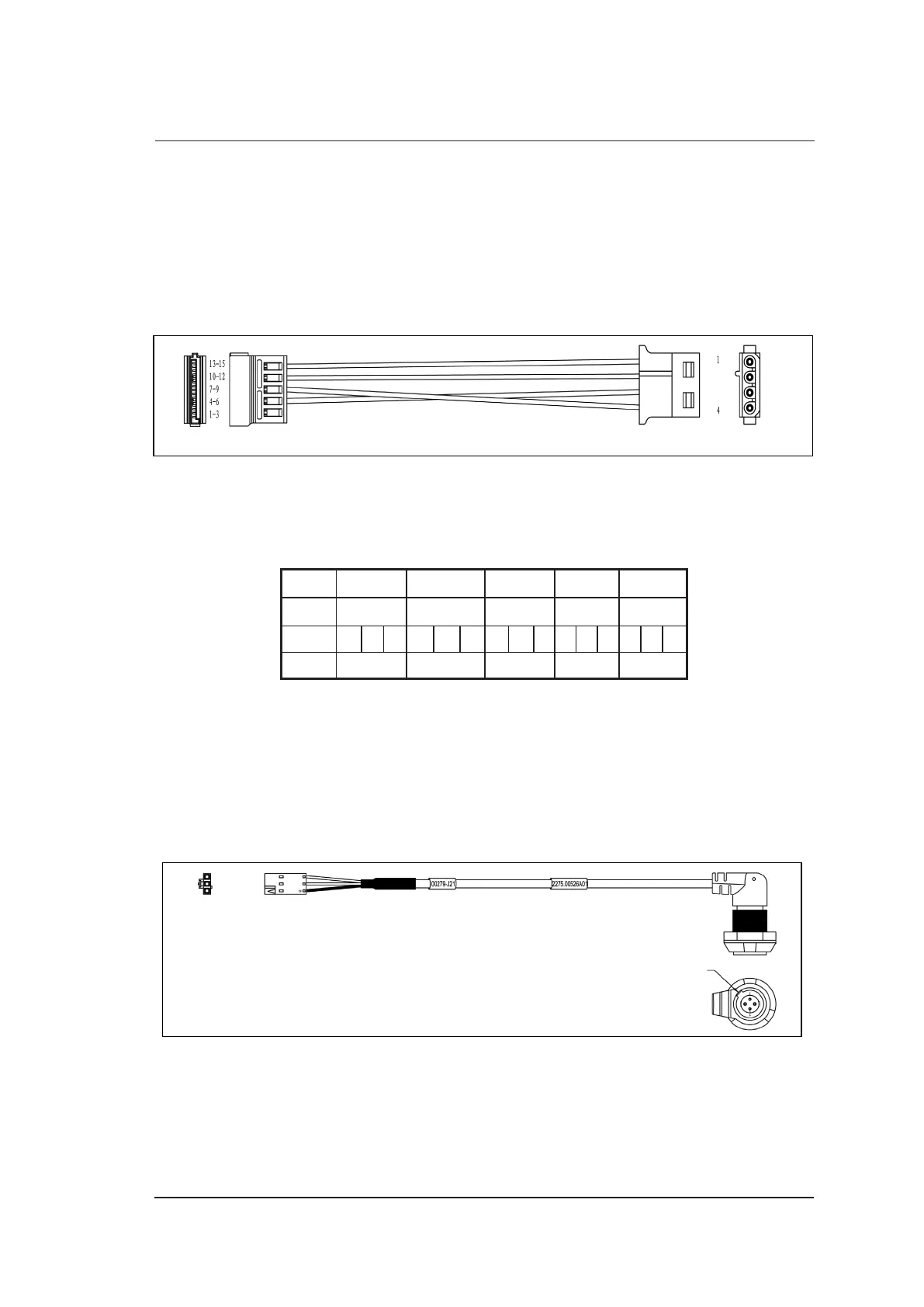

Figure 5-32 SATA Drive Power Cable
Pins:
Table 5-31 SATA Drive Power Cable Pins
Signal
12V GND VCC GND 3.3V
Color
Yellow Black Red Black NA
CN1 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
CN2 1 2 3
Instructions:
Connect CN1 to hard disk, and connect CN2 to KEAA board 7500.00279 (J28).
5.2.32 Footswitch Signal Cable
P/N: 2275.00526
Cable Material:
To KEAA Board 7500.00279 (J21)
CN1 CN2
3 Black
2 Red
1 Shielded
Align nick to the angle
Figure 5-33 Footswitch Signal Cable
