Sonoscape S30 - S Terminal Signal Cable; HDMI Signal Cable

71
Service Manual
5 Pin Descriptions
5.2.18 S Terminal Signal Cable
P/N: 2275.00014
Cable Material:
To PC Main Board
2101.0008 (S Terminal)
To IO Board
7500.3042 (J74)
CN1
CN2
1 Shielded
2 Shielded
3 Red
4 White
4 White
3 Shielded
2 Red
1 Shielded

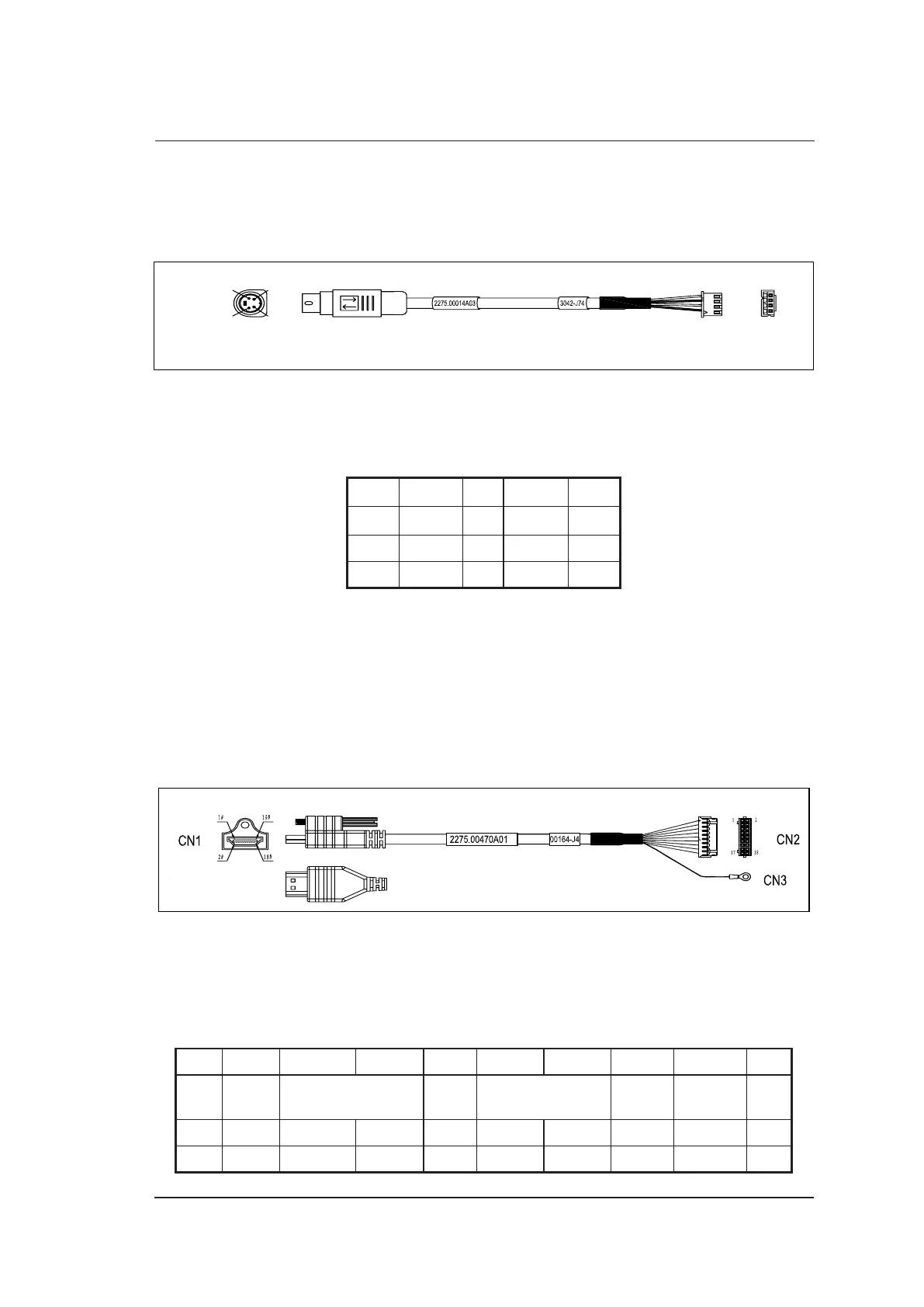

Figure 5-19 S Terminal Signal Cable
Pins:
Table 5-18 S Terminal Signal Cable
Pins
Signal GND AY GND AC
Color Shielded Red Shielded White
CN1 1 3 2 4
CN2 1 2 3 4
Instructions:
Connect CN1 to PC main board 2100.00302 (S terminal), and connect CN2 to IO board 7500.3042
(J74).
5.2.19 HDMI Signal Cable
P/N: 2275.00470
Cable Material:
To Arm Coversion Board
7500.00164 (J4)
To PC Main Board
2100.00302 (HDMI Interface)
Figure 5-20 HDMI Signal Cable
Pins:
Table 5-19 HDMI Signal Cable Pins
Signal GND DATA0- DATA0+ GND DATA2- DATA2+ GND
HPTLG +5V
Color
White/
Brown
Twisted White and
Brown Cables
White/
Red
Twisted White and
Red Cables
White/
Blue
Purple Red
CN1 8 9 7 2 3 1
11 19 18
CN2 5 1 3 17 13 15
2 14 18
