4 Parts Disassembly

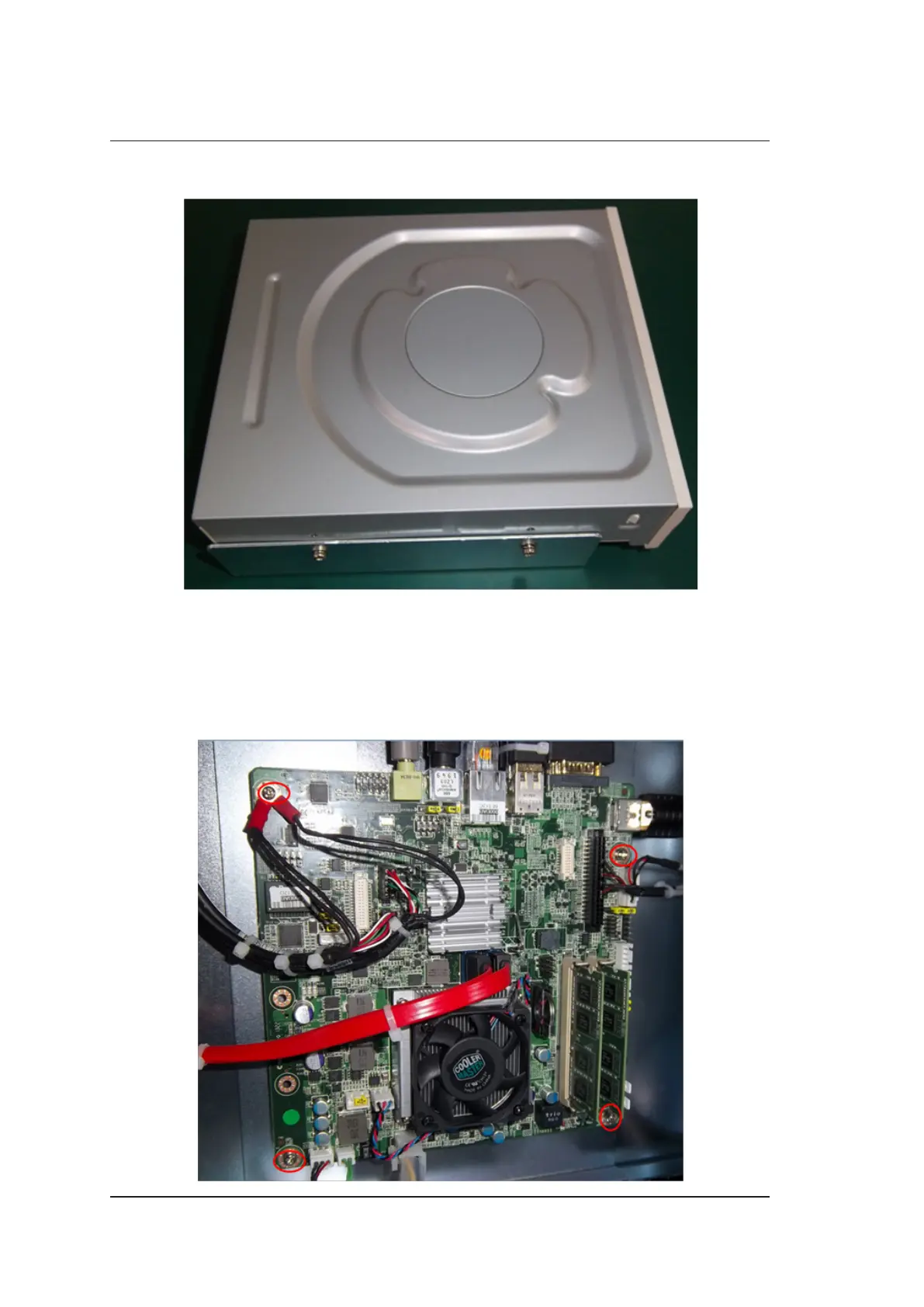

The disassembled DVD drive is as shown in the following figure.
4.7 Main Board Disassembly
One screwdriver is needed during the main board disassembly.
Perform the following steps,
1. Disassemble the back cover. For details, refer to Section 4.5.2 Back Cover Disassembly.
2. Pull out all connection cables and remove four screws to take out the main board.
