Sonoscape S30 - Audio Output Cable

82 Service Manual
5 Pin Descriptions
5.2.36 Audio Output Cable
P/N: 2275.025802
Cable Material:
To IO Board 7500-3041-03 (J44)
3 Red
2 Black/White
1 Shielded
CN1
CN2
1 Red
2 Black/White
3 Shielded

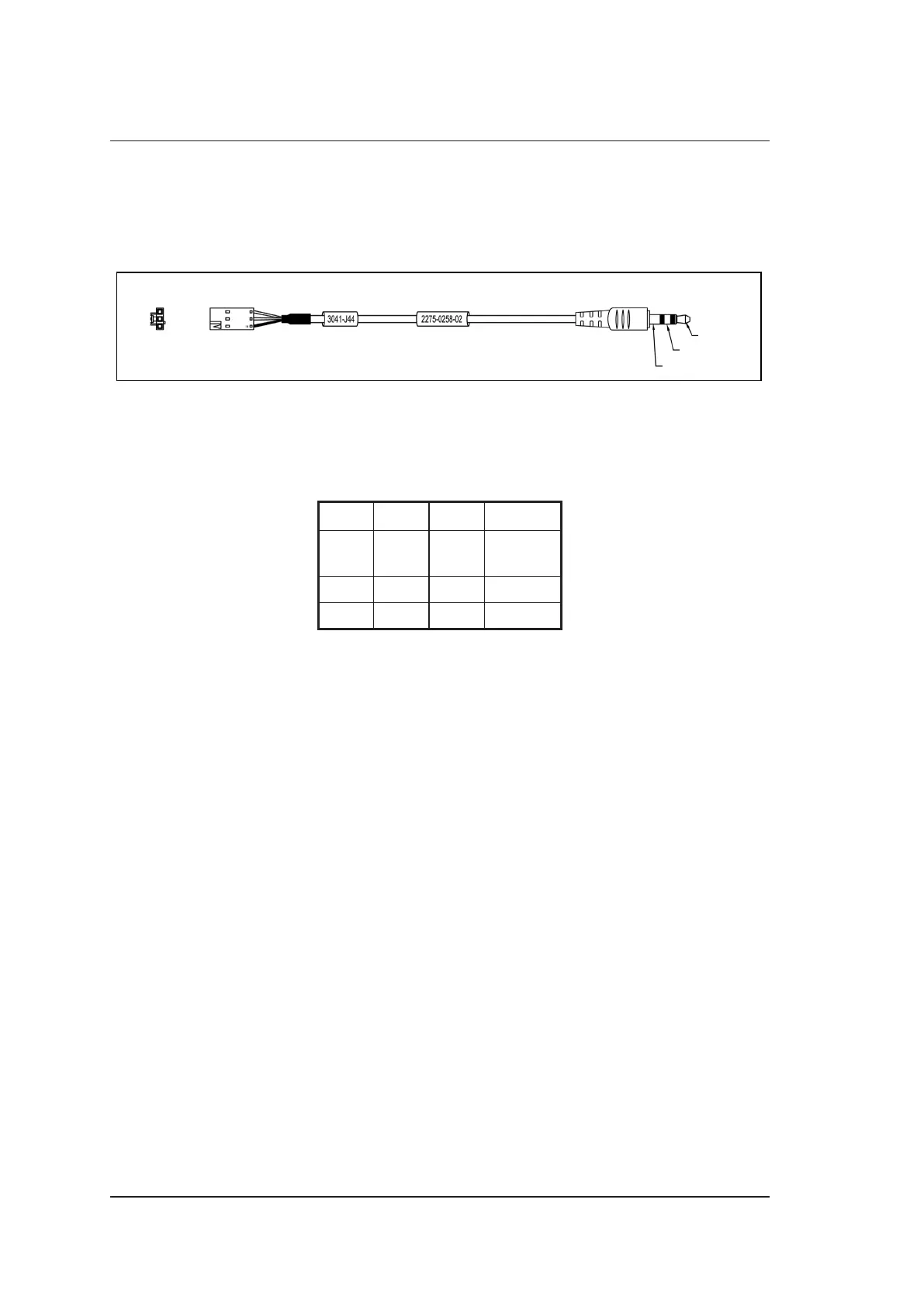

Figure 5-37 Audio Output Cable
Pins:
Table 5-36 Audio Output Cable Pins
Signal
R L GND
Color
Red
Black/
Red
Shielded
CN1 3 2 1
CN2 1 2 3
Instructions:
Connect CN1 to IO board 7500.3041 (J44).
