5.2.27 Back Plane Fan Conversion Cable
P/N: 2275.026103
Cable Material:
To IO Board 7500-3042 (J75)
To Back Plane Fan Cable (CN1)
CN1
CN2
1 Black
2 Red
1 Red
2 Black
3 NA
4 NA

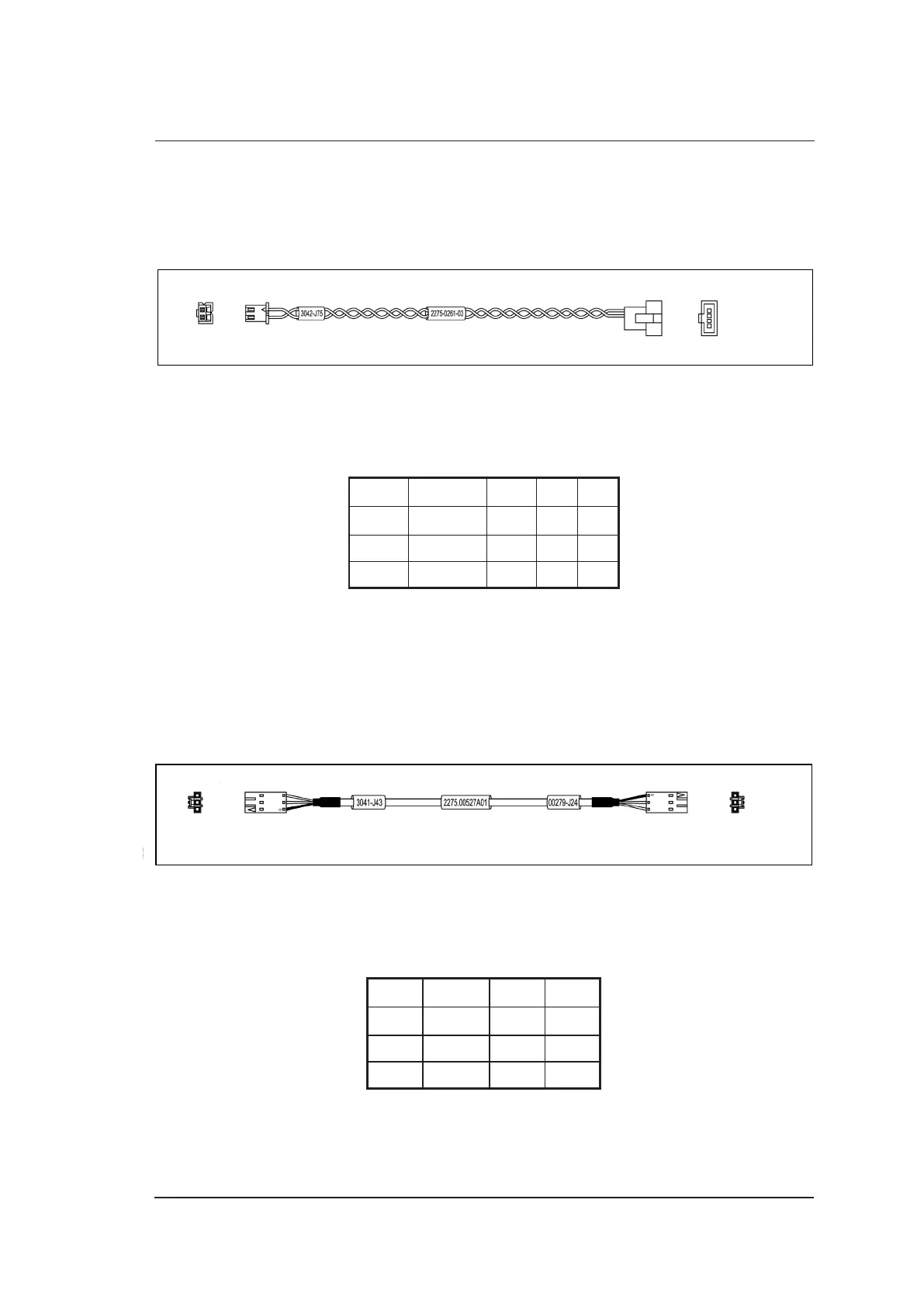

Figure 5-28 Back Plane Fan Conversion Cable
Pins:
Table 5-27 Back Plane Fan Conversion Cable Pins
Signal +12V GND
Color Yellow Black NA NA
CN1 2 1
CN2 1 2 3 4
Instructions:
Connect CN1 to IO board 7500.3042 (J75), and connect CN2 to back plane fan cable.
5.2.28 Audio Signal Conversion Cable
P/N: 2275.00527
Cable Material:
To IO Board 7500.3341 (J43) To KEAA Board 7500.00279 (J24)
CN1 CN2
3 Red
2 Black
1 Shielded
1 Shielded
2 Red
3 Black
Figure 5-29 Audio Signal Conversion Cable
Pins:
Table 5-28 Audio Signal Conversion Cable
Pins
Signal GND R L
Color Shielded Red Black
CN1 1 3 2
CN2 1 2 3
Instructions:
Connect CN1 to IO board 7500.3041 (J43), and connect CN2 to KEAA board 7500.00279 (J24).
