Service Manual
5 Pin Descriptions
Pins:
Table 5-34 Pencil Probe Signal Cable Pins
Signal
TX GND IDOE GND RX GND Reserved GND
Color
White Shielded Black Shielded Red Shielded Green Shielded
CN1 1 2 3 4 5 6 7 8
CN2 1 2 3 4 5 6 7 8
Instructions:
Connect CN1 to probe board 7500.00163 (J3).
5.2.35 Display Power Conversion Cable
P/N: 2275.00494
Cable Material:
To Monitor Board Board 7500.00164 (J1)
To KEAA Bord 7500.00279 (J27)
1 Brown
2 Shielded
3 Blue
CN1
CN2
1 Brown
2 Blue
3 Shielded
4 NA

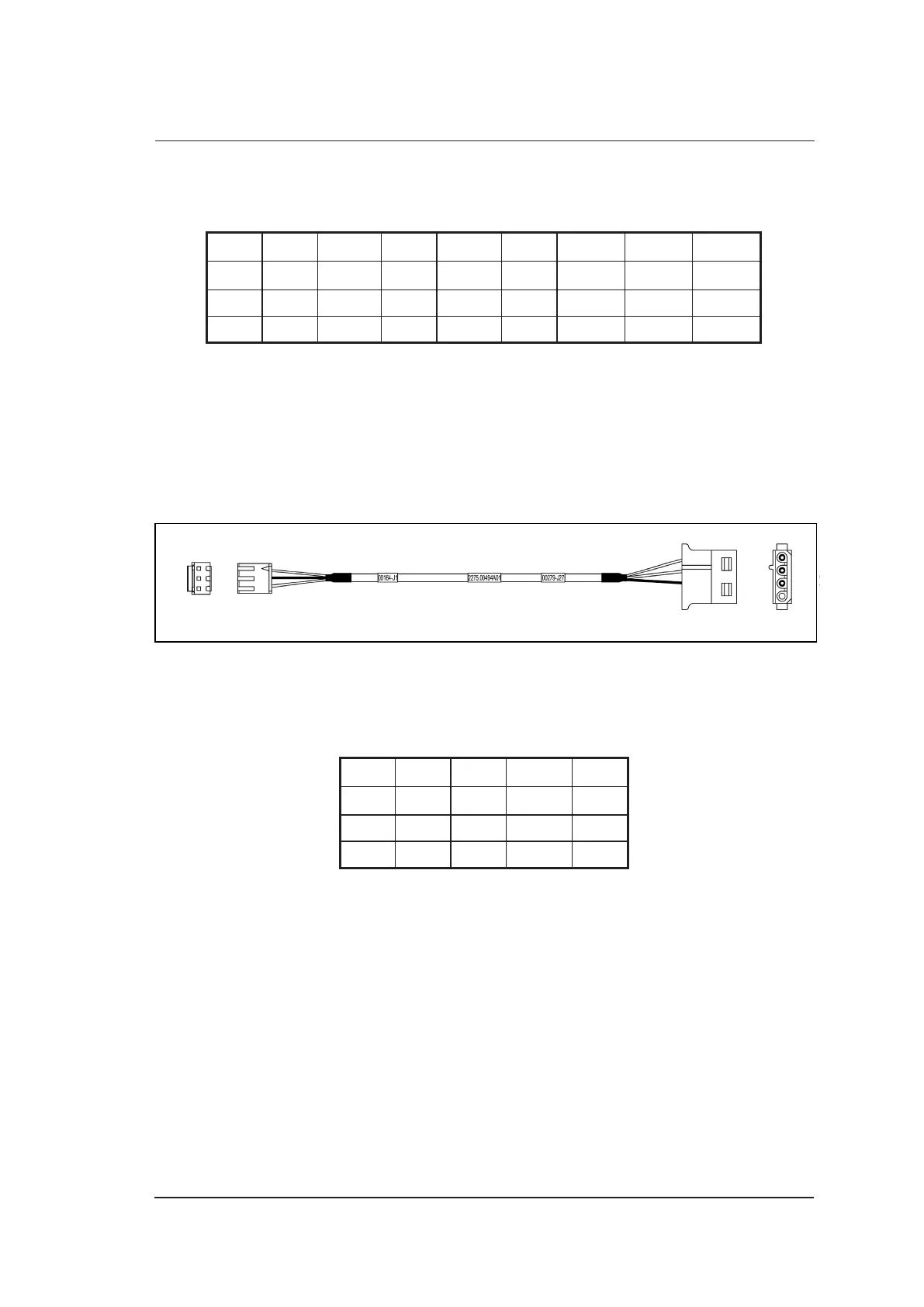

Figure 5-36 Display Power Conversion Cable
Pins:
Table 5-35 Display Power Conversion Cable Pins
Signal
+12V GND GND 5V
Color
Brown Blue Shielded NA
CN1 1 3 2
CN2 1 2 3 4
Instructions:
Connect CN1 to monitor arm board 7500.00164 (J1), and connect CN2 to KEAA board 7500.00279
(J27).
