Service Manual
5 Pin Descriptions
5.2.11 LED Indicator Control Signal Cable
P/N: 2275.00491
Cable Material:
CN1
CN2
1 Red
2 Black
To Key Panel 7500.00291 (J9)

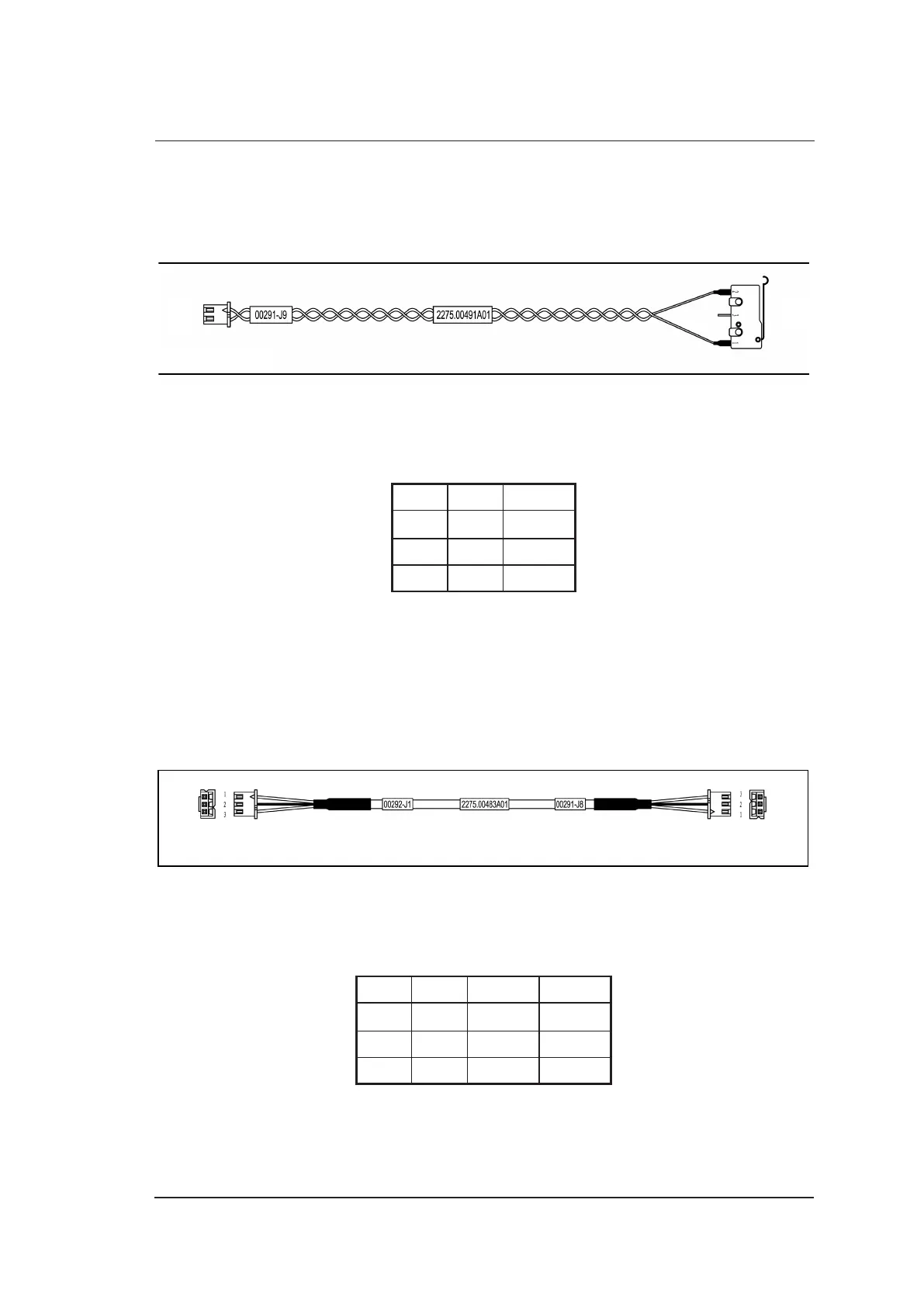

Figure 5-12 LED Indicator Control Signal Cable
Pins:
Table 5-12 LED Indicator Control Signal Cable
Pins
Signal +5V 5VLED
Color Red Black
CN1 1 2
CN2 1 2
Instructions:
Connect CN1 to keyboard 7500.00291 (J9).
5.2.12 LED Indicator Cable
P/N: 2275.00483
Cable Material:
To LED Indicator Board
7500.00292 (J1)
To Key Panel
7500.00291(J8)
CN1
CN2
Figure 5-13 LED Indicator Cable
Pins:
Table 5-13 LED Indicator Cable
Pins
Signal
+5V GND
CTR
Color Red Shielded Black
CN1 3 2
1
CN2 1 2
3
Instructions:
Connect CN1 to LED board 7500.00292 (J1), and connect CN2 to key panel 7500.00291 (J8).
