34 Service Manual
4 Parts Disassembly
4. Pull out all connection cables from the touch screen and take out the touch screen assembly.

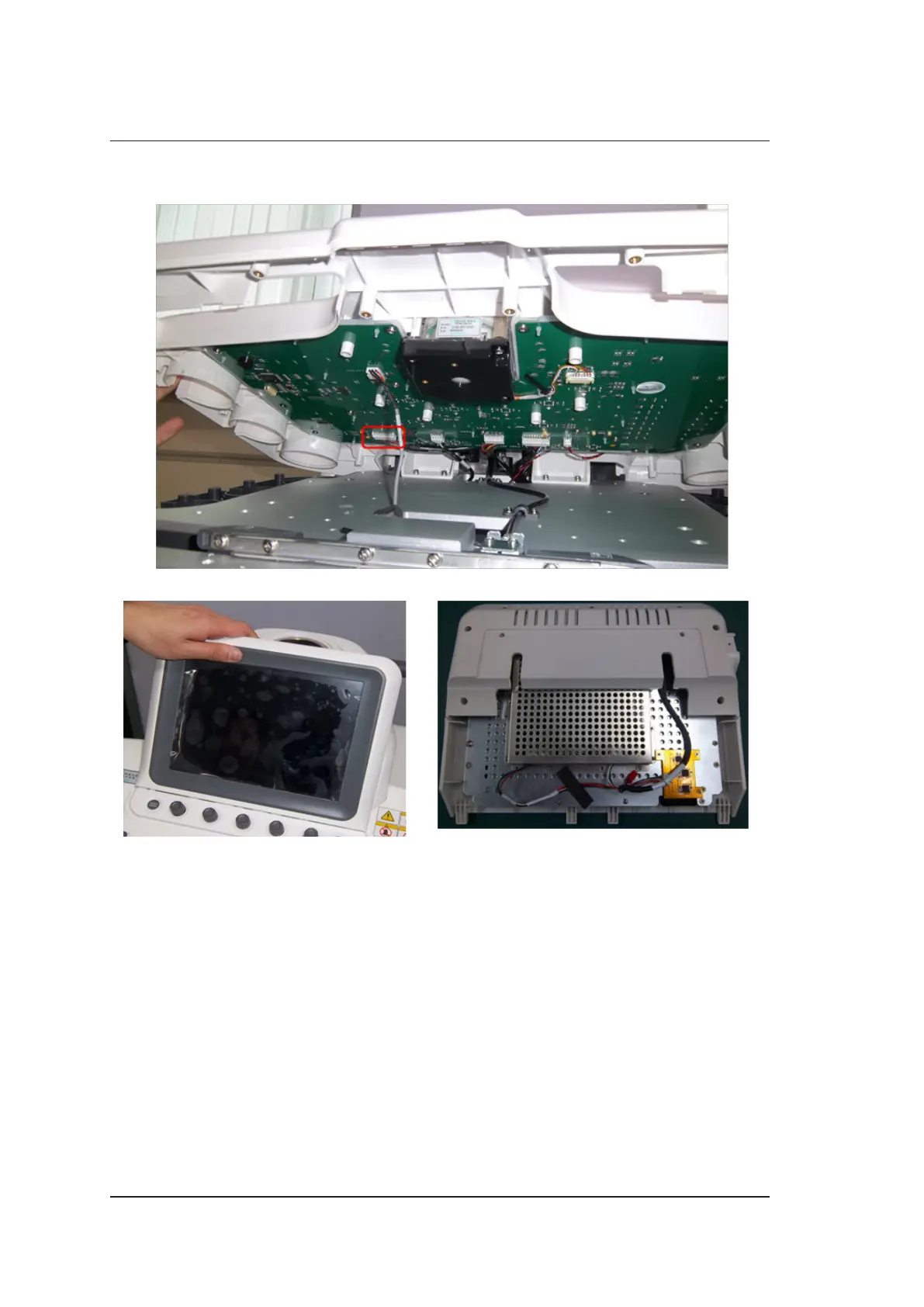

The disassembled touch screen is as shown in the following figures.
