54 Service Manual
4 Parts Disassembly
5. Pull out all connection cables to take out the ultrasound unit.

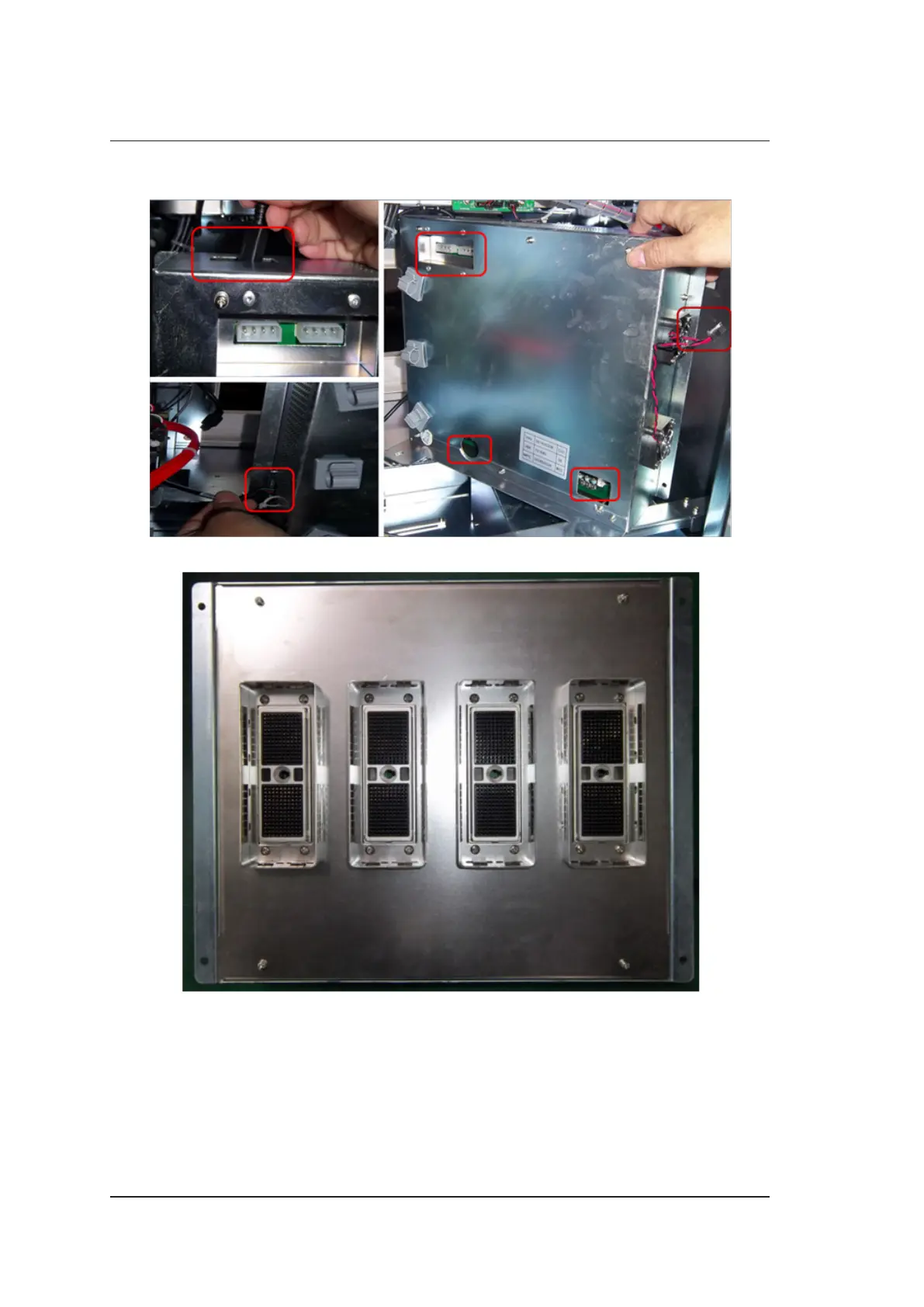

The disassembled ultrasound unit is as shown in the following figure.
