14215700-IG, Edition 15.0
May 2020, Original document
110

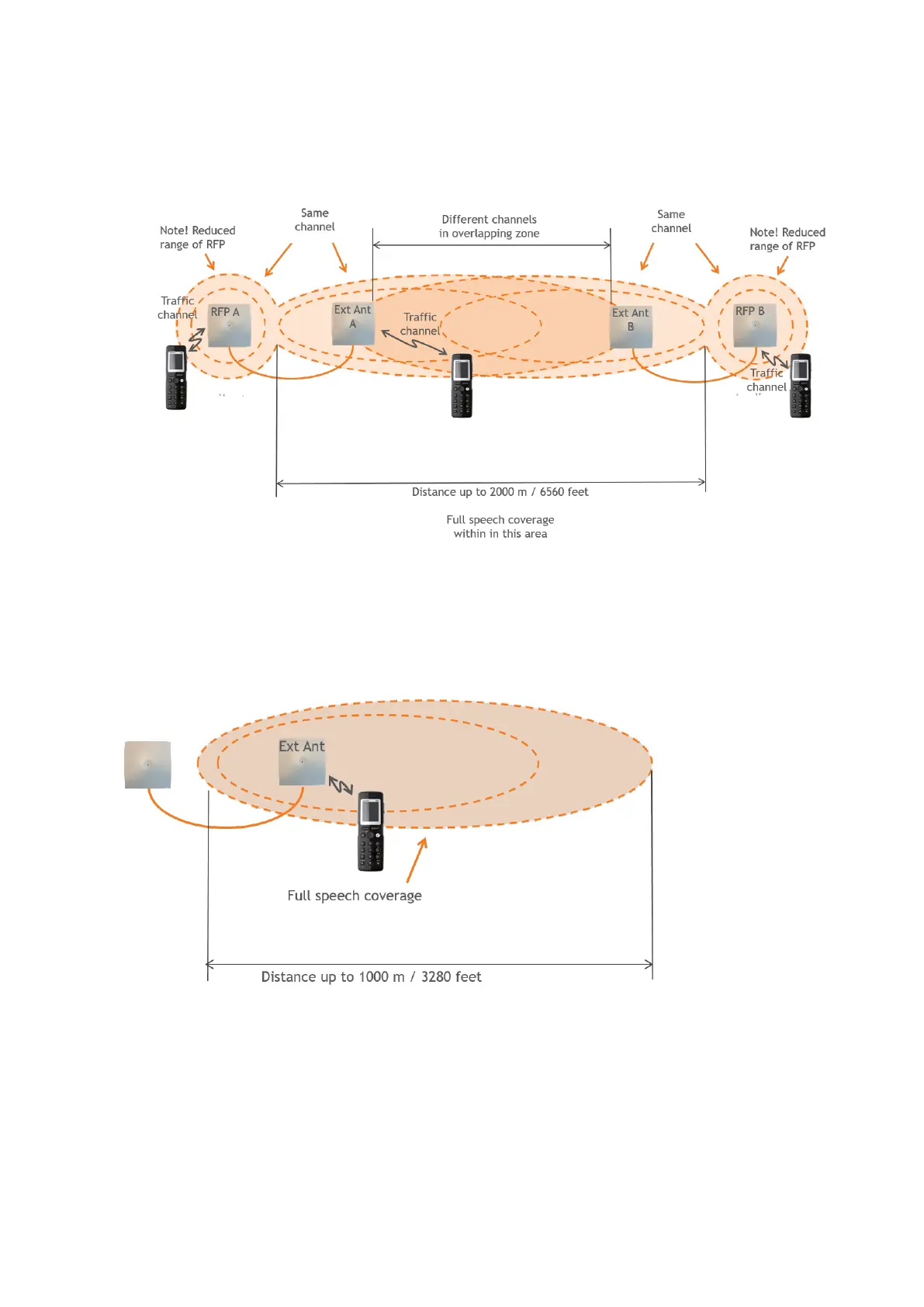

Second example (see illustration below) is an example of using Spectralink IP-DECT Base Stations,
both having external antennas. This scenario allows for coverage over very long distances.
Third example (see illustration below) is an example of using external antenna only on a Spectralink
IP-DECT Base Station or Spectralink IP-DECT Server 400 with built-in antenna turned off (requires
Multicell | IP-DECT Server 400 License on the Spectralink IP-DECT Server 400).
Spectralink IP-DECT Server 200/400/6500 and Virtual IP-DECT Server One Installation and Configuration Guide
