14215700-IG, Edition 15.0
May 2020, Original document
263

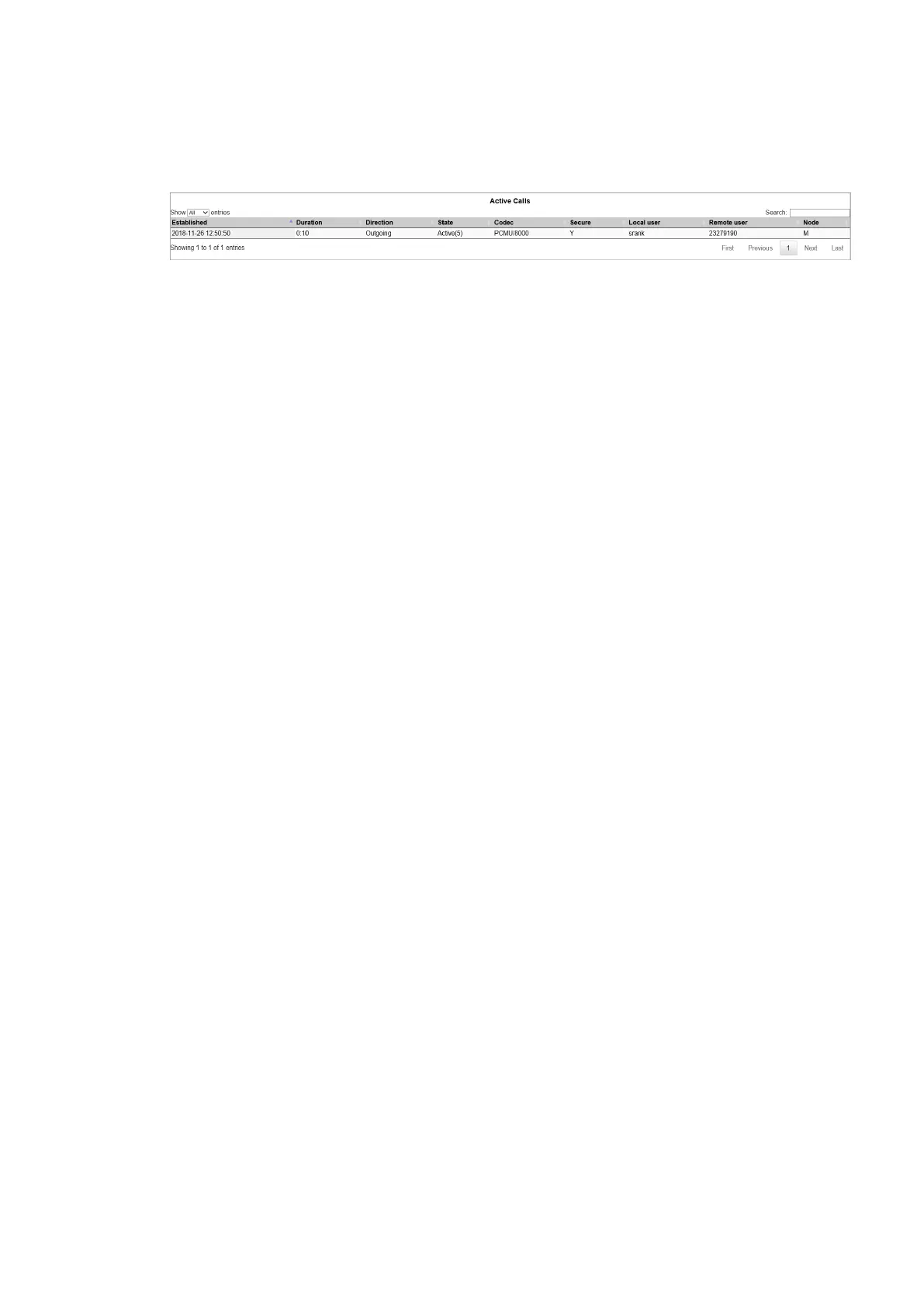

Statistics of Active Calls
l Click Statistics, and then click Active Calls. The Active Calls page appears.
Provides an overview of current calls in the system.
l Established: Shows time stamp of beginning of call.
l Duration: Indicates the current length of the call.
l Direction: Indicates whether the call was made from outside (incoming call), or if the call
was made from the DECT system (outgoing call).
l State: Refers to a specific point in a call session, e.g. call setup state, ringing state, etc. The
information is saved in the log files and usually used for debugging.
l Codec: Shows the codec being used.
l Secure: Shows if call is encrypted with SRTP. Y = encrypted, N = non-encrypted.
l Local user and Remote user: Local user identifies the local endpoint. If the call is local,
you can also identify the remote endpoint.
l Node:(Only visible if running a redundant system on a Spectralink IP-DECT Server 6500
or Spectralink Virtual IP-DECT Server One). Shows which server the handsets are sub-
scribed to - master server (M) or backup (slave) server (S).
Spectralink IP-DECT Server 200/400/6500 and Virtual IP-DECT Server One Installation and Configuration Guide
