Sprinte ASP 116 evolution - 214 SP Power Supply Board

USER MANUAL « ASP 116 EVOLUTION »
BOARDS
Sprinte SAS, All rights reserved, including translation rights
82

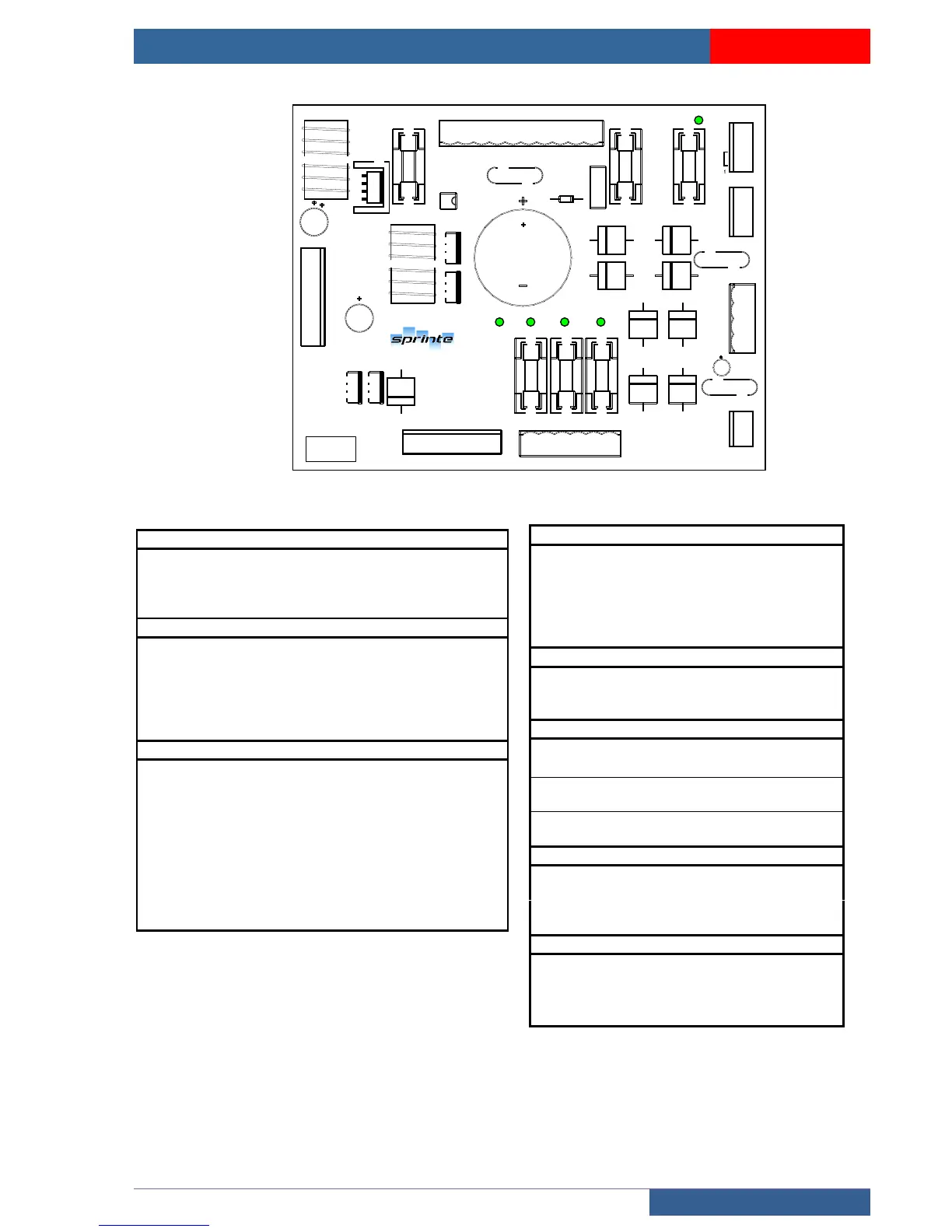

5.1.3 214SP Power supply board
214SP-A
NUM. CARTE
INDICE
V12
V24
5A
FC+
5A
CHS
2A
CN3-A
GND
V24
V12
GND
PHI
FU1
2A
TS1-A
L1380
T380
T220
L1220
220F
220F
T0 L2
L3220
L3
380
FU2 FU3
BATT380
2A
T0
5A
AR1-A
BAT-
BAT+
CFG
24V
AR2-A
GND
FCT
FC-
FC+
AR3-A
GND
V24
22V
CHS
CF1-A
C55
CFC
C70
TS2-A
7055011011002222
CN4-A
V12
FC+
CHS
FC-
V12
V24
FU4 FU5 FU6
CN3-A  CN3-M / 216SP
V24
24 V dc
V12
12 V dc
GND
ground
PHI
Detection of reversal or missing phase
CN4-A  CN2-I / 220SP, CN2-0 / 225SP
V24
24 V dc
V12
12 V dc
GND
ground
FC-
-55 V or -70 V dual alternating
FC+
+55 V or +70 V dual alternating
CHS
110 Vac safety chain
TS1-A  transformer, terminal block
L1.380
Entry 400V mains GRID (400V TRI)
T380
Entry 400V from transfo
T220
Output 230V from transfo
L1.220
Entry 230V mains EDF (230V MONO)
220F
Output 230V from transfo
220F
Output 230V from transfo
T0
Output 0V from transfo
L2
Entry 400V mains EDF (400V TRI)
L3.220
Entry 230V mains EDF (230V MONO)
L3.380
Entry 400V mains EDF (400V TRI)
TS2-A  transformer
22
Output 22V from transfo
022
Output 0V from transfo
0110
Output 0V from transfo
110
Output 110V from transfo
55
Output 55V from transfo
70
Output 70V from transfo
CF1-A (configuration brake voltage)
C55
Configuration FC+ / FC- in 55V
CFC
Common Configuration FC+ /FC-
C70
Configuration FC+ / FC- in 70V
AR1-A  battery, load configuration
BAT-
Battery supply -
BAT+
Battery supply +
CFG
24V
Config. battery charge in 24Vdc
CFG
24V
Config. battery charge in 24Vdc
AR2-A  contactors
GND
ground
FCT
Brake / cam timed
FC-
-55 V or -70 V dual alternating
FC+
+55 V or +70 V dual alternating
AR3-A  voltage outputs
GND
ground
V24
24 V dc
22V
Info 24V not safeguarded (max 5A)
CHS
110 Vac safety chain
