Sprinte ASP 116 evolution - 223 SP Extension Board for Door Second Service

USER MANUAL « ASP 116 EVOLUTION »
BOARDS
Sprinte SAS, All rights reserved, including translation rights
93

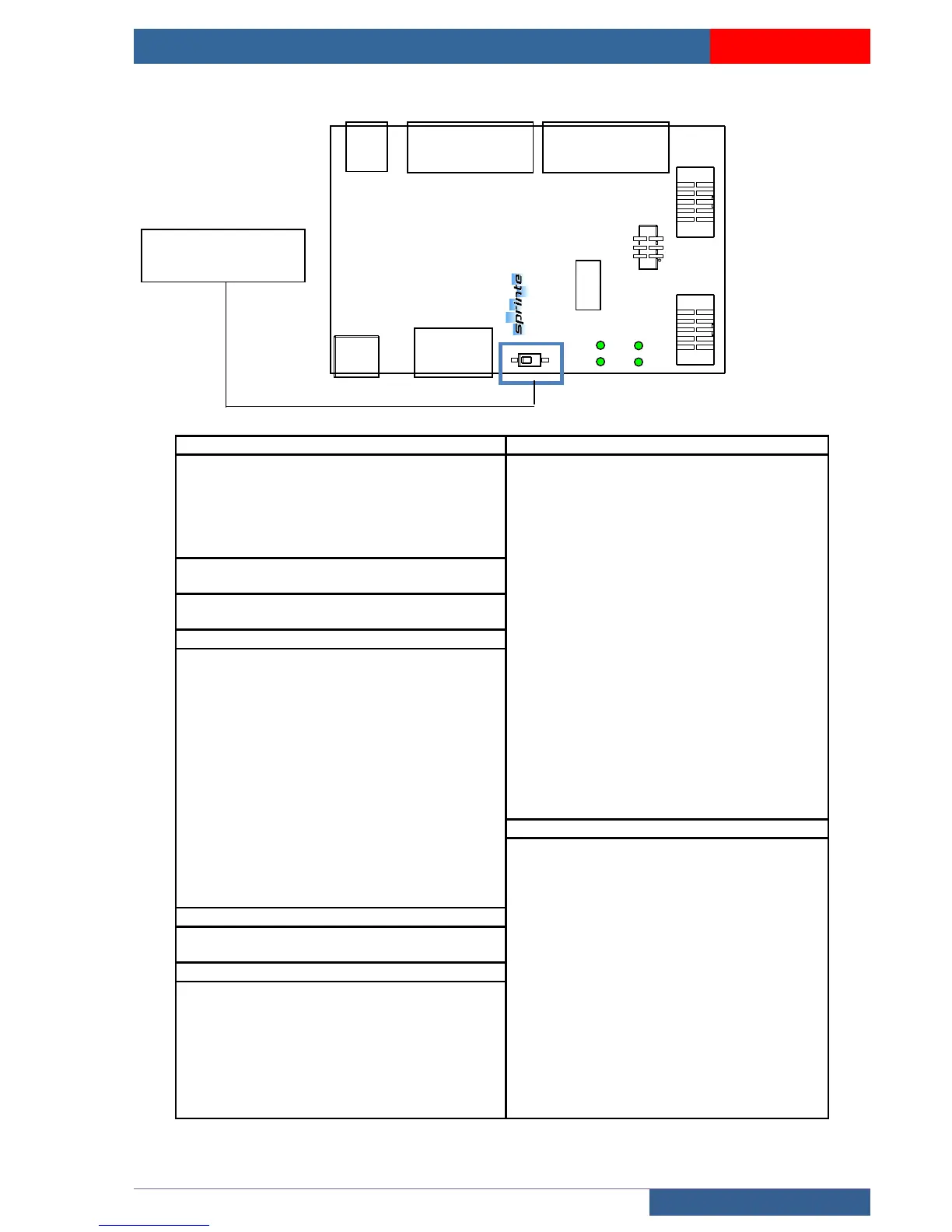

5.2.4 223SP extension board for door second service
223SP1-A
CHC2
CPC2
ETAT
V24C
CN3
CN2
CN1
CB34
CB33
CB32
CB35
CB36
NUM. CARTE
INDICE
GND
V24C
BOUV2
BFER2
PE
GND
V24C
C2
C1
C4
C3
C6
C5
C8
C7
FD
FM
ECL
BPALR
OAC2
FAC2
AF
HP2C
PE
GND
GND
V24C
C10
C9
C12
C11
FDP
FMP
CCC
V12
VNSC
VSU
PE
V12
GND
FCO2
OUV2
FCF2
FER2
CPC2
NUD2
CHC2
COM
GND
GND
HP2P
V24C
CB32 inspection
CB34 BAB 2B
<V24C
24 V controlled
<V24C
24 V controlled
<GND
ground
<GND
ground
>BFER2
Closing button door 2
>C9 à
C12
Car button 9 to 12
>BOUV2
Opening button door 2
(not used)
<PE
Equipotential protection
(not used)
CB35 Power supply
((not
used)
>V12
Input 12 V
(not used)
<GND
ground
<FMP
Next up departure arrow
CB36 Door 2 operator
<FDP
Next down departure arrow
<HP2P
Landing loud speaker
<V12
12V
<V24C
24 V controlled
CCC
Car priority key
<GND
ground
<VSU
Overload light indicator output
<GND
ground
<VNSC
<CHC2
Shock
(not used)
<COM
Common outputs opto-coupled
doors
(not used)
>CPC2
Cell safety
(not used)
>NUD2
Opto-coupled control for forced door
closing
<PE
Equipotential protection
>FCF2
Closing end limit
CB33 BAB 2A
<FER2
Opto-coupled control for door closing
<V24C
24 V controlled
>FCO2
Opening end limit
<GND
earth
<OUV2
Opto-coupled control for door
opening
>C1 à C8
Car button 1 to 8
CN1
<FM
Up arrow
Connector connecting 211SP board to 223SP
boards
<FD
Down arrow
CN3
(not used)
Connector connecting the 223SP board to
another 223SP board
>ECL
Emergency lighting
>FAC2
Accelerated closing service 2
>OAC2
Accelerated opening service 2
>HP2C
Car loud speaker
<AF
Display
<GND
ground
<PE
Equipotential protection
SW1 1 =OFF (board 1)
SW1 1 =ON (board 2)
