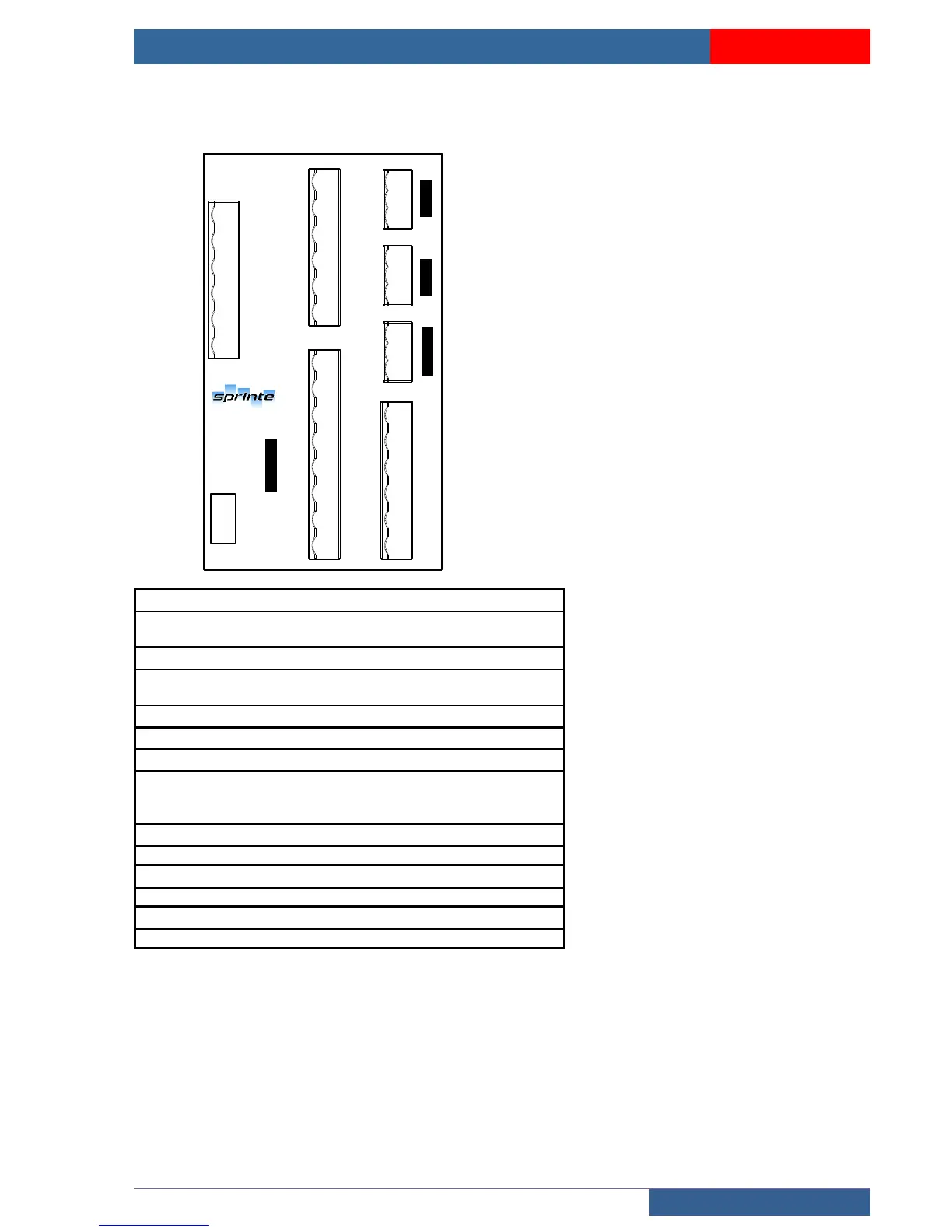

5.2.3 222SP power board for door second service
CN1
SHC1
SHC
VERC1
VERC
PE
IO1
IF1-EF1
IO2
PE
IF2-EF2
IE-
IO1
IF1-EF1
IE-
PE9
CB28
CB29
IO2
IF2-EF2
IE-
CAM2+
PE
CAM2-
CB30
CB31
PE10
CAM2+
CAM2-
PE
M2
L2
K2
VERC1
VERC
SHC
SHC1
PE
M2
L2
K2
INJ.1INJ.2
CAME 2
PORTE 2
NUM. CARTE
INDICE
222SP-A
CN4
Connector connecting 222SP board to 210SP board (Option
door 2
nd
service)
PE9
Connector connecting the trailing cable to terminals in the
control panel (Power supply motor brake injection door 1 & 2)
CB31
Connection power supply motor door 2 + door safety
PE10
Connector connecting the trailing cable to terminals in the
control panel (Power supply motor door 2 + power supply cam
2)
CB30
Connection cam 2 (power supply configurable in control panel)
CB29
Connection motor brake injection door 2
CB28
Connection motor brake injection door 1
