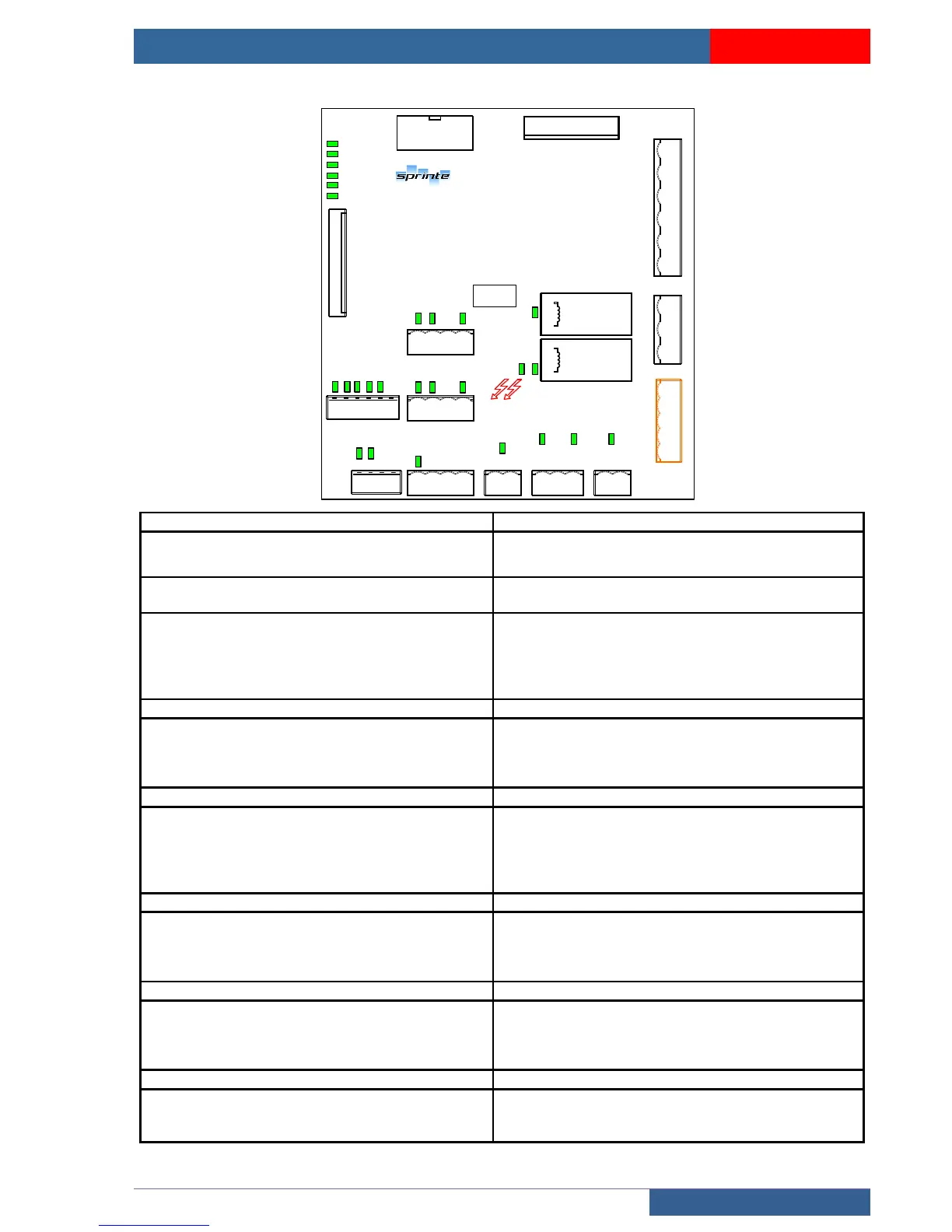

5.1.4 220SP motor interface board
DHCS_AMONT
DHCS_AVAL
AU
SHP
SHC
VER
CN1-I
CHAUF
V24
VENT BOOST
CN6-I
FER 2
V24
OUV2 CAM 2
FER 1 V24 OUV1
CAM 1
CN9-I
CN11-I
CN12-I
CN13-I
CN14-I
ST GND
CFR1
STH GND
CFR2
STH
CC GND
CN10-I
E1 E2 E3 E4
S1
CN8-I
S2 S3 S4 S5
COM
OUT IN
K_LIGNE
K_EGA
ATTENTION RISQUE DE CHOC
ELECTRIQUE
CN2-I
CN3-I
CN5-I
CN7-I
CN4-I
GND
VCC
C
OUT
FER1
OUV1
PL
CLK
DIN
STR
OE
PE
VER
SHP
AU
RV
CHS
VER
CCT
L
K-EGA
E-EGA -
E-EGA +
PE
K_LIGNE
NUM. CARTE
INDICE
220SP1-A
CN1-I
CN2-I
Connector connecting the 220SP power board to
the 225SP and 226SP expansion boards
Connector connecting the 220SP to the 214SP power
supply board
CN3-I
Safety chain inputs: 48-230Vac or 24Vdc
CN4-I
>PE
Connector connecting the 220SP power board to the
216SP board
>VER
Locking
>SHP
Landing shunt
>AU
Emergency stop
>CHS
Safety chain power supply
CN5-I
CN6-I
<VER
Locking
<BOOST
Brake boost control
<CCT
Common contactor
<VENT
Fan control
<L
Line
V24
<CHAUF
Heating control
CN7-I
CN8-I
< K_EGA
Shaft lighting control
<S1 … S5
VF controls
> E_GA
Shaft lighting detection
Opto-isolated / 24 Vdc to 230
Vac
COM
PE
CN9-I
CN10-I
<CAM 2
Door 2 cam control
>E1
Opto-isolated / 12-24 Vdc
<OUV 2
Door 2 opening control
>E2
Opto-isolated / 12-24 Vdc
V24
24 V
GND
<FER 2
Door 2 closing control
GND
CN11-I
CN12-I
<CAM 1
Door 1 cam control
>ST
Thermal probe
<OUV 1
Door 1 opening control
GND
V24
24 V
<FER 1
Door 1 closing control
CN13-I
CN14-I
>STH/CFR1
Oil thermal probe / Brake state
>CC
Contactors control
GND
GND
GND
>SPR/CFR2
Brake state
