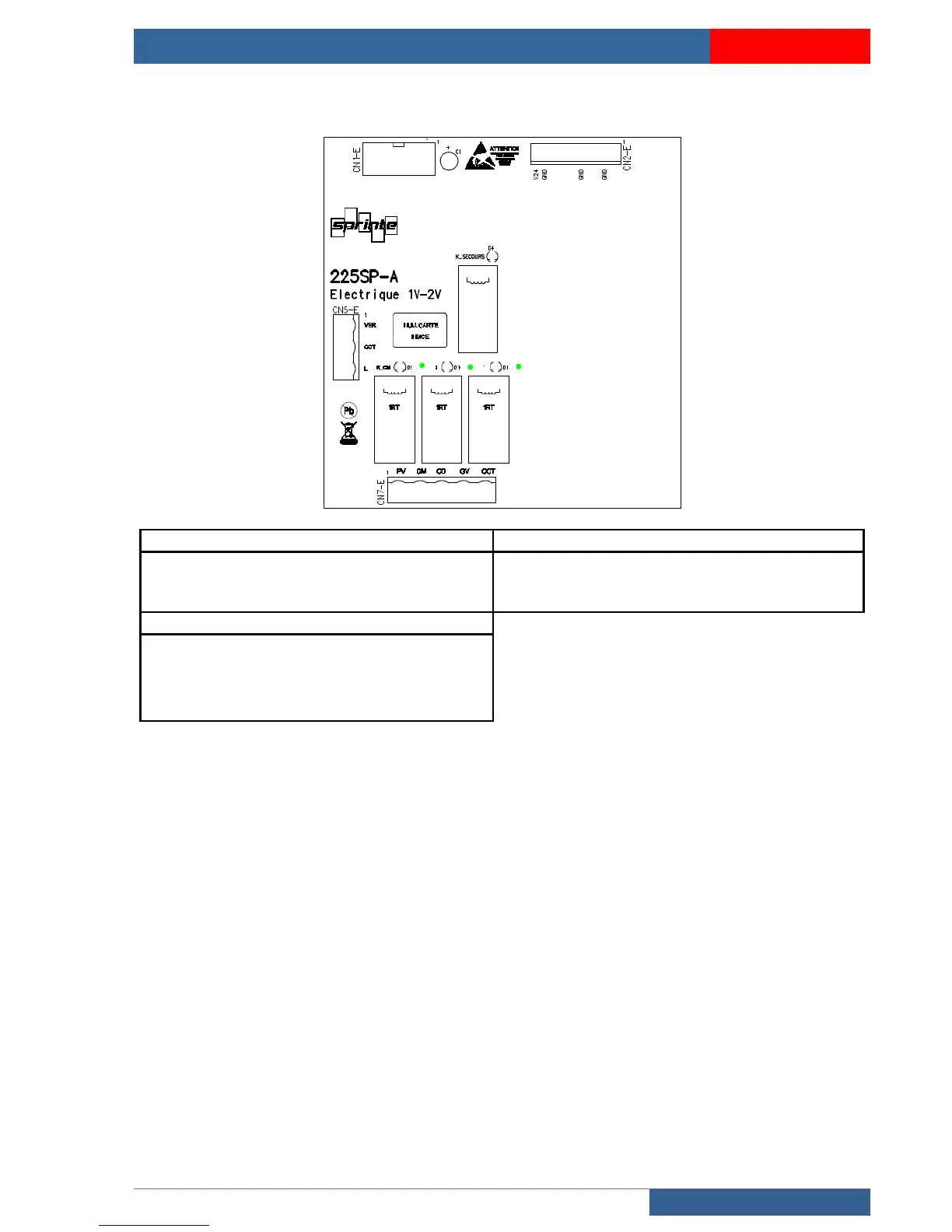

5.1.5 225SP Expansion board 2 speeds motor
CN1-0
CN2-0
Connector connected to CNI-I connector of 220SP
power board
Connector connected to CN4-A connector of 214SP
power supply board and to CN2-I connector of 220SP
board
CN7-0
<PV
Low speed contactor
<CM
Up contactor
<CD
Down contactor
<GV
High speed contactor
<CCT
Common contactor
