Starcraft SOLO - Other Cut Options of Interest; Mirroring Designs before Cutting

38
2.07 Other Cut Options of Interest

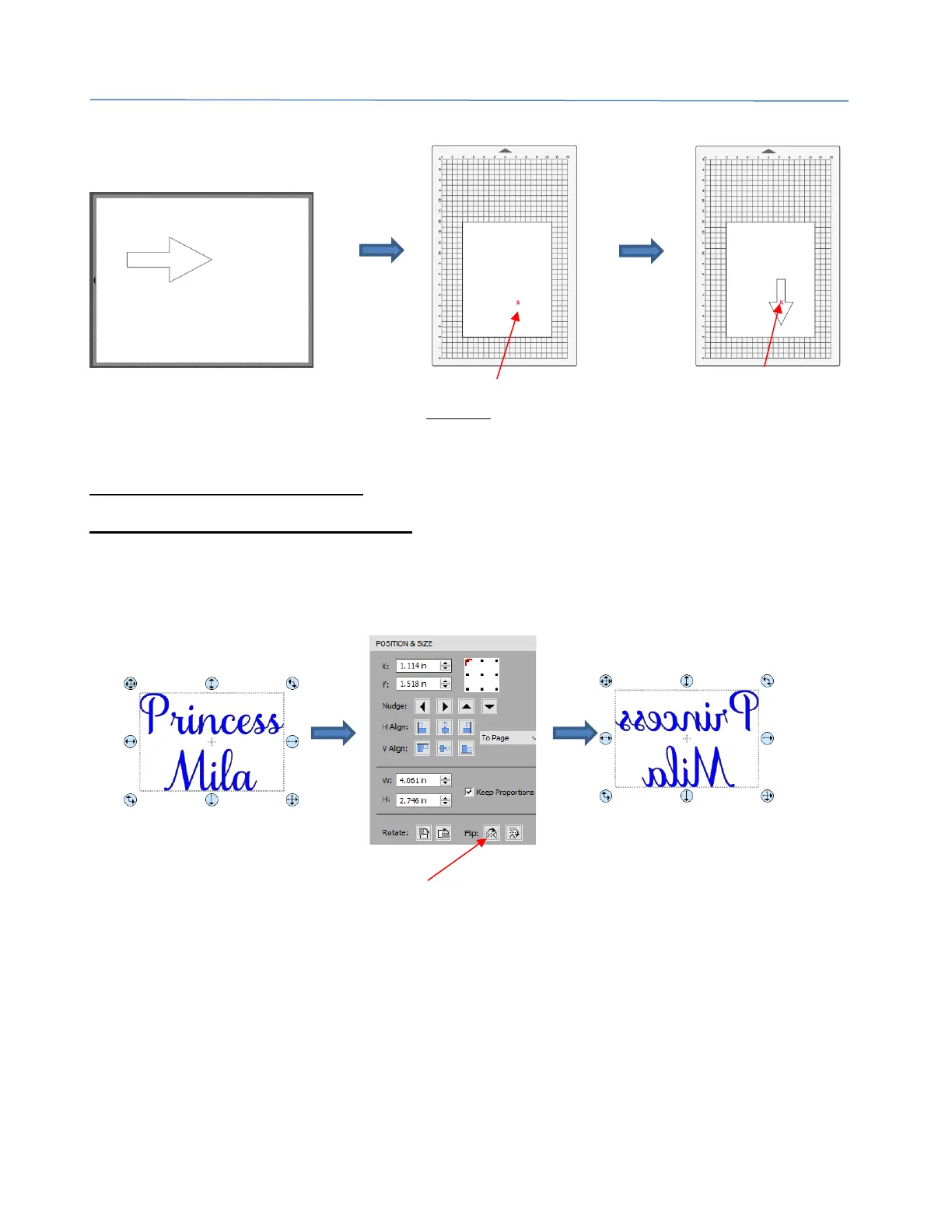

2.07.1 Mirroring Designs Before Cutting
• CREATE offers two methods for mirroring designs for applications such as HTV or vinyl decals for the inside
of a window.
 Select the design and click on the Flip Horizontal icon on the Position and Size Panel:
 Alternatively, you can send the design to the Cut Settings window and enable Mirror H:
Click Horizontal Flip
Page
Origin is set somewhere
well inside the material
Shape is cut so that its
center is aligned with the
origin that was set
Landscape + Center Point
