9-2 SPARCstation 5 Service Manual—November 1996
9
9.1 Hard Disk Drive
The SPARCstation 5 system accommodates 535-Mbyte, and 1.05- and 2.0-Gbyte
hard disk drives. All the drives have a single connector that connects to the
SCSI backplane in the system unit chassis. A specially designed handle,
fastened to the drive, speeds drive removal and installation.
Note – Do not remove the handle from the hard drive. It is part of the
customer-replaceable unit (CRU).

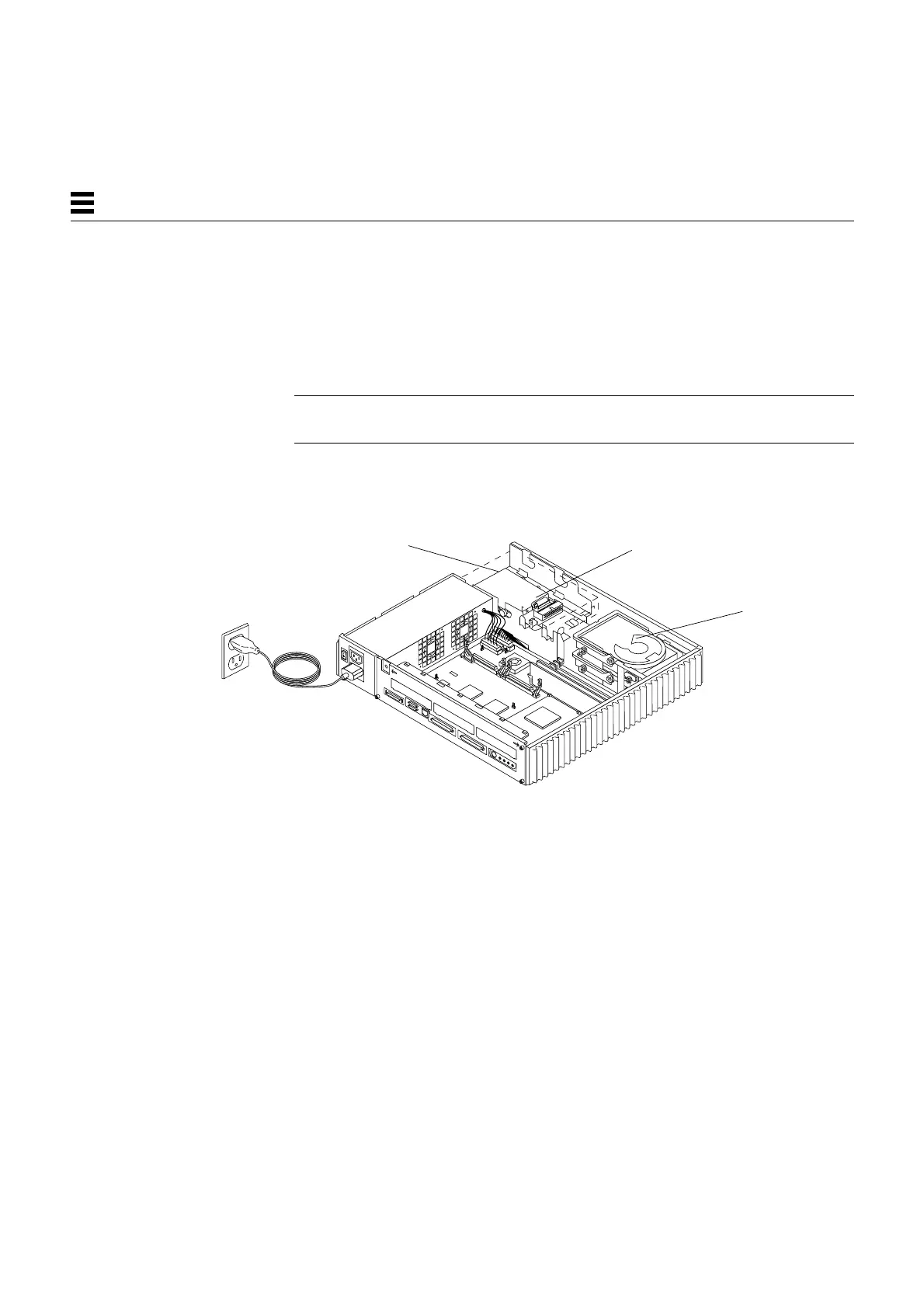

Figure 9-1 shows the location of the drives.
Figure 9-1 Drive Locations
Hard drives
(stacked)
CD-ROM
drive (top)
Diskette drive
(bottom)
