7-4 SPARCstation 5 Service Manual—November 1996
7
7.2 Attaching the Wrist Strap
1. Unwrap the first two folds of the wrist strap and wrap the adhesive side
securely around your wrist.
See Figure 7-3.

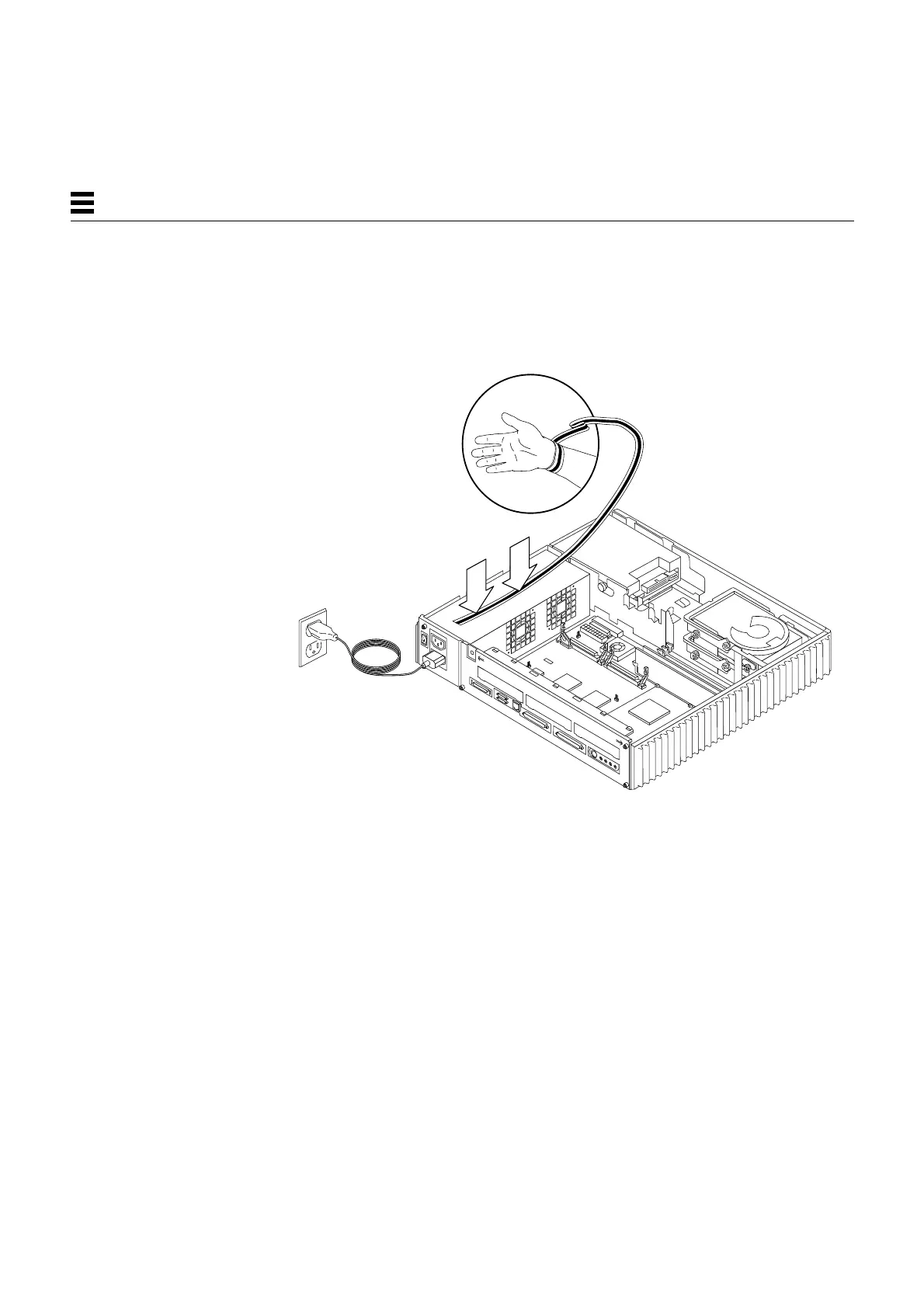

Figure 7-3 Grounding the Wrist Strap to the Power Supply
2. Peel the liner from the copper foil at the opposite end of the wrist strap
and attach that end to the top of the power supply.
See Figure 7-3. Make sure that the strap makes good contact with the metal
casing of the power supply; avoid the labels on top of the supply.
