System Board and Component Replacement 11-17
11

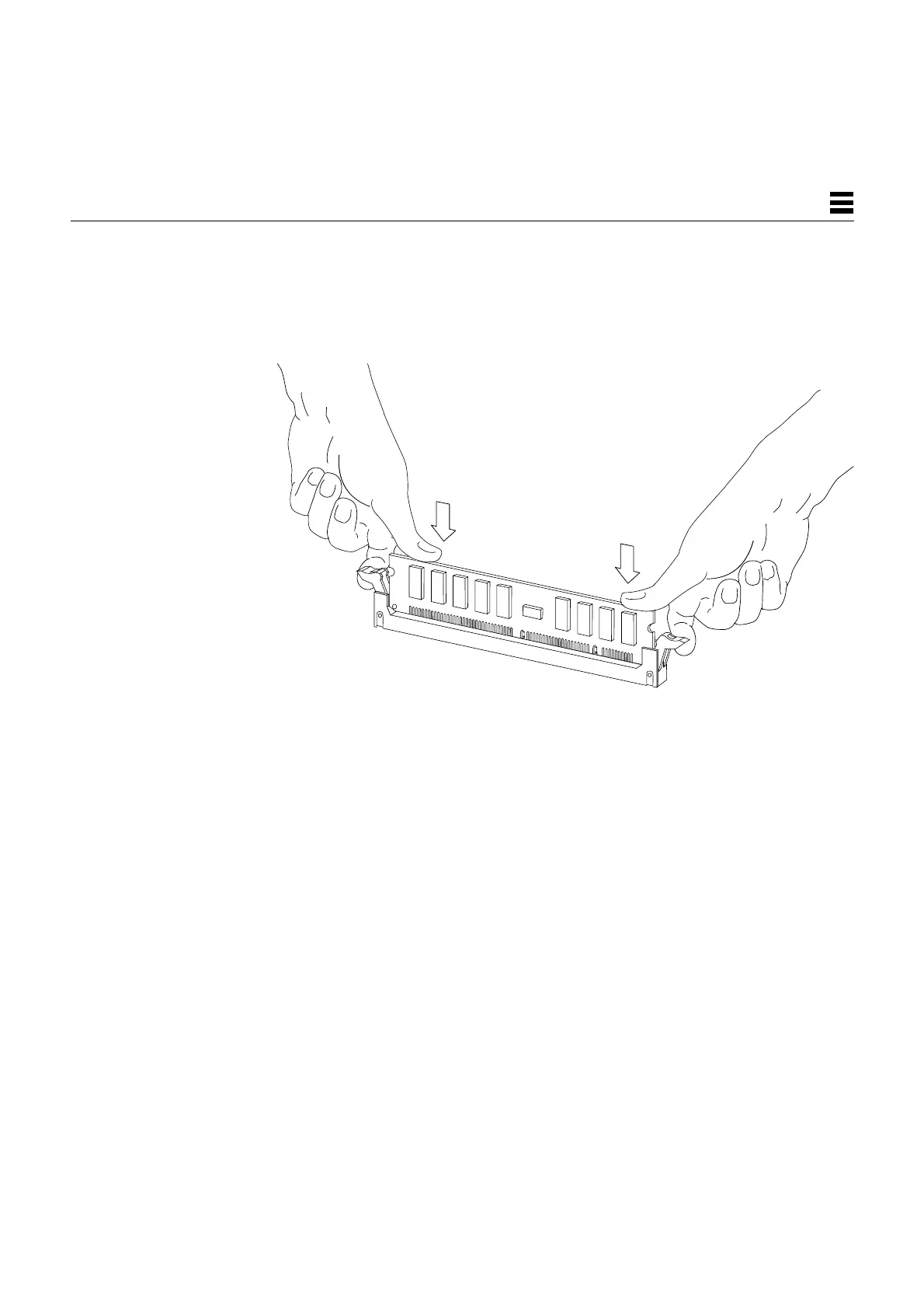

4. Place your thumbs as shown in Figure 11-17 and push the DSIMM firmly
into its connector.
5. To lock the DSIMM in place, lift up both ejector levers.
Figure 11-17 Installing a DSIMM
6. Detach the wrist strap and replace the cover.
See Chapter 7, “Internal Access.”
7. Power on the system.
See Section 6.2, “Powering On the System.”
8. Watch for the system banner to verify that the new memory is recognized
by the system.
The system banner appears at the top of the screen a few seconds after you
power on the system. Check the amount of memory listed in the system
banner to verify that the new memory is recognized by the system.
Push the DSIMM
firmly into its connector.
