Sun Microsystems SPARCstation 5 - Replacing an S24 Frame Buffer Card; Figure 11-11 Removing an S24 Frame Buffer Card

11-10 SPARCstation 5 Service Manual—November 1996
11
6. Hold both ends of the card extractor. Pull upward slowly and evenly until
the connector is detached from the slot.
See Figure 11-11.

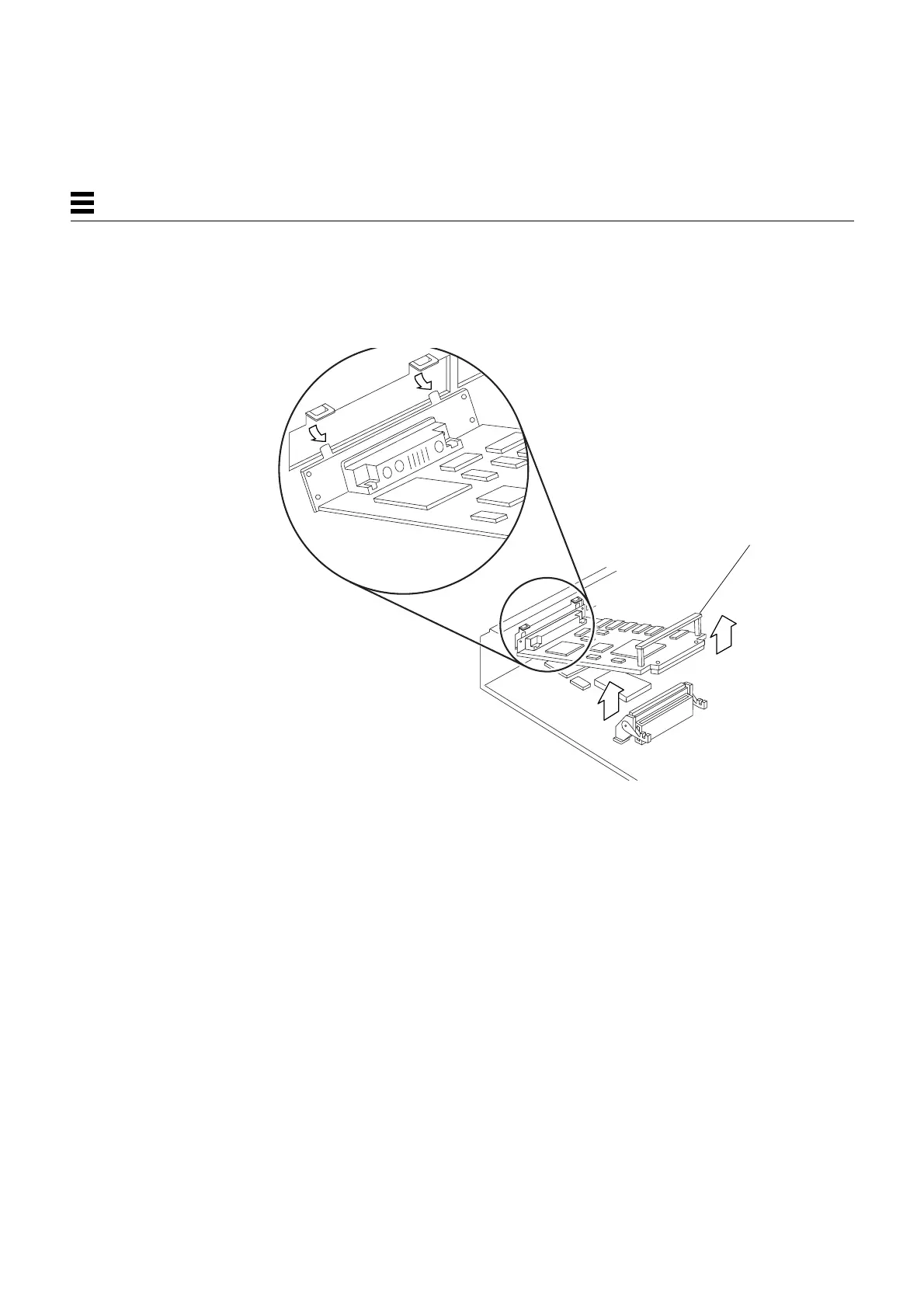

Figure 11-11 Removing an S24 Frame Buffer Card
7. Continue to lift the extractor while lowering the opposite end of the card
to free it from the back panel.
Place the faulty S24 card on an antistatic surface.
11.2.2 Replacing an S24 Frame Buffer Card
1. Locate the AFX Bus slot on the system board.
See Figure 11-9.
2. Push back the two card retainers on the AFX Bus slot (if necessary).
See Figure 11-12.
Lift both ends of card
extractor simultaneously
to prevent pin damage.
