1.1.2 Interior View

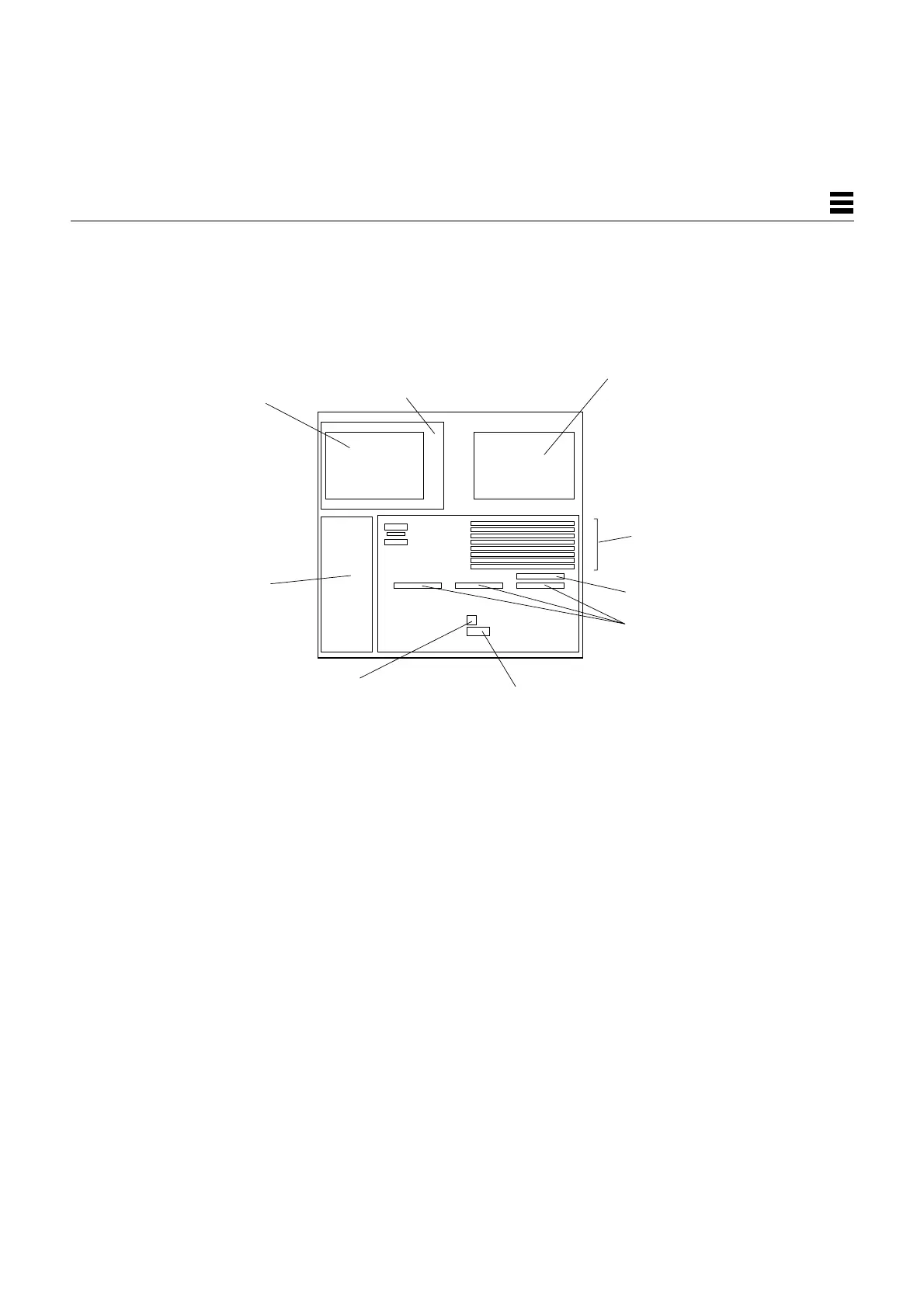

Figure 1-2 shows an interior view of the major subassemblies and the system
board for the SPARCstation 5 system.
Figure 1-2 Interior View of SPARCstation 5 System
CD-ROM drive
Diskette drive
Hard drives
Power
SBus slots
DSIMMs
PROM
NVRAM
(top unit)
(bottom unit)
(stacked)
supply
AFX Bus slot
