Sun Microsystems SPARCstation 5 - Figure 11-21 Installing the System Board; Figure 11-22 System Board Captive Screws

System Board and Component Replacement 11-21
11
c. Slide the board along the card guide until it is fully inserted.

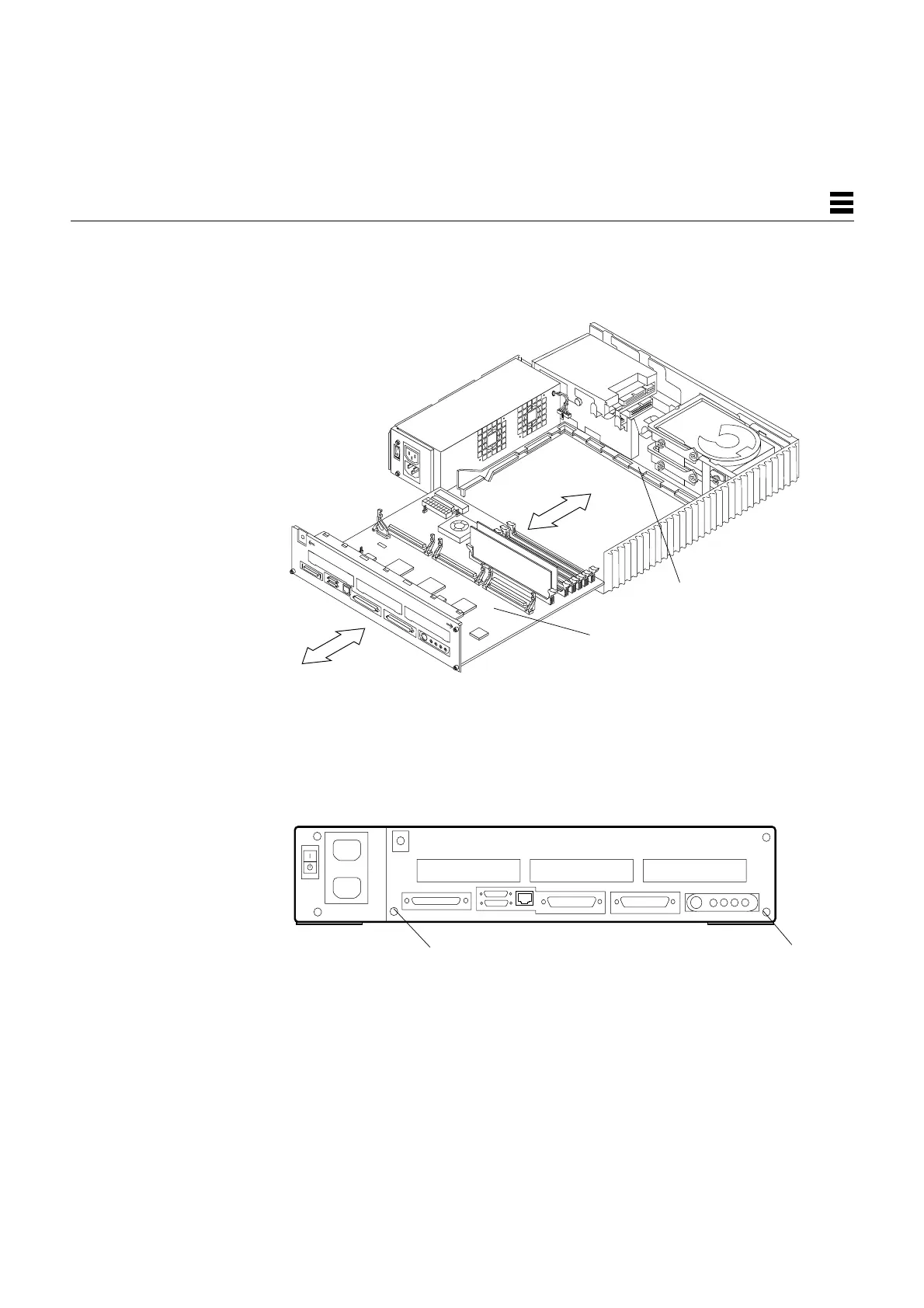

Figure 11-21 Installing the System Board
2. Tighten the two captive Phillips screws that secure the board to the rear
of the chassis.
See Figure 11-22. Do not overtighten these screws.
Figure 11-22 System Board Captive Screws
Card guide
System board
Captive screw
Captive screw
