B-8 SPARCstation 5 Service Manual—November 1996
B
B.7 Audio Ports

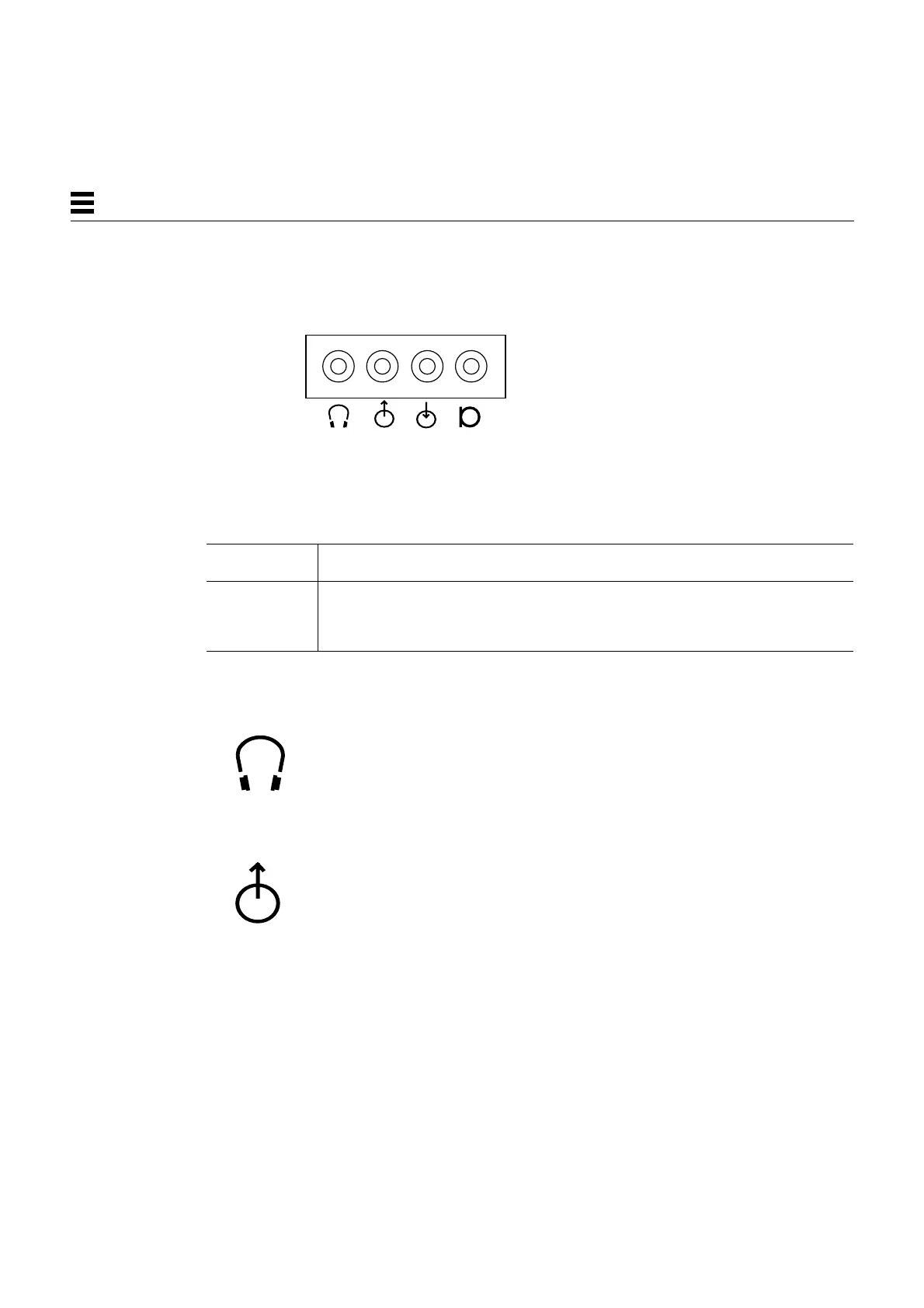

Figure B-7 Audio Ports
B.7.1 Headphone Connector
This connector is used to connect a set of stereophonic headphones to the
system for private listening of audio output.
B.7.2 Audio Line-Out Connector
This connector is used to connect the system audio output to a stereophonic
amplifier and external loudspeakers.
Table B-7 Signals for the SPARCstation 5 Audio Ports
Headphone Line-Out Line-In
Microphone
(new)
Tip Left Channel Left Channel Left Channel Left Channel
Ring (Center) Right Channel Right Channel Right Channel Right Channel
Shield Ground Ground Ground Ground
