Major Subassemblies 8-11
8

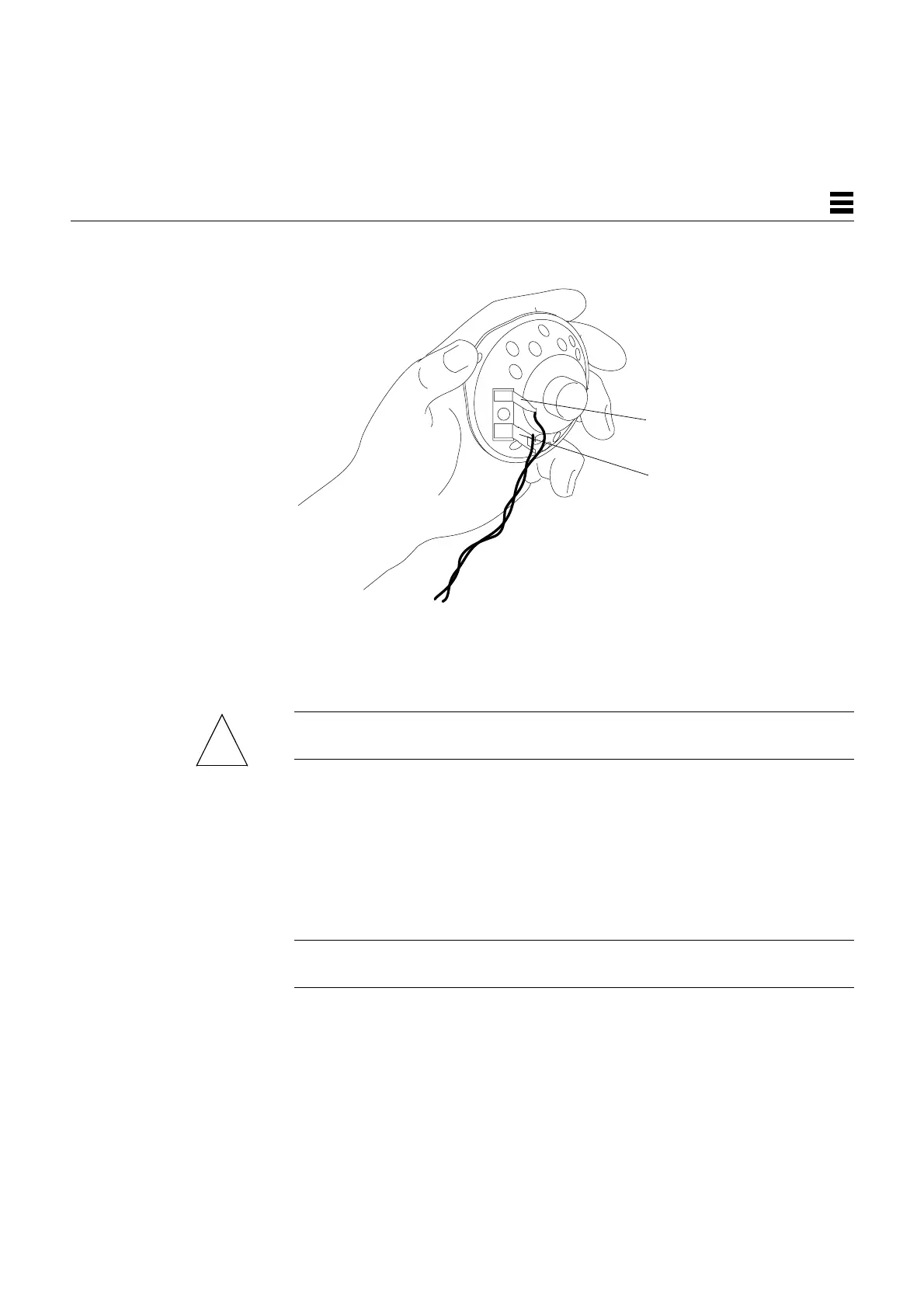

Figure 8-7 Speaker Connectors
8.3.2 Replacing the Internal Speaker
Caution – Do not touch the black inner surface of the speaker. Handle the
speaker only by the metal frame to avoid damage.
1. Pull the speaker end of the speaker/LED cable through the speaker
opening in the chassis wall.
2. Unpack the replacement speaker.
3. Slide the fast-on connectors at the end of the speaker/LED cable onto the
terminals of the replacement speaker.
See Figure 8-7.
Note – One connector and terminal pair is larger than the other. They are sized
differently to ensure proper connection.
Small fast-on
connector
Large fast-on
connector
Speaker
Rear View
!
To Next Page
