8. Insert the front edge of the system board into the card guide. Lift the rear
of the board slightly and slide it along the card guide until it is fully
inserted.
See Figure 9-22.

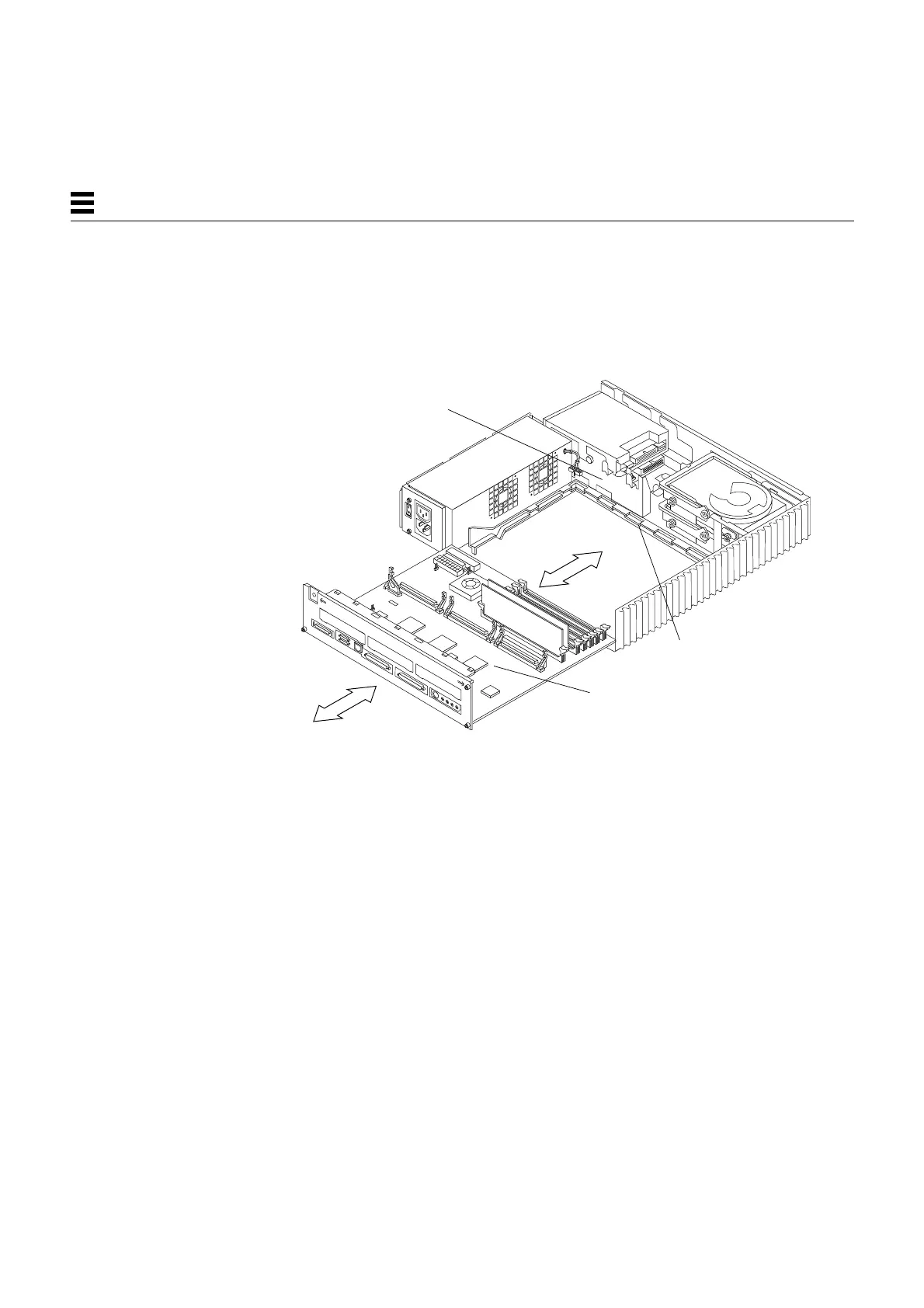

Figure 9-22 Replacing the System Board
9. Reconnect the DC power, diskette data, SCSI data, speaker/LED, and the
audio cables to the system board.
See Figure 9-21. Thread the SCSI data cable through the metal cable clips on
the chassis wall after it is plugged in to the system board.
10. Reinstall the SBus card (if necessary).
See Section 11.1.2, “Replacing an SBus Card.”
Card guide
System board
Chassis wall
