9.4 Internal SCSI Data Cable
9.4.1 Removing the Internal SCSI Cable
1. Shut down and power off the system.
See Section 6.1, “Powering Off the System.”
2. Detach all external cables from the rear panel except the power cord.
3. Remove the cover and attach a wrist strap.
See Chapter 7, “Internal Access.”
4. Unplug the DC power, SCSI data, diskette data, speaker/LED, and
CD-ROM audio cables from the system board.
See Figure 9-12. You may need to remove an SBus card to access the audio
connector. See Section 11.1.1, “Removing an SBus Card.”

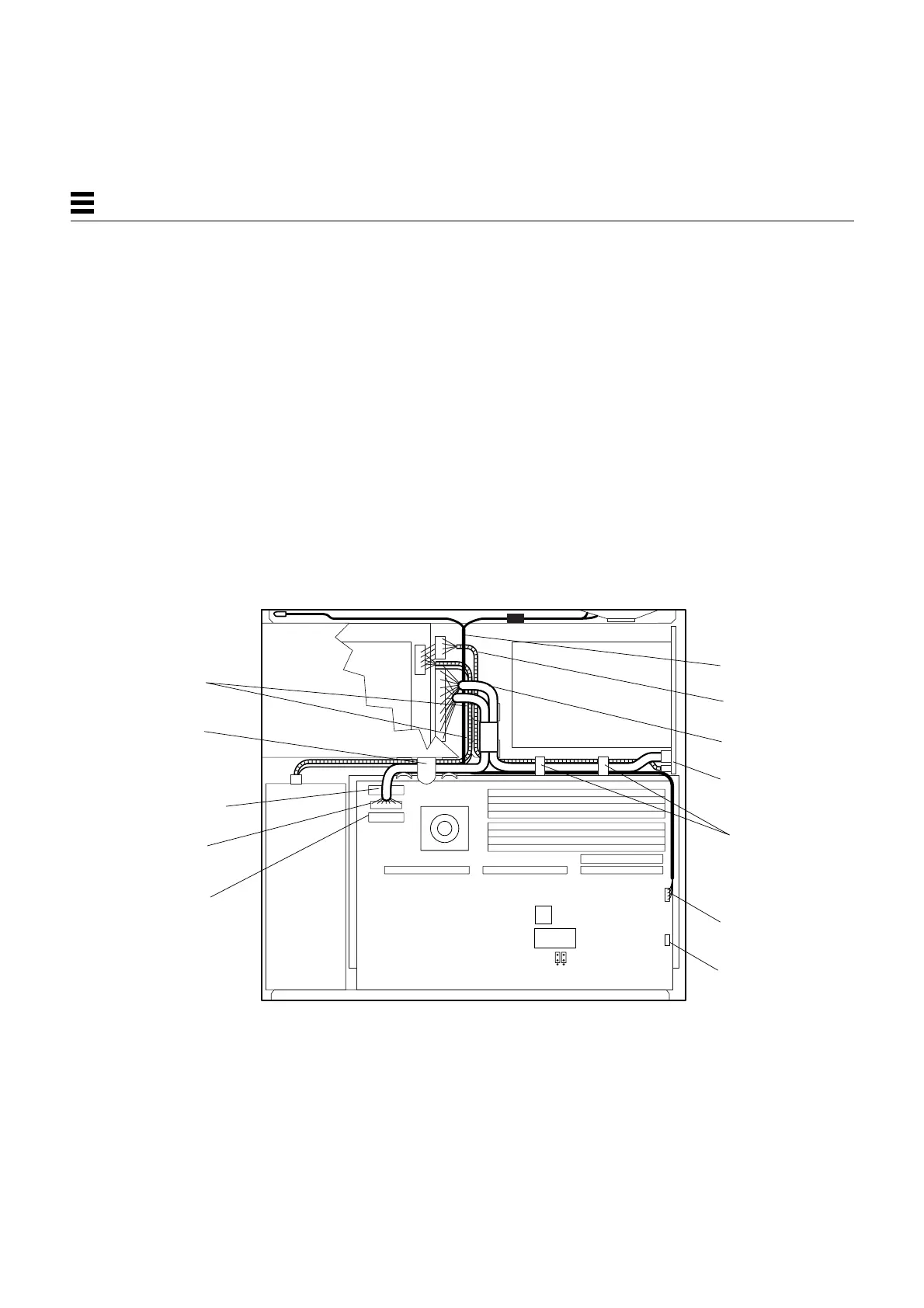

Figure 9-12 System Board Cable Connections
Speaker/LED
Diskette data connector
connector
SCSI data connector
Speaker/LED cable
SCSI data cable
DC power harness
SCSI backplane
DC power connector
Metal cable clips
Card guide
cable clips
CD-ROM audio
connector
Metal cable clips
on chassis wall
on chassis floor
