Sun Microsystems SPARCstation 5 User Manual

Input/Output Connectors B-3
B
B.2 Parallel Port Micro-D Connector

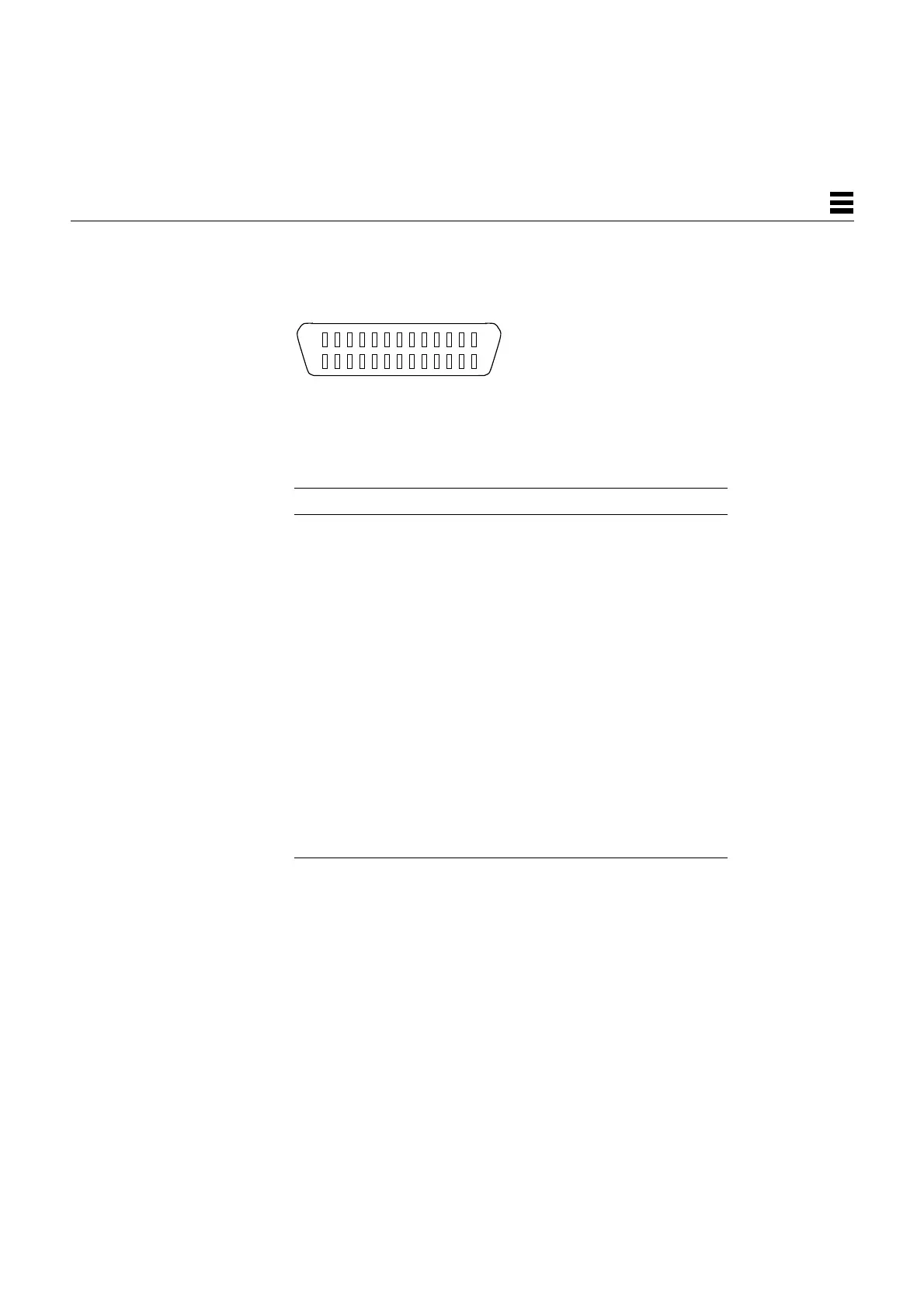

Figure B-2 Parallel Port Micro-D Connector
Table B-2 Pinout for Parallel Port Micro-D Connector
Pin Description Pin Description
1 Strobe_out_l 14 Auto_feed_out_l
2 Data[0] 15 Errpr_in_l
3 Data[1] 16 Init_out_l
4 Data[2] 17 Select_in_l
5 Data[3] 18 Ground
6 Data[4] 19 Ground
7 Data[5] 20 Ground
8 Data[6] 21 Ground
9 Data[7] 22 Ground
10 Ack_out_l 23 Ground
11 Busy_out_l 24 Ground
12 Pe_in 25 Ground
13 Select_out 26 Ground
113
26 14
