Sun Microsystems SPARCstation 5 - Twisted-Pair Ethernet Connector

Input/Output Connectors B-5
B
B.4 Twisted-Pair Ethernet Connector

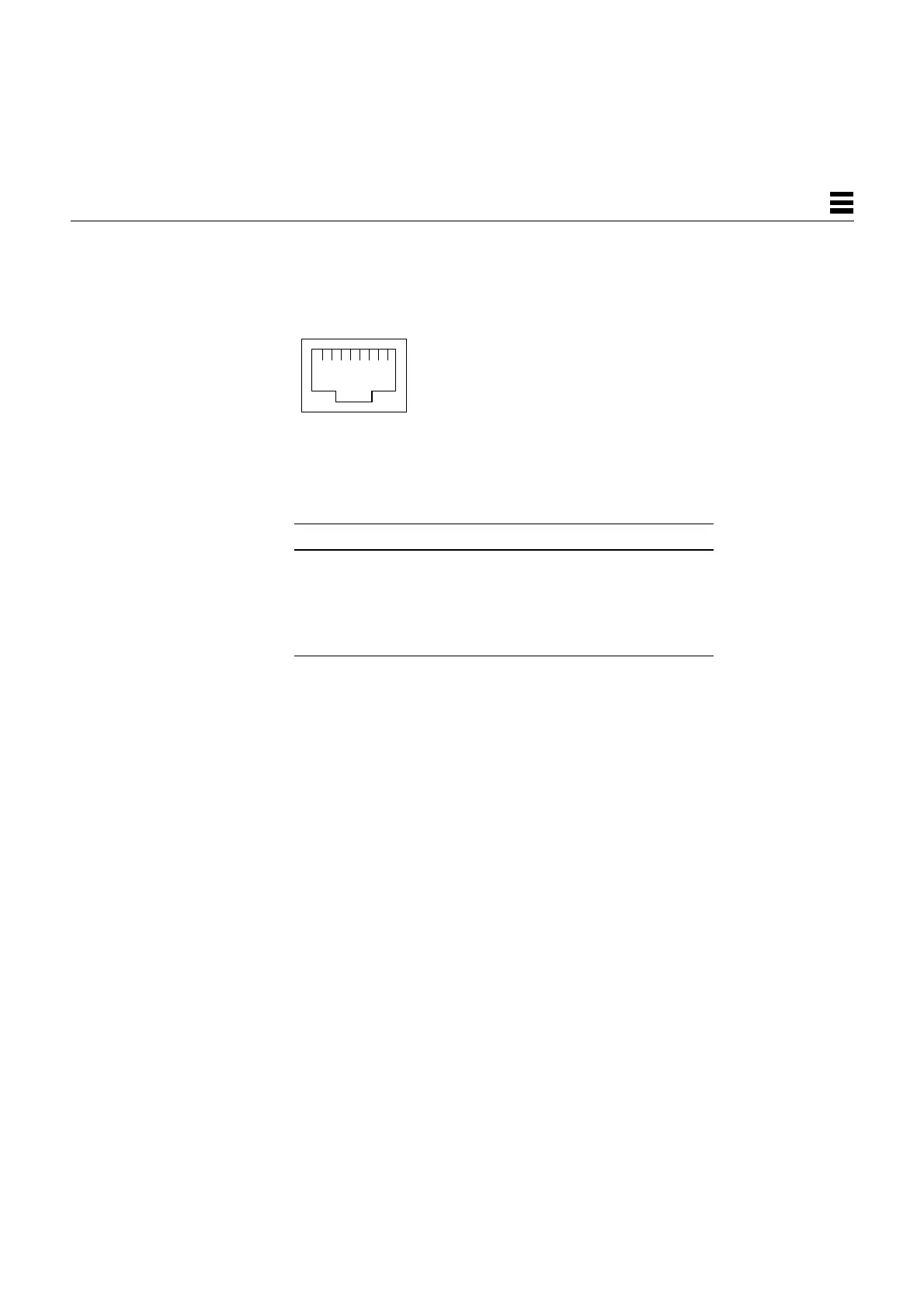

Figure B-4 Twisted-Pair Ethernet Connector
Table B-4 Pinout for Twisted-Pair Ethernet Connector
Pin Description Pin Description
1 Transmit Data + 5 N/C
2 Transmit Data - 6 Receive Data -
3 Receive Data + 7 Presence detect
4 N/C 8 Presence detect
