Storage Devices 9-13
9
5. Lift the diskette drive out of the drive bracket. Holding the drive in one
hand, detach the diskette data and DC power cables from the drive with
your other hand.
See Figure 9-10.

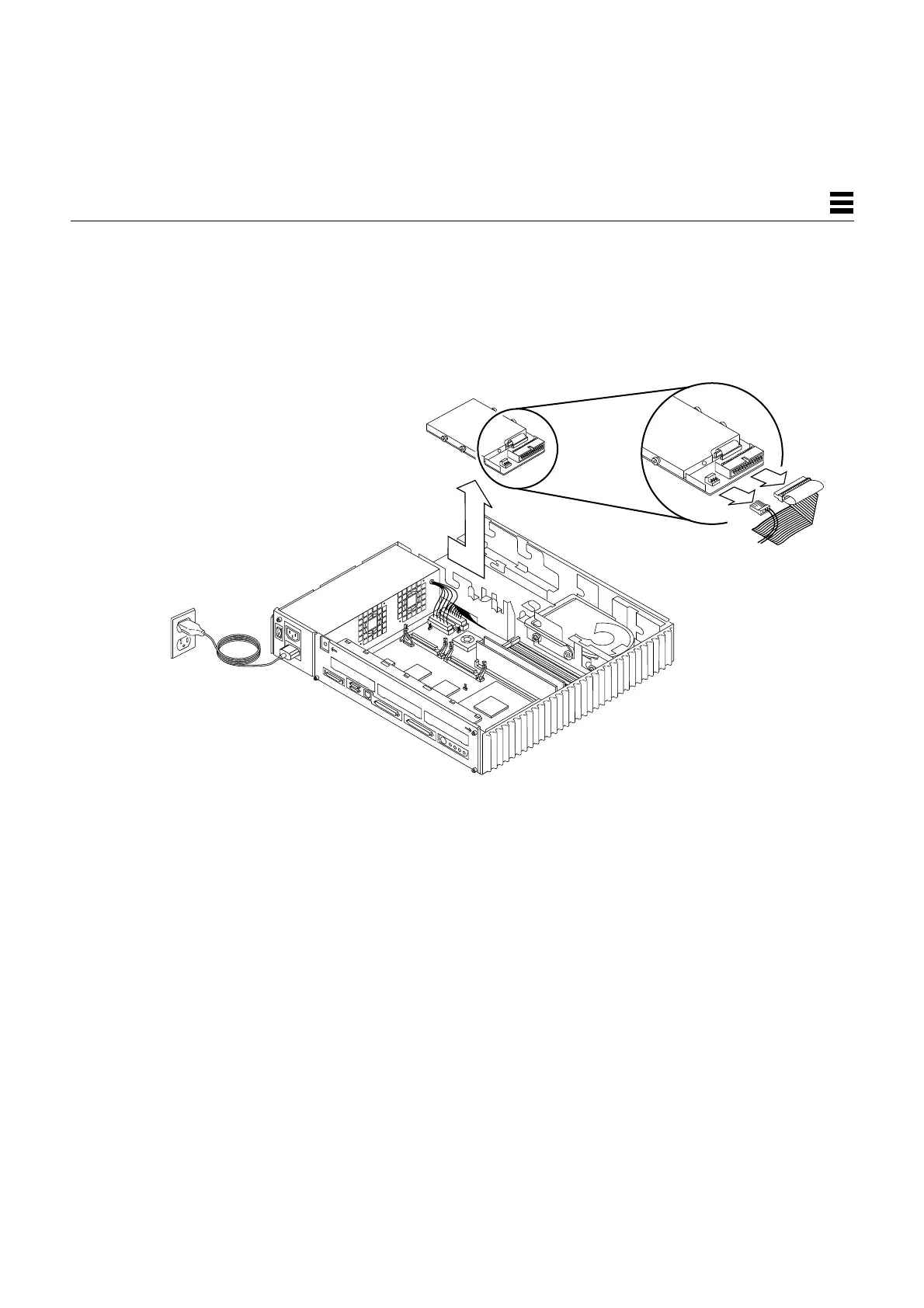

Figure 9-10 Removing the Diskette Drive
6. Lift the diskette drive out of the chassis and place it on an antistatic mat.
P4
