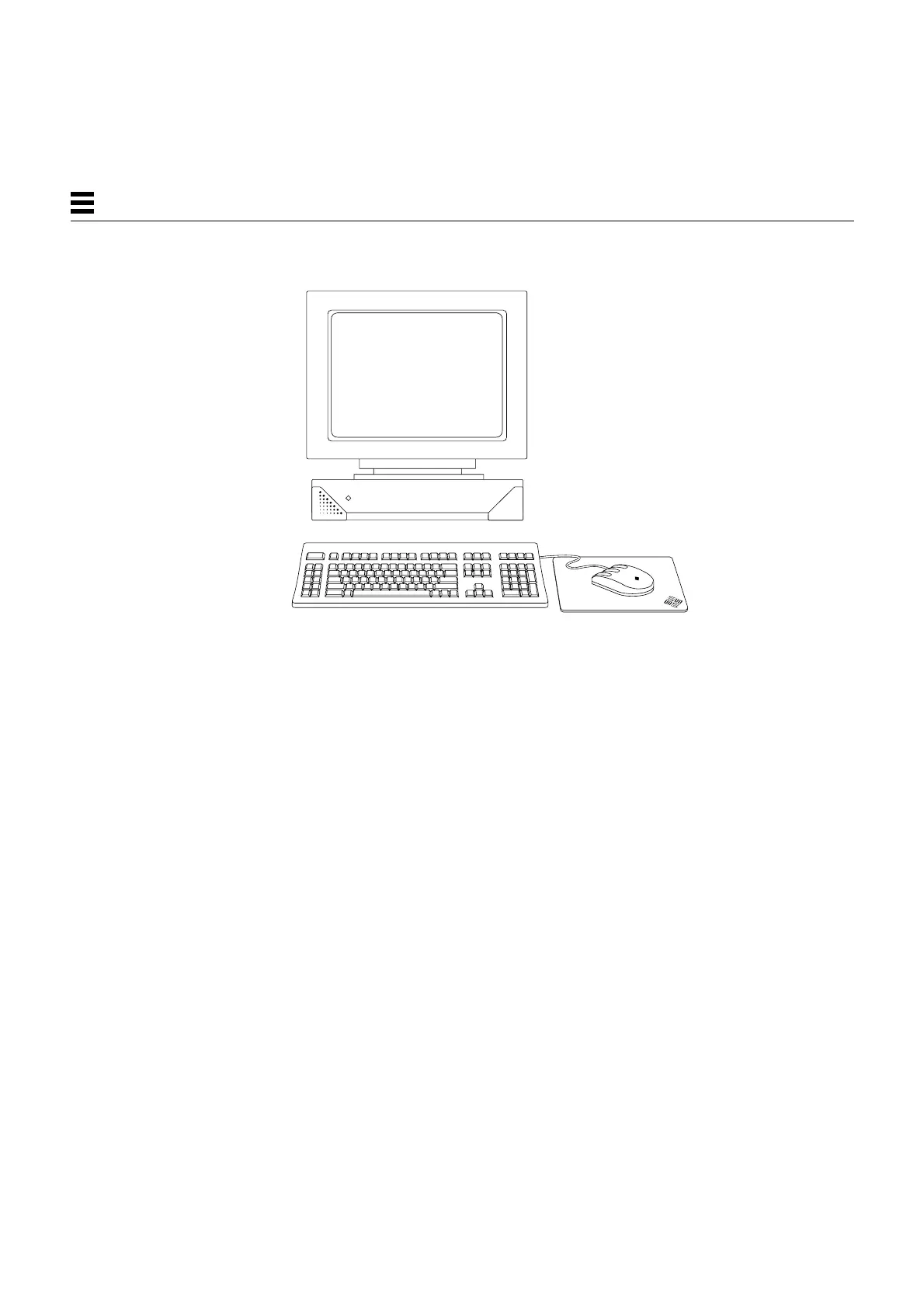

Figure 1-1 Basic SPARCstation 5 System
1.1.1 Subassemblies, Boards, and Components
The SPARCstation 5 system unit accommodates the following subassemblies,
boards, and components:
• System board
• DSIMMs (up to 8)
• S24 graphics card
• SBus cards (up to 3)
• Hard disk drives, 3.5-inch, 88.0-mm, single-connector (up to 2)
• CD-ROM drive
• Diskette drive (3.5-inch)
• Power supply (150-watt with 2 fans)
