9-20 SPARCstation 5 Service Manual—November 1996
9

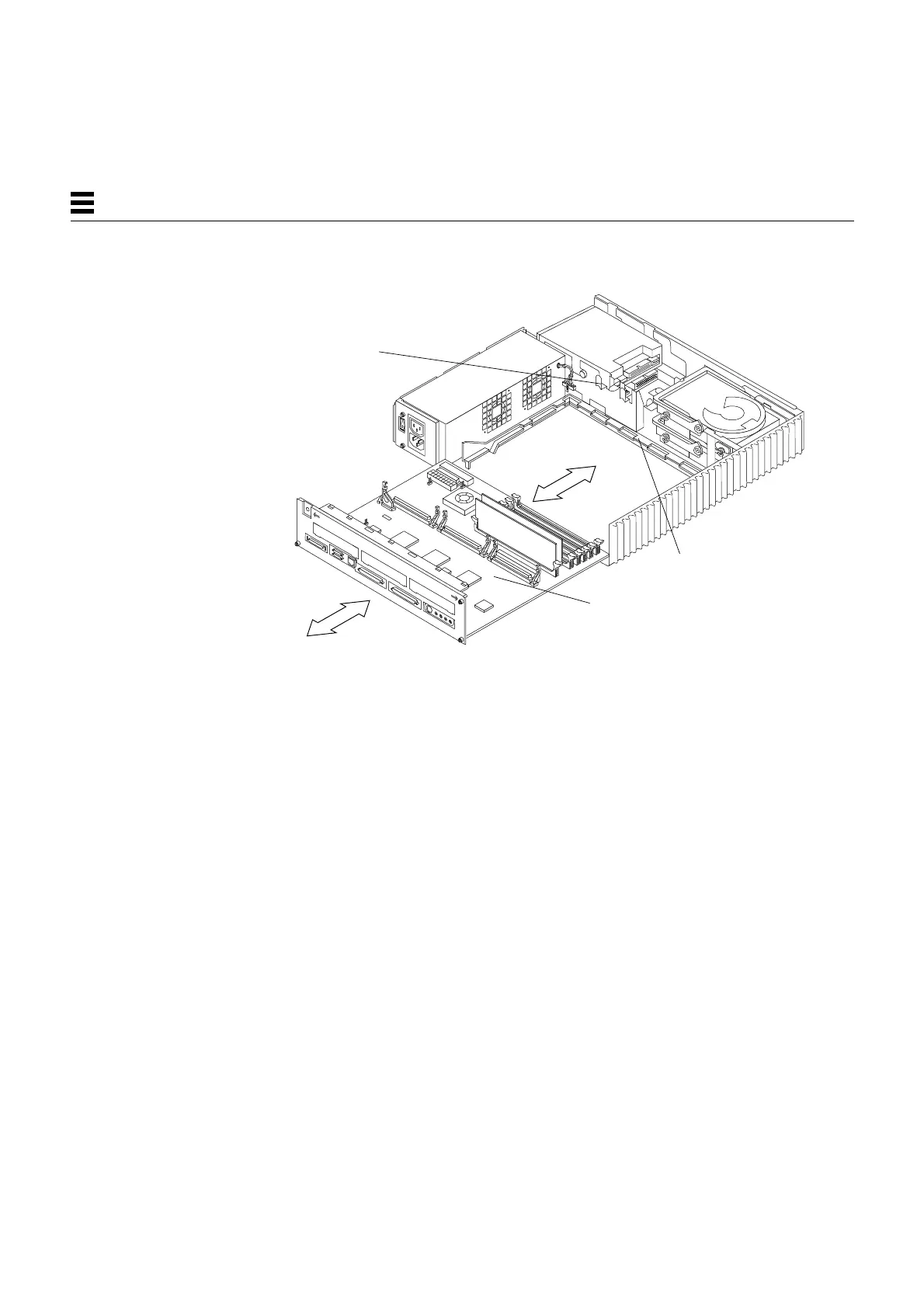

Figure 9-16 Replacing the System Board
5. Reconnect the DC power, SCSI data, diskette data, speaker/LED, and
CD-ROM audio cables to the system board.
See Figure 9-15. Thread the SCSI data cable through the metal cable clips on
the chassis wall after it is plugged in to the system board.
6. Reinstall the SBus card (if necessary).
See Section 11.1.2, “Replacing an SBus Card.”
7. Tighten the two captive Phillips screws that secure the board to the rear
of the chassis.
See Figure 9-17.
Card guide
System board
Metal cable clips
on chassis wall
