System Board and Component Replacement 11-15
11
5. To eject the faulty DSIMM, press down on the ejection levers on both
sides of the DSIMM connector.
See Figure 11-15.

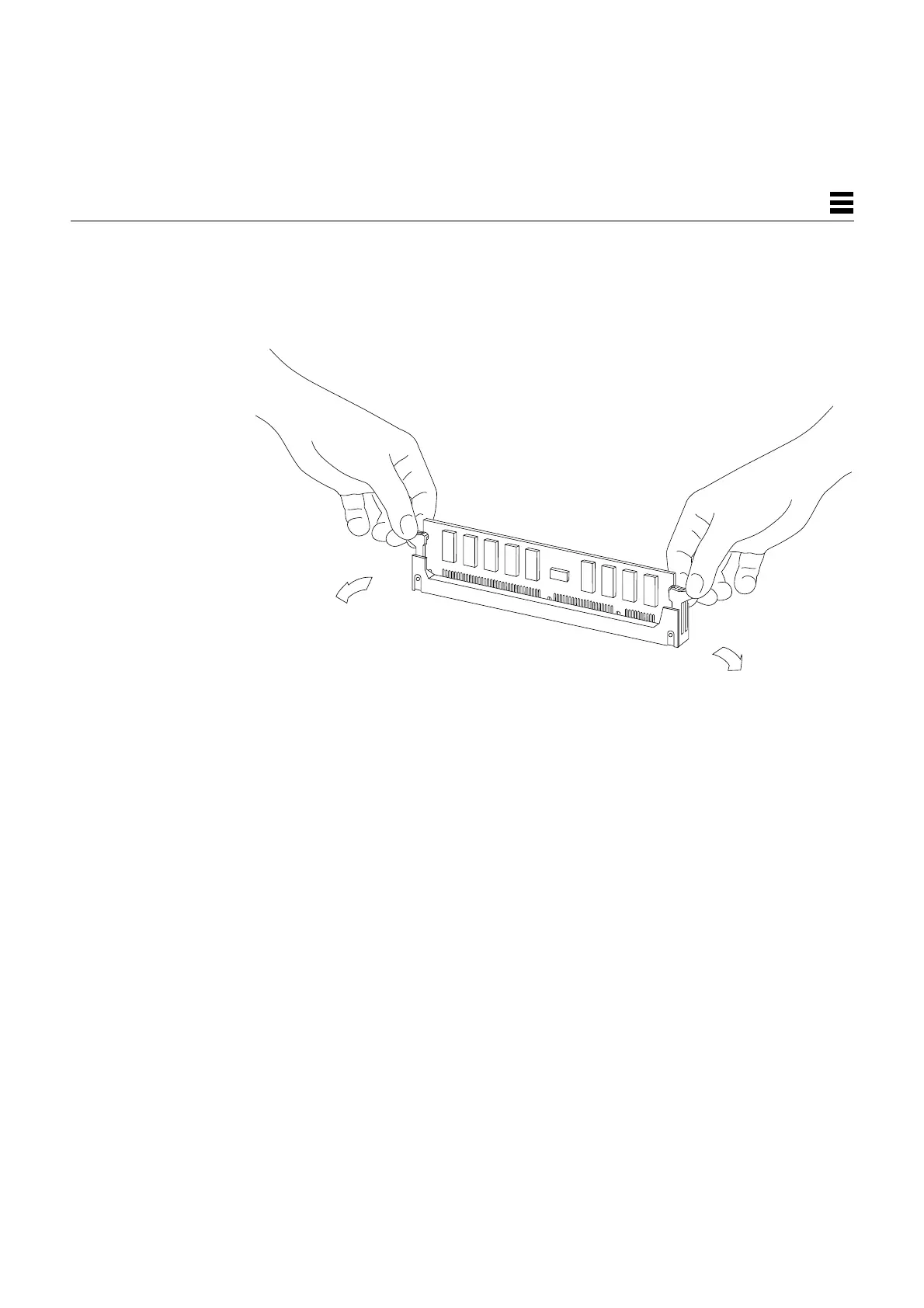

Figure 11-15 Ejecting a DSIMM
6. Holding the DSIMM by its edges, remove it from the slot and place it
on an antistatic surface.
11.3.2 Replacing a DSIMM
1. Carefully remove the new DSIMM from its protective packaging and
place it on an antistatic surface.
2. Choose any available slot and unlock (press down) the ejector levers
at both ends of the connector.
Push down ejector levers
to eject DSIMM.
