Sun Microsystems SPARCstation 5 - Figure 9-20 Removing the System Board

Storage Devices 9-23
9
6. Pull the board out of the back of the chassis until it clears the plastic
card guide.
See Figure 9-20. Place the board on an antistatic surface.

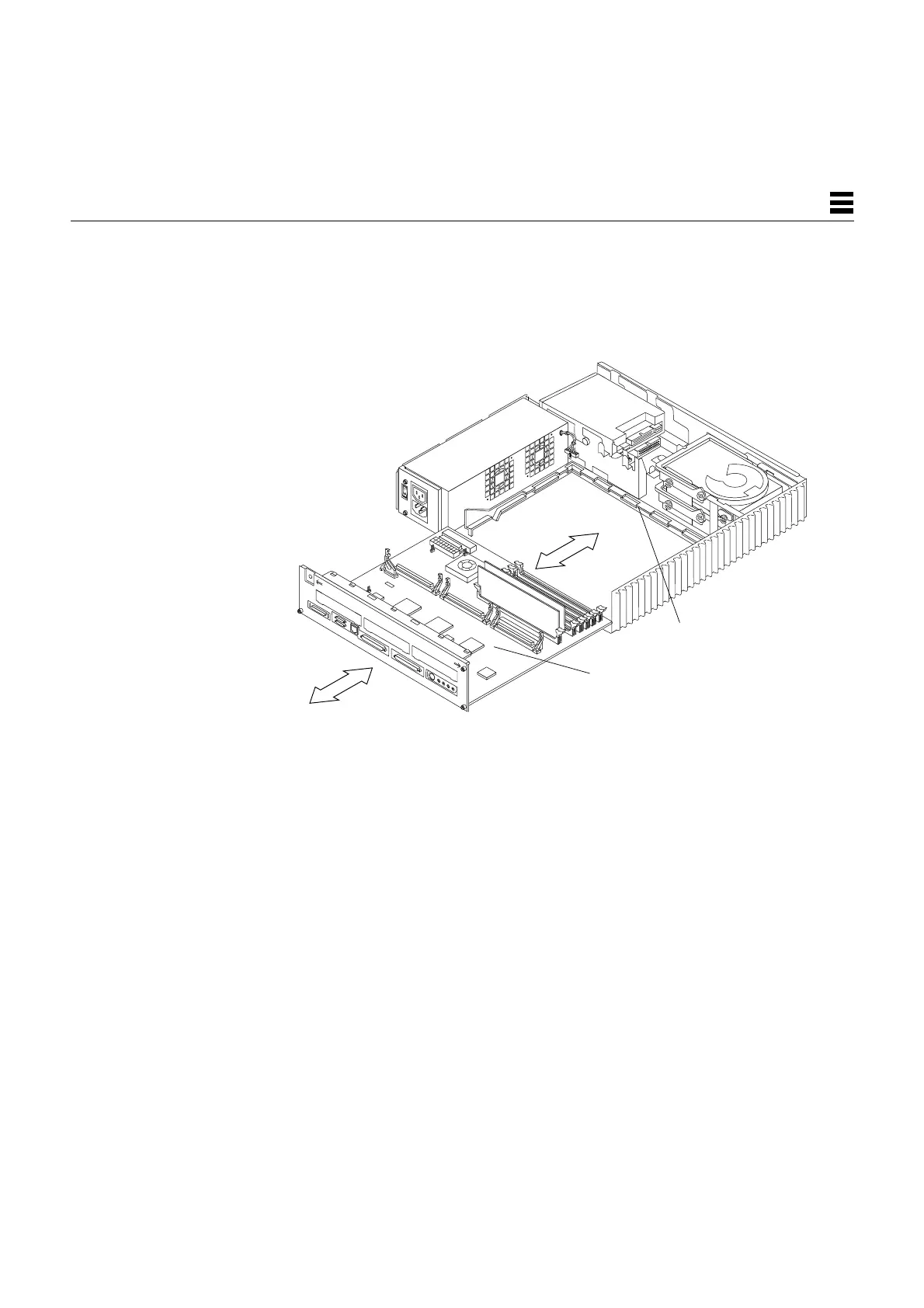

Figure 9-20 Removing the System Board
7. Remove the CD-ROM drive (if present).
See Section 9.2.1, “Removing the CD-ROM Drive.”
8. Disconnect the DC power harness from the diskette drive.
9. Free the SCSI data cable from the metal cable clips on the chassis wall
and from the card guide plastic cable clips.
See Figure 9-21.
10. Disconnect the SCSI data cable from the SCSI backplane.
See Figure 9-21.
Card guide
System board
