9-22 SPARCstation 5 Service Manual—November 1996

9

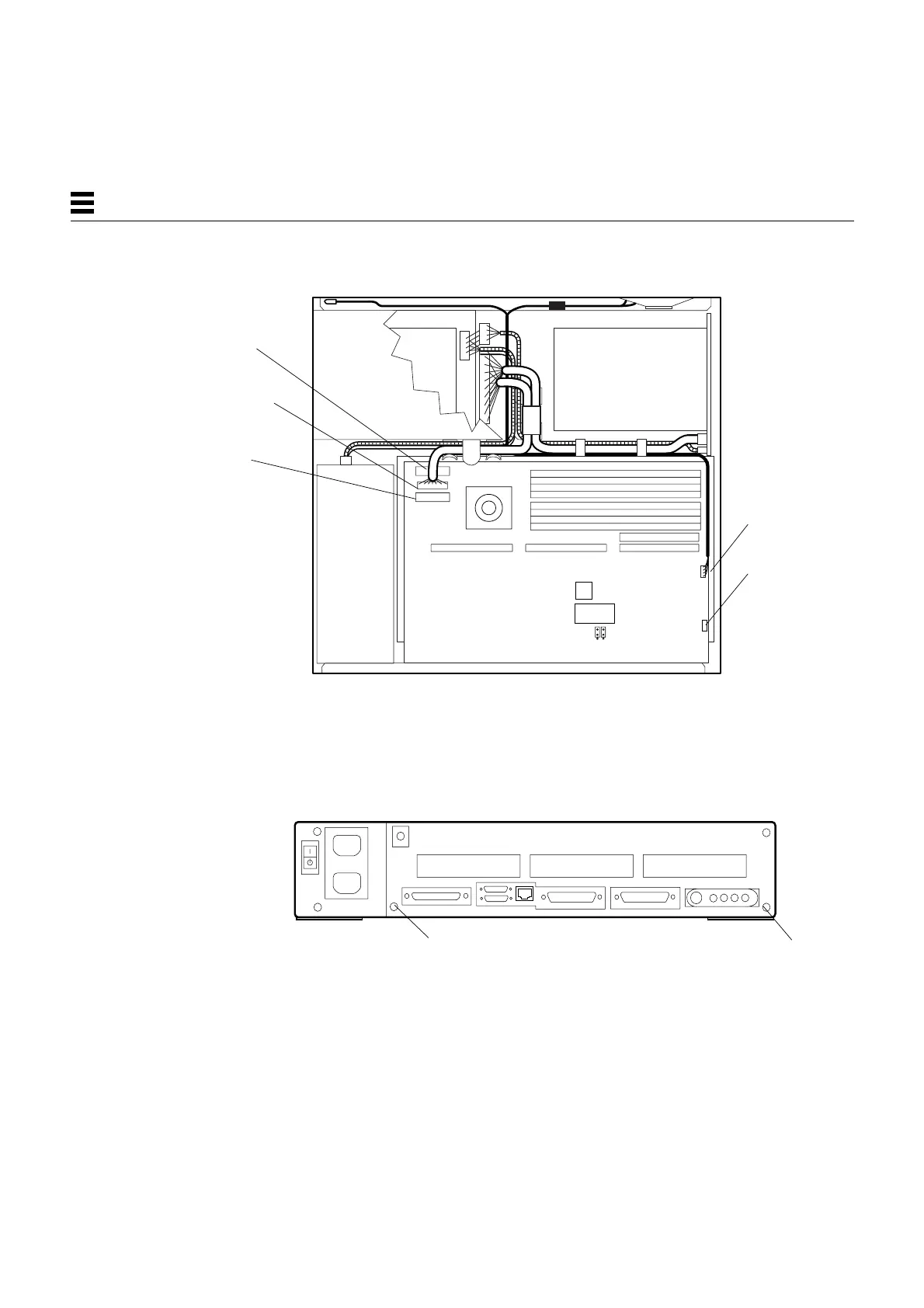

Figure 9-18 System Board Cable Connections

5. Loosen the two captive Phillips screws that secure the system board to the

rear of the chassis.

See Figure 9-19.

Figure 9-19 Rear Panel Captive Screws

Speaker/LED

Diskette data connector

connector

SCSI data connector

DC power connector

CD-ROM audio

connector

Captive screw
