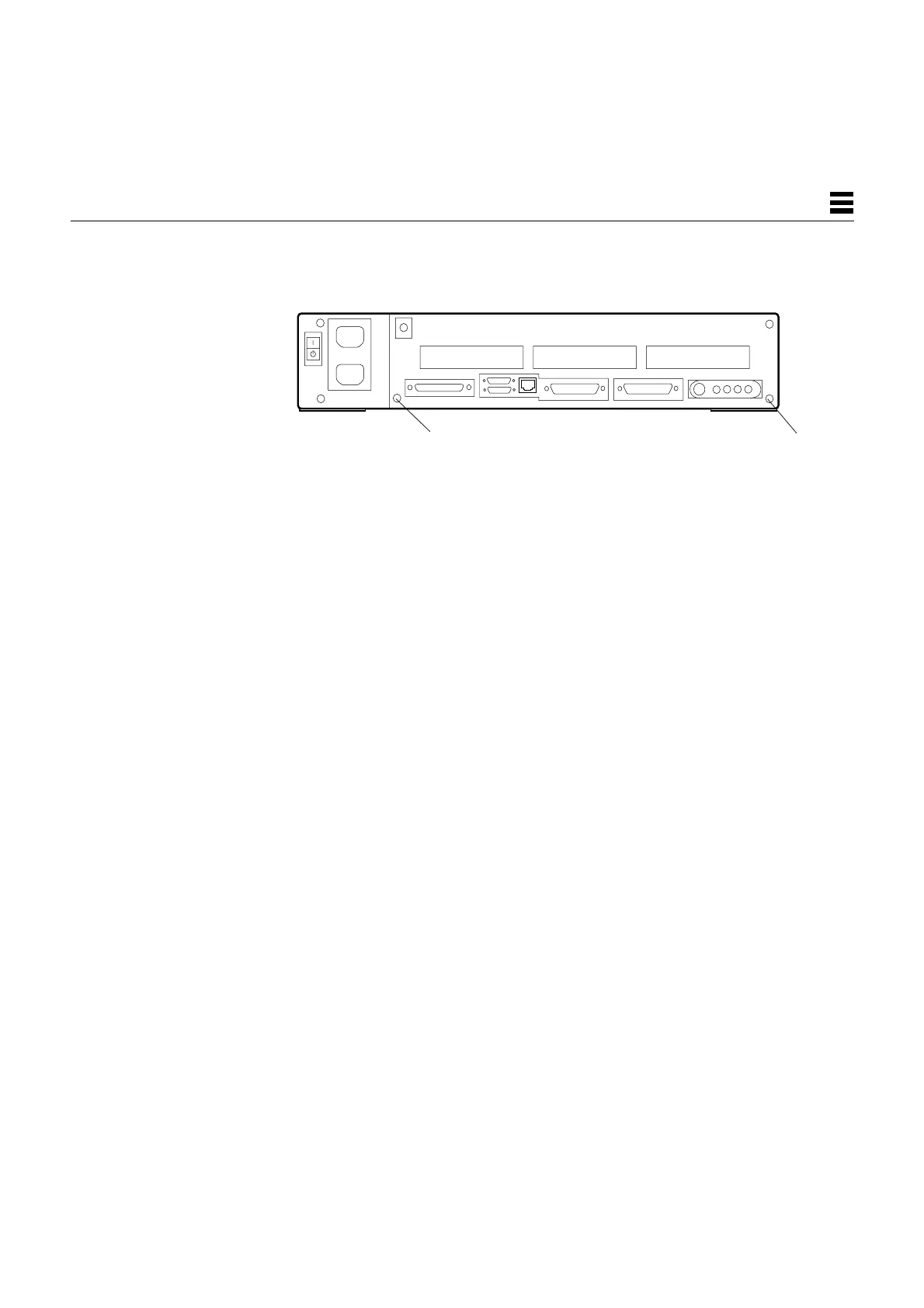

Figure 9-17 Backpanel Captive Screws
8. Detach the wrist strap and replace the cover.
See Chapter 7, “Internal Access.”
9. Reconnect all external cables to the rear panel.
10. Power on the system.
See Section 6.2, “Powering On the System.”
9.5 Peripherals DC Power Harness
9.5.1 Removing the Peripherals DC Power Harness
1. Shut down and power off the system.
See Section 6.1, “Powering Off the System.”
2. Detach all external cables from the rear panel, including the power cord.
3. Remove the cover and attach a wrist strap.
See Chapter 7, “Internal Access.”
4. Unplug the DC power, SCSI data, diskette data, speaker/LED, and
CD-ROM audio cables from the system board.
See Figure 9-18. You may need to remove an SBus card to access the audio
connector. See Section 11.1.1, “Removing an SBus Card.”
Captive screw
Captive screw
