12.1 Illustrations of Selected CRUs
Figure 12-1 through Figure 12-4 illustrate selected CRUs for the SPARCstation 5
system.

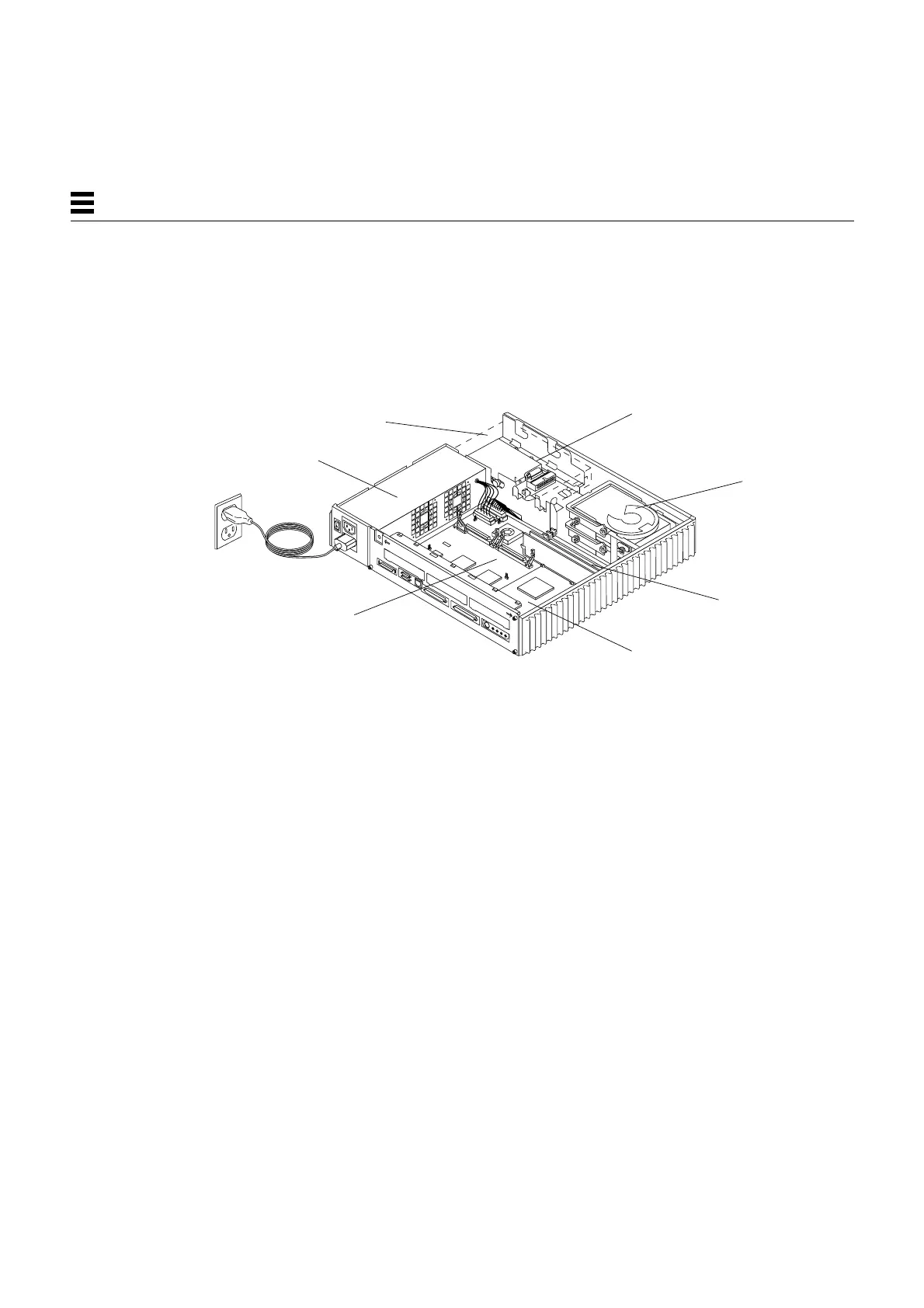

Figure 12-1 Selected CRUs in the System Unit
Hard drives
(stacked)
CD-ROM
drive (top)
Diskette drive
(bottom)
Power supply
DSIMMs
SBus card
System board
