Sun Microsystems SPARCstation 5 - Figure 11-18 System Board Cable Connections; Figure 11-19 System Board Captive Screws

System Board and Component Replacement 11-19
11

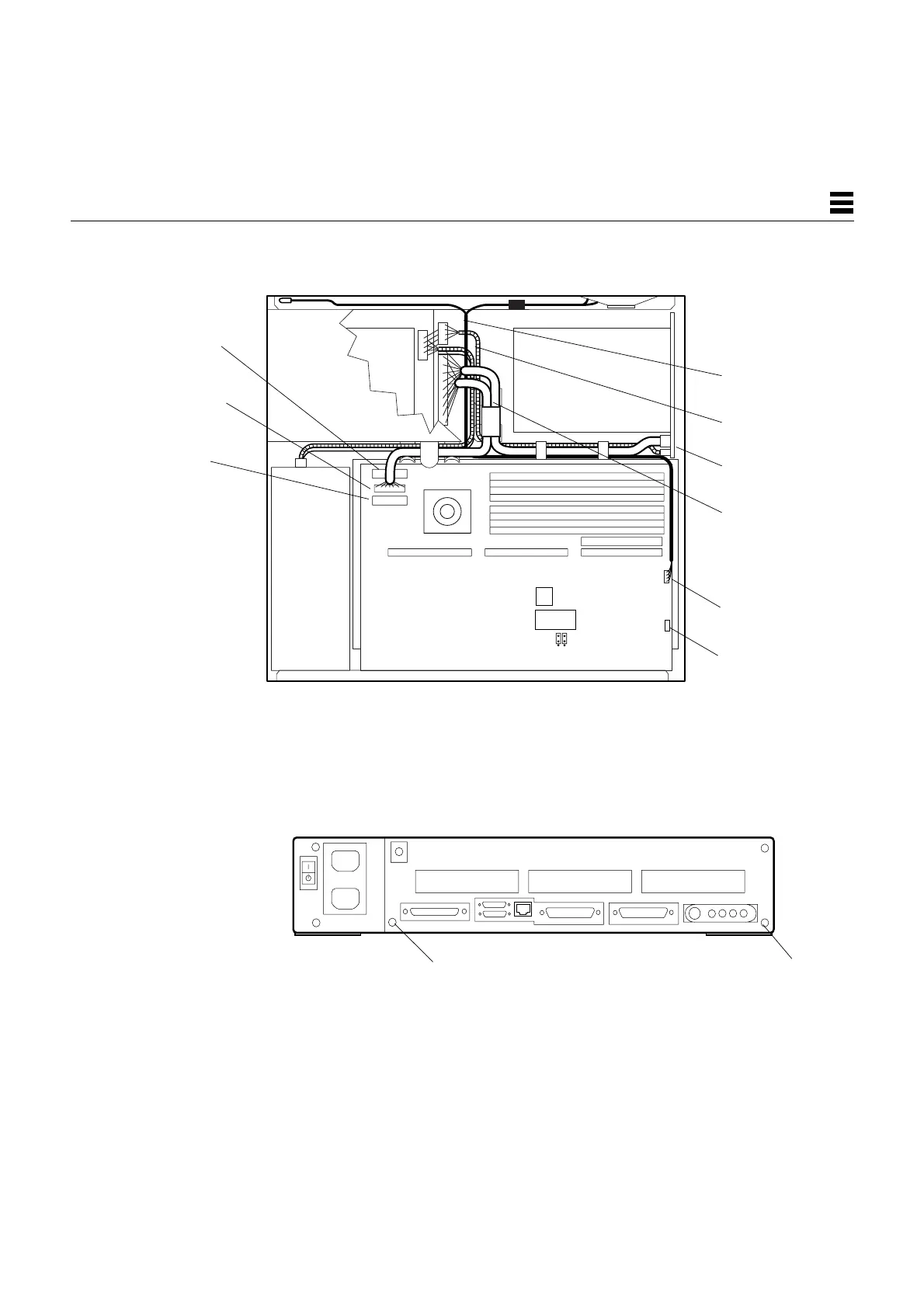

Figure 11-18 System Board Cable Connections
8. Loosen the two captive Phillips screws that secure the system board to the
rear of the chassis.
See Figure 11-19.
Figure 11-19 System Board Captive Screws
Speaker/LED
Diskette data connector
connector
SCSI data connector
DC power connector
Speaker/LED cable
SCSI data cable
DC power harness
SCSI backplane
CD-ROM audio
connector
Loosen captive screw
Loosen captive screw
