Sun Microsystems SPARCstation 5 User Manual

Input/Output Connectors B-7
B
B.6 Keyboard/Mouse Connector

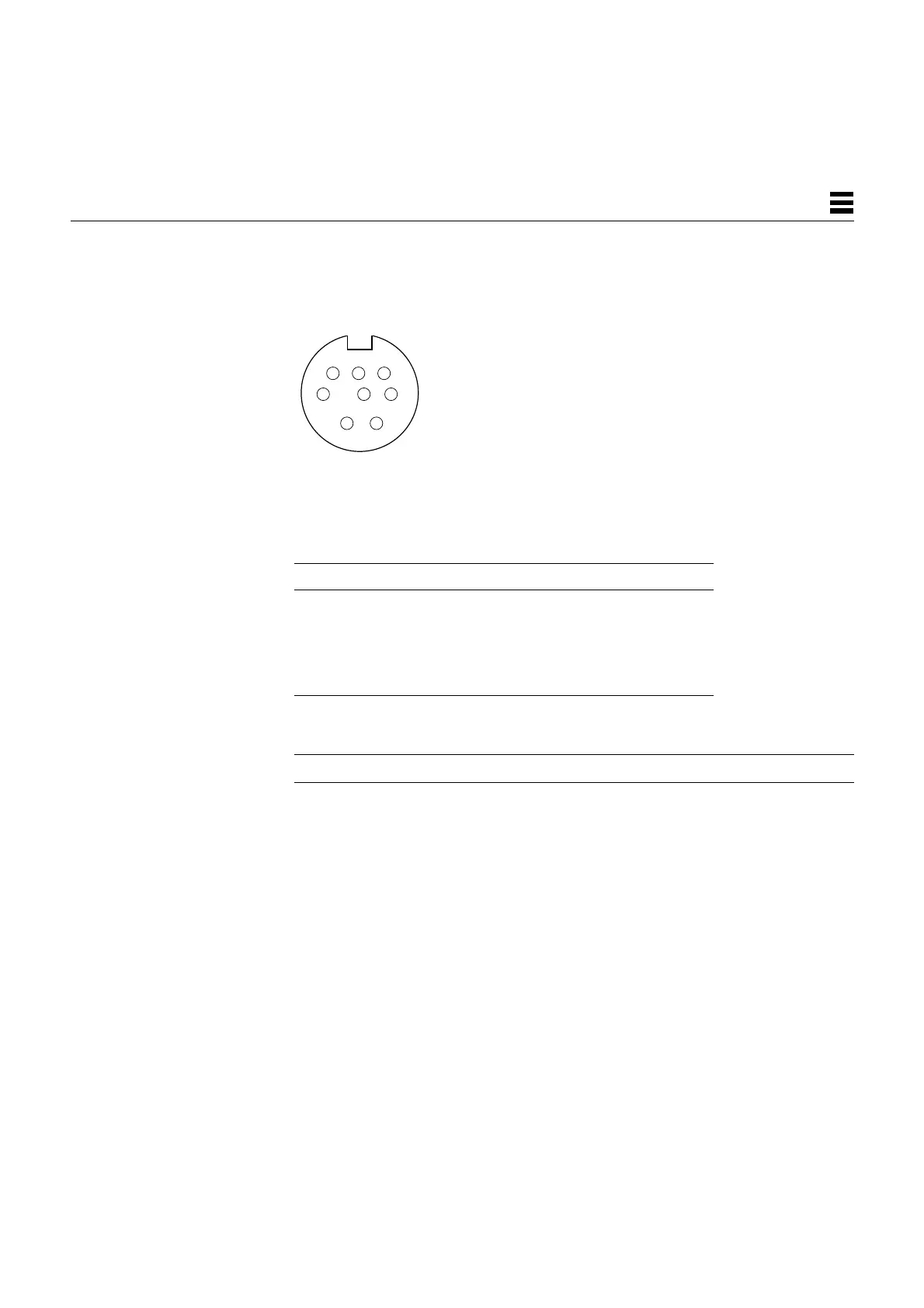

Figure B-6 Keyboard/Mouse Connector
Note – All signals are standard TTL levels. The +5V supply is fuse-protected.
Table B-6 Pinout for Keyboard/Mouse Connector
Pin Description Pin Description
1 Ground 5 Keyboard Out
2 Ground 6 Keyboard In
3 +5 Vdc 7 Power Key In
4 Mouse In 8 +5 Vdc
12
345
68
7
