5-6
COOLING
AND
LUBRICATION
SYSTEM

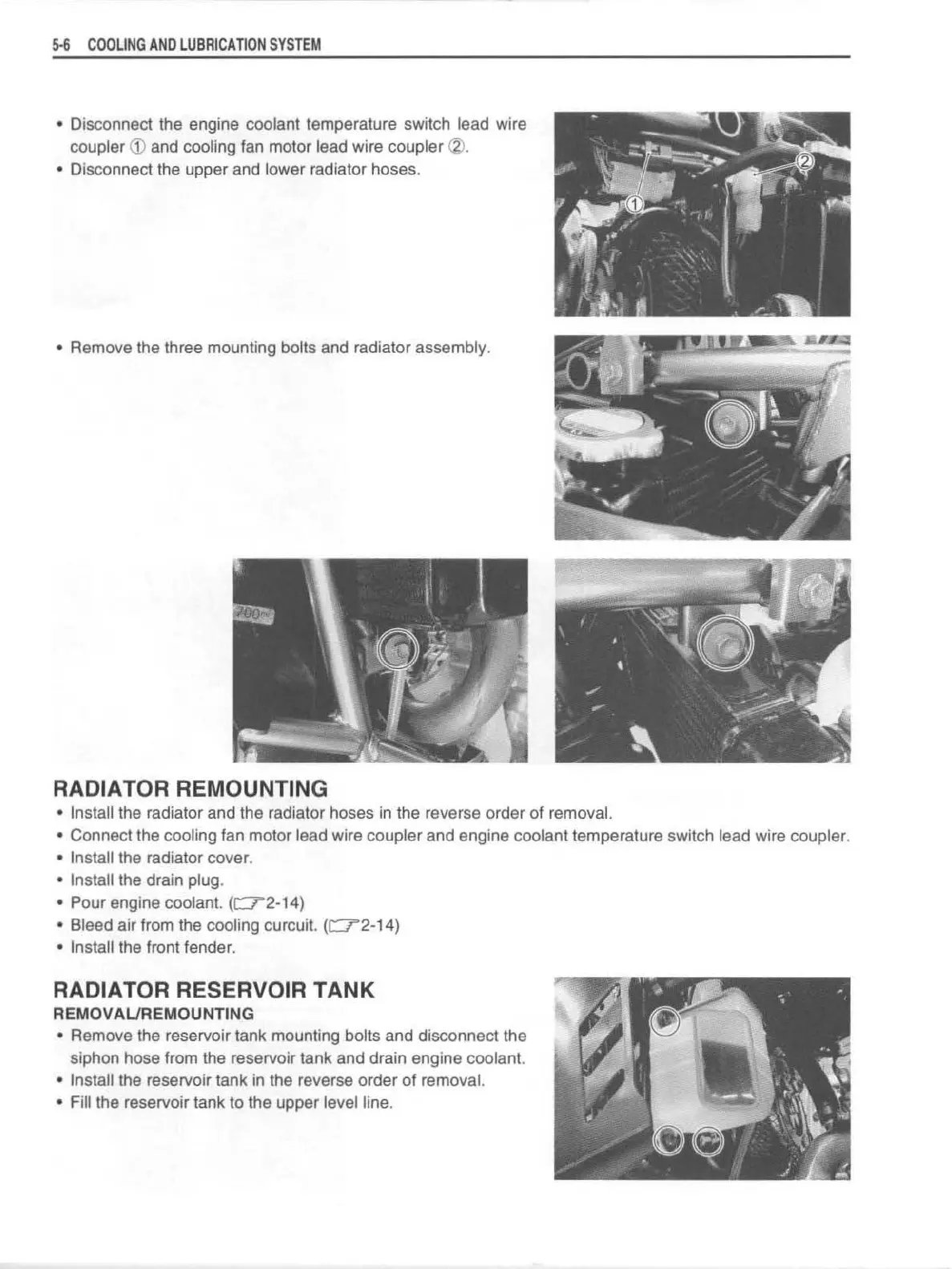

• Oisconnect the engine coolant temperature switch lead wire
coupler
<D
and cooling fan motor lead wire coupler
(2),
• Disconnect the upper and lower radiator hoses.
• Remove the three mounting bolts and radiator assembly.
RADIATOR REMOUNTING
• Install the radiator and the radiator hoses
in
the reverse order of removaL
• Connect the cooling fan molor lead wire coupler and engine coolant temperature switch lead wire coupler.
• Install the radiator cover.
• Install the drain plug.
• Pour engine coolant. (
c:r
2-14)
• Bleed
air
from the cooling curcuit. (
c:::::7"
2-14)
• Install the front fender.
RADIATOR RESERVOIR
TANK
REMOVAUREMOUNTING
• Remove the reservoir tank mounting bolts and disconnect the
siphon hose from the reservoir tank and drain engine coolant.
• Install the reservoir tank
in
the reverse order
of
removal.
• Fill
the reservoir tank to the upper level line.
