8. V-BELT DRIVING SYSTEM
8-14

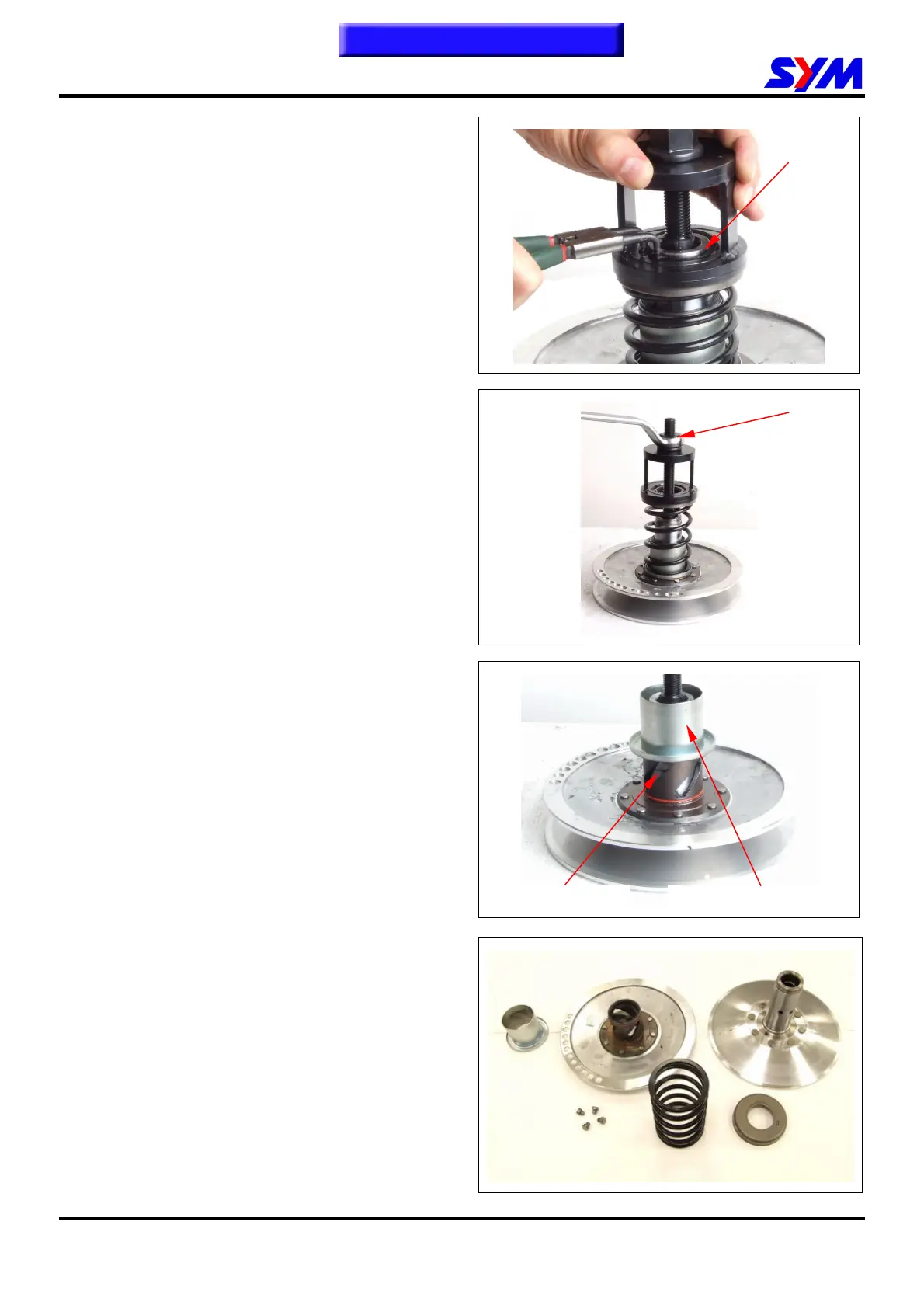

Remove cir clip with pliers.
Loosen the special tools nut
Remove the driven pulley collar and 4 roller
guides.
Remove the movable driven face.
nut
Cir clip
Drive pulley collar
4 roller guides
