16. STEERING / FRONT SUSPENSION
16-7
Knuckle

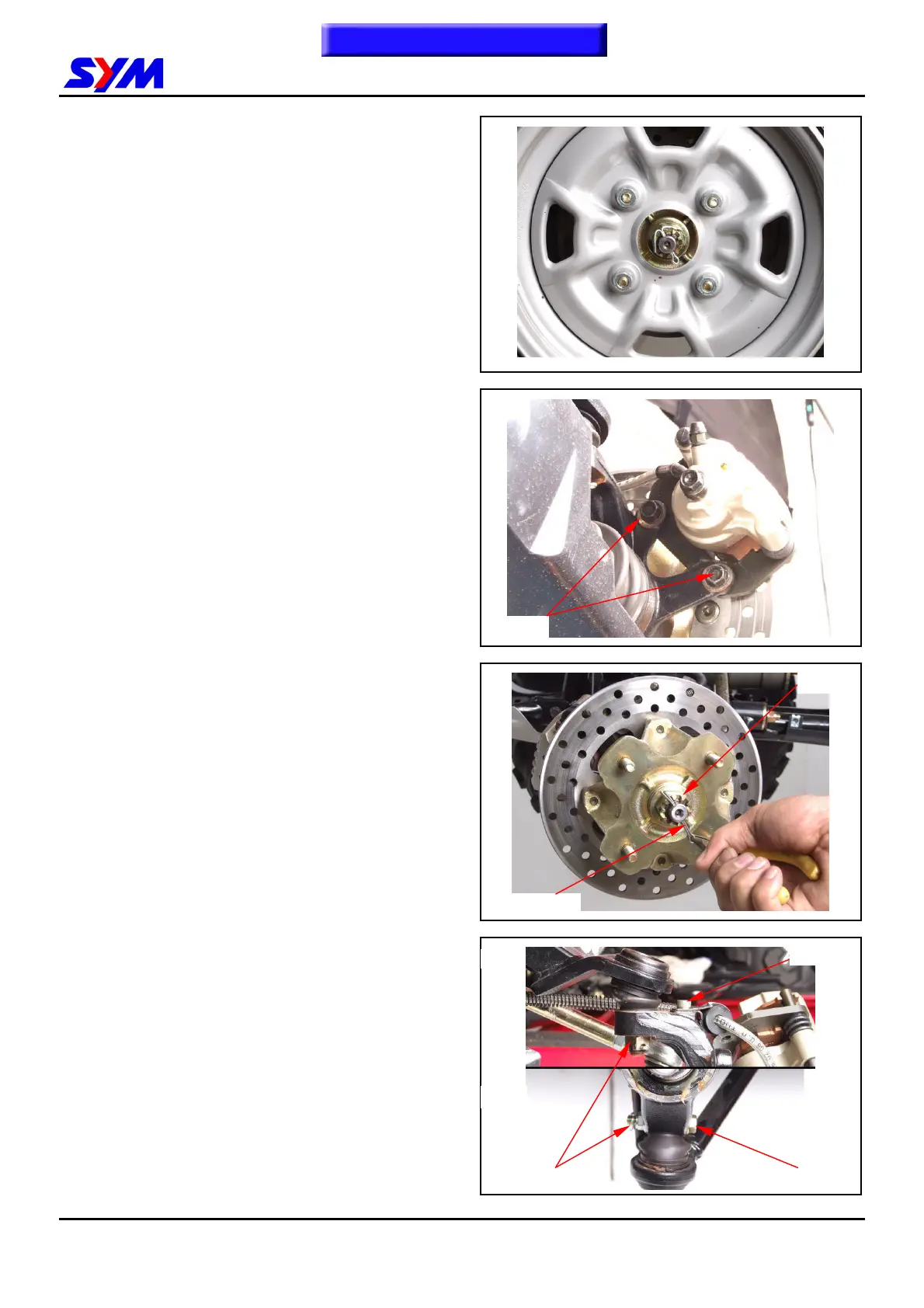

Remove
Remove front wheel, front brake caliper, front
wheel hub and brake disk.
Remove 2 bolts from front brake caliper them
remove front brake caliper
Remove cotter pin and nut, remove front brake
disk.
After tightened the nuts, install the cotter pins.
Remove cotter pin and castle nut from front upper
and lower arm suspension.
Remove 1 bolt front brake caliper clamp then
remove clamp.
To this chapter contents
Cotter pin
2 bolts
Nut
Cotter pin &
UP
LOW
Bolt
Bolt
