Sym Quad Lander 600 - Front Wheel; Front Wheel Hub

15. FRONT BRAKE & FRONT WHEEL
To this chapter contents

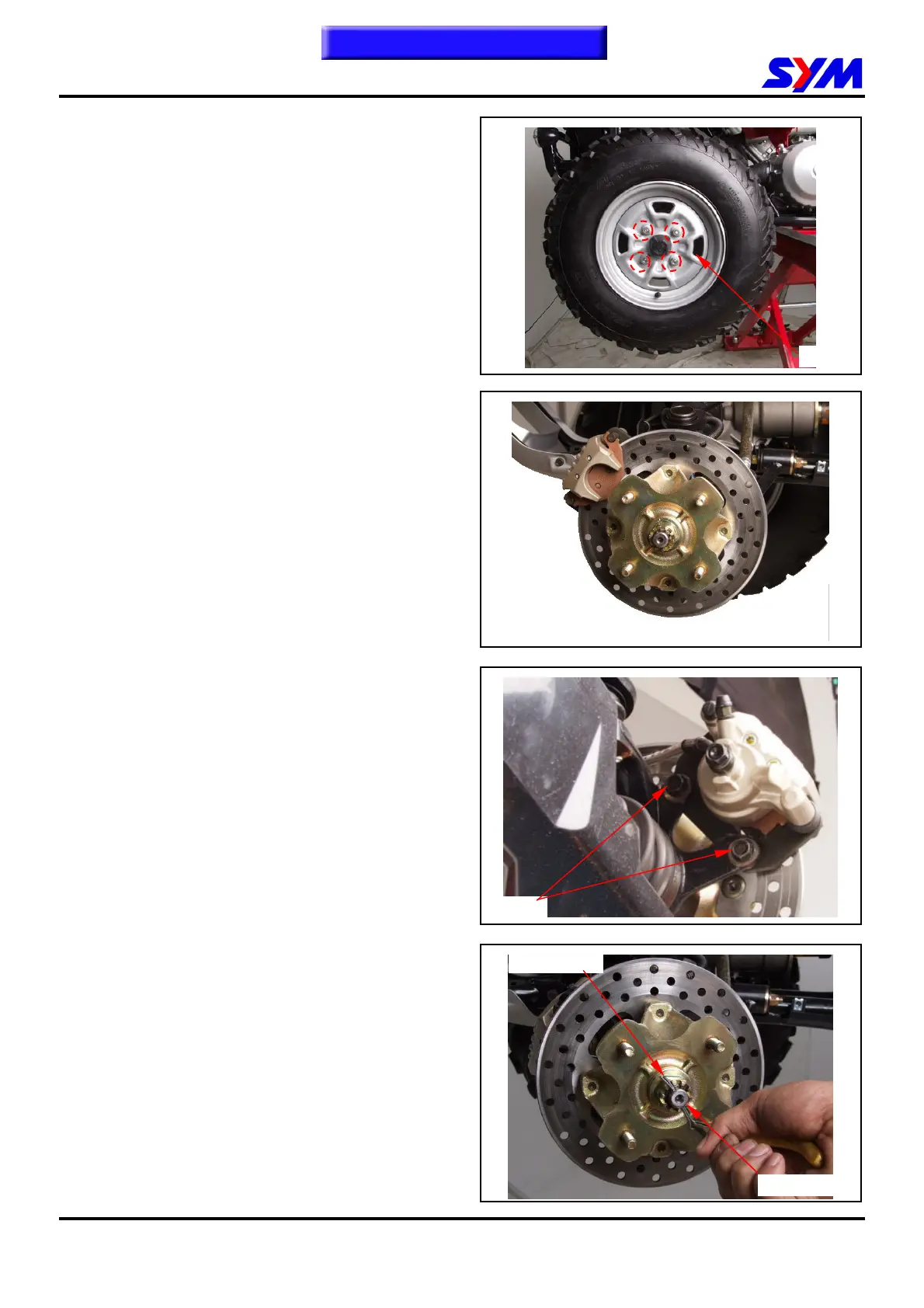

Front Wheel
Removal
Raise the front wheels off the ground by placing a
jack or other support under the frame.
Remove 4 nuts from the front wheel.
Remove the front wheel.
Installation
Install the front wheel and tighten the nuts.
Torque: 2.4kgf-m
Front Wheel Hub
Removal
Remove front brake caliper (2 bolts).
Remove cotter pin, wheel hub nut and washer.
Remove wheel hub and brake disk.
4 nuts
Wheel hub nut
Cotter pin
2 bolts
15-4
