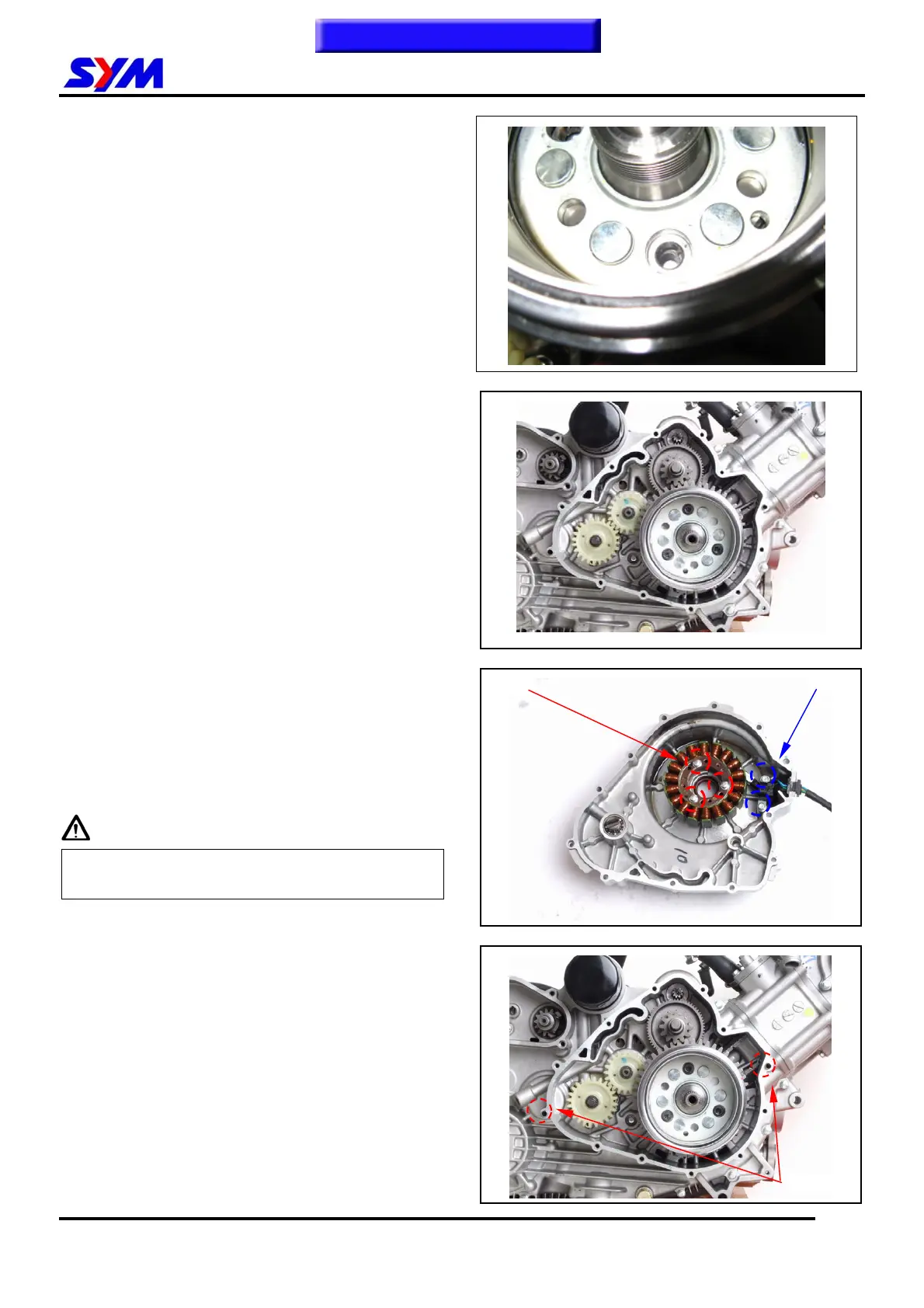

11. A.C. GENERATOR/STARTING CLUTCH
11-8
Screw in the three flywheel bolts evenly
Torque value: 1.0~1.4kgf-m.
Rotate the flywheel to make sure it is installed well
and works properly.
A.C. Generator Installation
Install the A.C. Generator stator set onto right
crankcase cover (3 screws).
Install the pulse generator (2 screws).
Tie the wire harness securely onto the indent of
crankcase.
Caution
Make sure that the wire harness is placed under
pulse generator.
Right Crankcase Cover Installation
Install the dowel pin and new gasket.
2 bolts
3 bolts
Dowel pin
